Aker安基邀您选择优质的石英晶体编码C1E-32.000-10-1530-X-R

来源:http://www.yijindz.com 作者:lvvi 2023年06月15

Aker安基邀您选择优质的石英晶体编码C1E-32.000-10-1530-X-R,在开发电子组件时,其中一个步骤包括选择合适的频率控制产品。开始时的基本问题是安装石英晶体还是振荡器。为了做出正确的决定,需要考虑几个参数。这些包括应用、设备或行业的许多不同要求。除了空间要求、频率稳定性和专业知识之外,开发成本也起着重要作用。
石英晶体还是振荡器?这就是问题所在!在下文中,我们将更深入地了解一个组件或另一个组件是更好选择的情况:
当石英晶体是正确的选择时
“答石英晶体最适合开发人员想要构建自己的电子振荡器,允许他们调整或优化所有相关参数的时候。这当然需要一定的努力:电子振荡器必须构建并适应石英晶体谐振器,以确保在整个工作温度范围内的振荡稳定性和凝聚力,”Aker公司产品经理解释道。石英石英编码C1E-32.000-10-1530-X-R就很适合选择使用各个领域之中,例如,电路元件包括电容器,必须选择电容器,以便实现石英晶体的特定负载能力。如果不是这种情况,可能会出现与额定频率相当大的偏差。因此,必须事先明确定义石英晶体的规格,以避免频率偏差。
然而,由于石英晶体比晶体振荡器便宜,所以它们是更大数量的更好选择。此外,电路板上必须有足够的空间:带电路的压电晶体比晶体振荡器需要更多的空间。

型号 进口晶振供应商 类型 说明
C2E-16.000-10-1530-X-R Aker Technology 石英晶体 Crystal 16MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-40.000-10-1530-X-R Aker Technology 石英晶体 Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R
C1E-48.000-10-1530-X-R Aker Technology 石英晶体 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R
C1E-30.720-10-1530-X-R Aker Technology 石英晶体 Crystal 30.72MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R
C3E-27.000-10-1530-X-R Aker Technology 石英晶体 Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-27.120-10-1530-X-R Aker Technology 石英晶体 Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-30.000-12-1530-X-R Aker Technology 石英晶体 Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm 4-Pin SMD T/R
C1E-24.576-10-1530-X-R Aker Technology 石英晶体 Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R
C7S-6.000-10-1530-X-R Aker Technology 石英晶体 Crystal 6MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 110Ohm 4-Pin SMD T/R
C2E-25.000-10-1530-X-R Aker Technology 石英晶体 Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-36.000-12-1530-X-R Aker Technology 石英晶体 Crystal 36MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R
C5S-8.000-10-1530-X-R Aker Technology 石英晶体 Crystal 8MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 150Ohm Automotive 4-Pin SMD T/R
C3E-18.432-10-1530-X-R Aker Technology 石英晶体 Crystal 18.432MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C2E-24.000-10-1530-X-R Aker Technology 石英晶体 Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-44.000-10-1530-X-R Aker Technology 石英晶体 Crystal 44MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R
C3E-48.000-10-1530-X-R Aker Technology 石英晶体 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R
C16-32.000-10-1530-X-R Aker Technology 石英晶体 Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-26.000-10-1530-X-R Aker Technology 石英晶体 Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-20.480-12-1530-X-R Aker Technology 石英晶体 Crystal 20.48MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R
C2E-20.000-10-1530-X-R Aker Technology 石英晶体 Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-40.000-12-1530-X-R Aker Technology 石英晶体 Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm 4-Pin SMD T/R
C1E-38.400-10-1530-X-R Aker Technology 石英晶体 Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R
C3E-16.000-8-50100-X1-R Aker Technology 石英晶体 Crystal 16MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R
C3E-30.000-10-1530-X-R Aker Technology 石英晶体 Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R
C7S-8.000-10-1530-X-R Aker Technology 石英晶体 Crystal 8MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 110Ohm 4-Pin SMD T/R
C3E-12.000-8-50100-X1-R Aker Technology 石英晶体 Crystal 12MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R
C2E-32.000-10-1530-X-R Aker Technology 石英晶体 Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R
C1E-48.000-12-1530-X-R Aker Technology 石英晶体 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm 4-Pin SMD T/R
C1E-30.720-12-1530-X-R Aker Technology 石英晶体 Crystal 30.72MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R
C3E-12.000-10-1530-X-R Aker Technology 石英晶体 Crystal 12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-33.000-10-1530-X-R Aker Technology 石英晶体 Crystal 33MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R
C1E-25.000-10-1530-X-R Aker Technology 石英晶体 Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C2E-27.000-10-1530-X-R Aker Technology 石英晶体 Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-20.000-10-1530-X-R Aker Technology 石英晶体 Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-54.000-12-1530-X-R Aker Technology 石英晶体 Crystal 54MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm Automotive 4-Pin SMD T/R
C3E-54.000-10-1530-X-R Aker Technology 石英晶体 Crystal 54MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R
C1E-24.000-10-1530-X-R Aker Technology 石英晶体 Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-31.250-10-1530-X-R Aker Technology 石英晶体 Crystal 31.25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R
C3E-20.000-10-1530-X-R Aker安基晶振 石英晶体 Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-37.400-10-1530-X-R Aker Technology 石英晶体 Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R
C2E-30.000-10-1530-X-R Aker Technology 石英晶体 Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R
C7S-10.000-10-1530-X-R Aker Technology 石英晶体 Crystal 10MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 110Ohm 4-Pin SMD T/R
C1E-26.000-12-1530-X-R Aker Technology 石英晶体 Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R
C16-24.000-10-1530-X-R Aker Technology 石英晶体 Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 120Ohm 4-Pin SMD T/R
C1E-50.000-10-1530-X-R Aker Technology 石英晶体 Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R
C3E-27.000-8-50100-X1-R Aker Technology 石英晶体 Crystal 27MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R
C1E-30.000-10-1530-X-R Aker Technology 石英晶体 Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R
C1E-25.000-12-1530-X-R Aker Technology 石英晶体 Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R
C2E-48.000-10-1530-X-R Aker Technology 石英晶体 Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R
C1E-36.000-10-1530-X-R Aker Technology 石英晶体 Crystal 36MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R
C16-40.000-10-1530-X-R Aker Technology 石英晶体 Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R
C1E-32.000-10-1530-X-R Aker Technology 石英晶体 Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R
C5S-12.000-10-1530-X-R Aker Technology 石英晶体 Crystal 12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 90Ohm 4-Pin SMD T/R
C1E-27.120-12-1530-X-R Aker Technology 石英晶体 Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R
C3E-32.000-10-1530-X-R Aker Technology 石英晶体 Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 50Ohm 4-Pin SMD T/R
C3E-24.000-10-1530-X-R Aker Technology 石英晶体 Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C2E-40.000-10-1530-X-R Aker Technology 石英晶体 Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R
C1E-27.000-10-1530-X-R Aker Technology 石英晶体 Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R
C1E-38.400-12-1530-X-R Aker Technology 石英晶体 Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm 4-Pin SMD T/R
C1E-32.000-8-1515-R Aker Technology 石英晶体 Crystal 32MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 80Ohm 4-Pin SMD T/R
C1E-38.400-10-1010-R Aker Technology 石英晶体 Crystal 38.4MHz ±10ppm (Tol) ±10ppm (Stability) 10pF FUND 60Ohm Automotive T/R
完美协调的完整解决方案:晶体振荡器

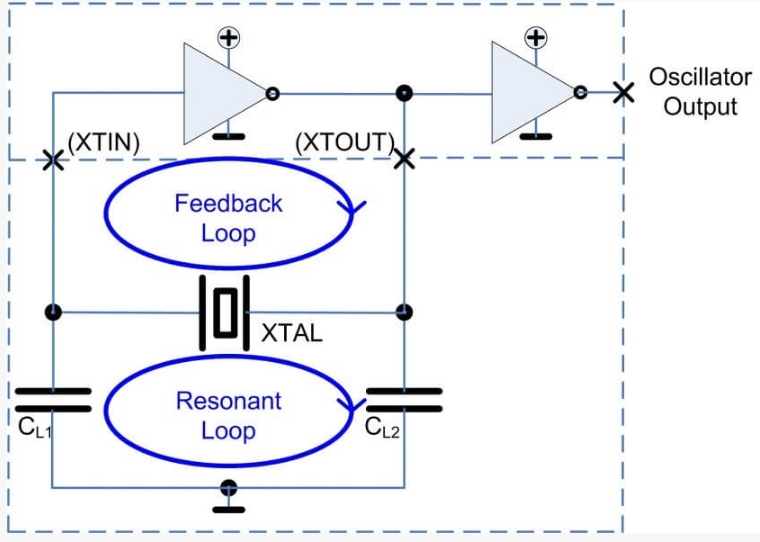

当使用振荡器内部安装电路的所有元件已经完全匹配。与带电路的贴片石英晶体相比,振荡器通常占用更少的空间。振荡器总是包含一个频率控制元件,在我们的例子中是一个石英晶体。这是插入到皮尔斯电路,导致石英晶体振荡。Aker安基邀您选择优质的石英晶体编码C1E-32.000-10-1530-X-R.

因此,振荡器是最节省空间的选择:一切都很紧凑,内置在一个组件中,开发人员不必围绕压电晶体设计电路。该元件特别适用于小批量生产,因为它消除了耗时的电路元件优化和调谐的需要。
振荡器的另一个优点是,当使用进口石英晶体时,面积与厚度之比不能低于某个值。如果不保持这个比例,它将对电参数产生负面影响。这意味着低频(10MHz以下)不再能在更小的设计中处理。这一限制不适用于振荡器,因为振荡器内部有一个IC。这同样适用于频率更高的电路,石英晶体也能更快地达到其物理极限。由于内置IC,还可以通过温度进行补偿(TCXOs)。这允许开发者有更多的操作空间,以满足相应应用程序及其外部影响的要求。这种偏差还允许±0.05ppm的频率稳定性。最好的情况下,石英晶体的含量低于百万分之+-10。
