首页晶振行业动态 微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振

微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振

来源:http://www.yijindz.com 作者:亿金电子 2023年06月08

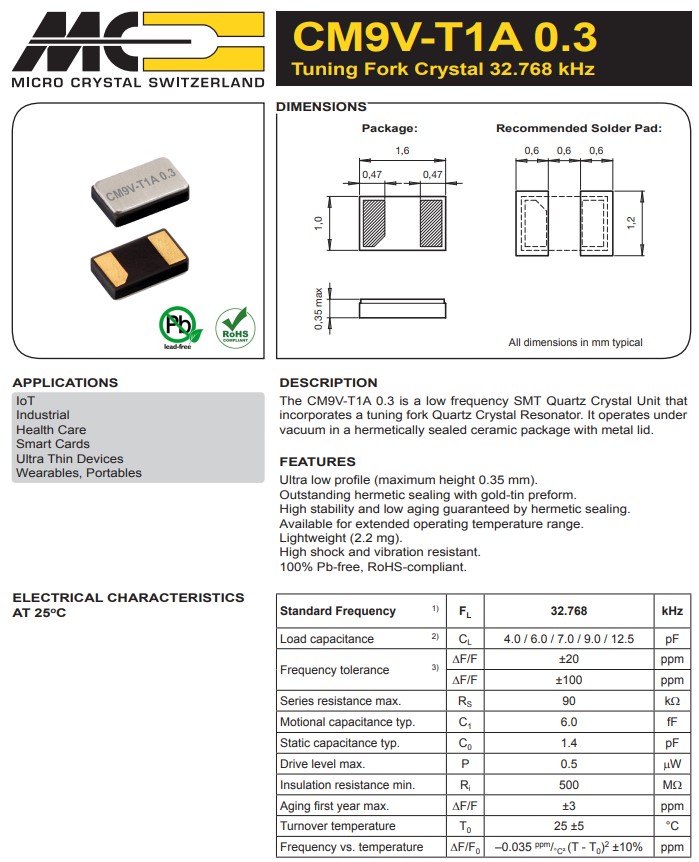

瑞士Microcrystal微晶超低功率、低电压解决方案提供商推出小型化的下一步:CM9V-T1A 0.3:32.768KHz石英晶体,小体积尺寸仅为1.6x1.0mm两脚晶振,超薄型(最大高度0.35毫米)重量轻(2.2毫克),无源晶振,石英晶体谐振器,石英晶体,密封保证了高稳定性和低老化,适用于扩展的工作温度范围,这种新的微小几何形状增强了弯曲半径至关重要的应用中的电路,32.768K贴片晶振系列已在全球数千种应用中取得了良好的成绩。 高抗冲击和振动,100%无铅,符合RoHS标准,非常适合应用于:可穿戴设备、物联网、工业、汽车、医疗保健和消费电子,智能卡,小型便捷式设备,手提式打字机,物联网,产业的,卫生保健。微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振

微晶晶振 制造商零件编号 描述 频率
Micro Crystal CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-9pF-20PPM-TB-QA  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-20PPM-TA-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-100PPM-TB-QA  32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TB-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC  32.768 kHz 9.0 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC  32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-7pF-20PPM-TC-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TC-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC  32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768k
Micro Crystal CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC  32.768 kHz 7.0 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM 0.3mm 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC  32.768 kHz 9.0 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC  32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC  32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC  32.768 kHz 7.0 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA  32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
石英晶振 CM7V-T1A-32.768k-9pF-20PPM-TA-QA  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC  32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA  32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC  32.768 kHz 9.0 pF +/-10 PPM -40/+125C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC  32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC  32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC  32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA  32.768 kHz 9.0 pF +/-20 PPM LOW ESR 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-100PPM-TC-QA  32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 32.768 kHz
Micro Crystal CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC  32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-6pF-20PPM-TB-QA  32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA  32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz
Micro Crystal CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3  32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz

微晶超小型晶体CM9V-T1A0.332.768kHz9.0pF±20ppmTBQC可穿戴设备专用晶振,Micro Crystal AG公司于1978年在瑞士格伦兴成立,是一家生产手表音叉晶体的公司。如今,Micro Crystal AG是微型石英晶体(30kHz至250MHz)、时钟晶体谐振器,实时时钟(RTC)模块、振荡器和OCXOs的领先制造商,为全球领先的物联网、可穿戴、汽车、工业和医疗应用制造商提供服务。
