首页晶振行业动态 小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用

小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用

来源:http://www.yijindz.com 作者:亿金电子 2022年09月26
EPSON晶振发展成立至今成为国际赫赫有名的电子元件制造商,不仅为用户提供优异的石英晶振,贴片晶振,TCXO晶振,时钟晶体振荡器等产品,同时致力于为用户提供高可靠技术解决方案.为了更好的服务全球用户,爱普生晶振的生产销售据点遍布日本,马来西亚,苏州,泰国等国家.

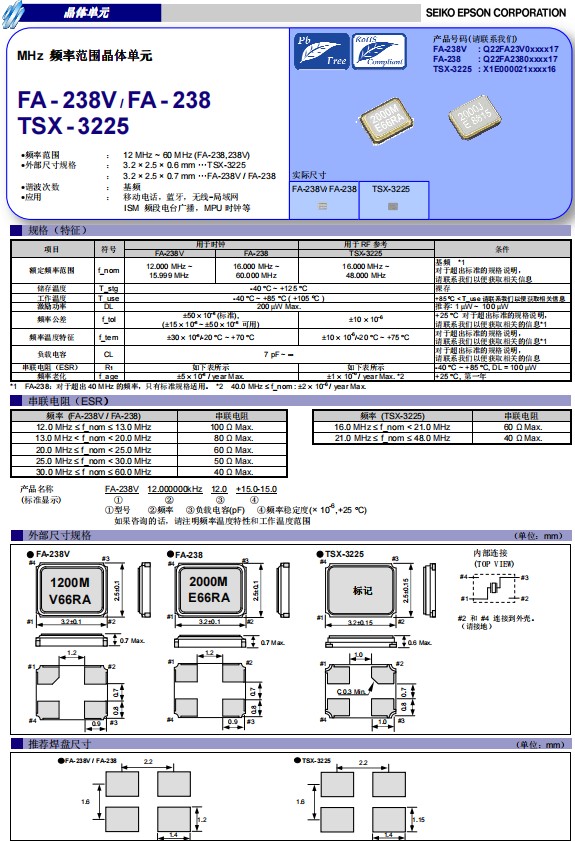

日本进口爱普生晶振FA-238V是一款小体积晶振尺寸3.2x2.5mm四脚贴片晶振,无源晶振,石英晶体谐振器,FA-238V频率范围12MHz至15.9999MHz之间,可以在-40℃至+85℃(+105℃)温度内稳定工作,该产品具有小体积轻薄型,耐热、耐振、耐冲击等优良的耐环境特性,被广泛用于移动通讯,智能手机,平板电脑,汽车电子,移动电话,无线蓝牙,ISM频段电台广播,MPU时钟等.
小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用,Q22FA23V0038500,爱普生晶振

产品编码 爱普生晶振 型号 频率 负载电容 精度
Q22FA23V0001200 3.2x2.5x0.7mm FA-238V 13.560000MHz 12pF +/-50ppm
Q22FA23V0001800 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-50ppm
Q22FA23V0002200 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-30ppm
Q22FA23V0002600 3.2x2.5x0.7mm FA-238V 13.000000MHz 10pF +/-50ppm
Q22FA23V0002700 3.2x2.5x0.7mm FA-238V 14.745600MHz 20pF +/-50ppm
Q22FA23V0002800 3.2x2.5x0.7mm FA-238V 12.000000MHz 15pF +/-50ppm
Q22FA23V0002900 3.2x2.5x0.7mm FA-238V 13.000000MHz 20pF +/-50ppm
Q22FA23V0003000 3.2x2.5x0.7mm FA-238V 13.000000MHz 20pF +/-30ppm
Q22FA23V0003300 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-30ppm
Q22FA23V0003700 3.2x2.5x0.7mm FA-238V 14.318180MHz 20pF +/-50ppm
Q22FA23V0004400 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-50ppm
Q22FA23V0004800 3.2x2.5x0.7mm FA-238V 13.000000MHz 7pF +/-50ppm
Q22FA23V0005200 3.2x2.5x0.7mm FA-238V 13.560000MHz 10pF +/-50ppm
Q22FA23V0006800 3.2x2.5x0.7mm FA-238V 14.318000MHz 12pF +/-50ppm
Q22FA23V0006900 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-15ppm
Q22FA23V0008200 3.2x2.5x0.7mm FA-238V 14.318180MHz 16pF +/-50ppm
Q22FA23V0008500 3.2x2.5x0.7mm FA-238V 12.288000MHz 8pF +/-50ppm
Q22FA23V0008600 3.2x2.5x0.7mm FA-238V 14.745600MHz 12pF +/-50ppm
Q22FA23V0009500 3.2x2.5x0.7mm FA-238V 12.000000MHz 16pF +/-50ppm
Q22FA23V0010300 3.2x2.5x0.7mm FA-238V 14.318180MHz 12.5pF +/-30ppm
Q22FA23V0010600 3.2x2.5x0.7mm FA-238V 12.000000MHz 11pF +/-30ppm
Q22FA23V0010700 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-50ppm
Q22FA23V0011400 3.2x2.5x0.7mm FA-238V 14.318180MHz 18pF +/-50ppm
Q22FA23V0011900 3.2x2.5x0.7mm FA-238V 12.500000MHz 16pF +/-50ppm
Q22FA23V0012300 3.2x2.5x0.7mm FA-238V 13.560000MHz 12pF +/-20ppm
Q22FA23V0013100 3.2x2.5x0.7mm FA-238V 12.000000MHz 18pF +/-50ppm
Q22FA23V0013600 3.2x2.5x0.7mm FA-238V 12.000000MHz 8pF +/-50ppm
Q22FA23V0014400 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-15ppm
Q22FA23V0014900 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-30ppm
Q22FA23V0015000 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-10ppm
Q22FA23V0016000 3.2x2.5x0.7mm FA-238V 12.000000MHz 16pF +/-30ppm
Q22FA23V0016200 3.2x2.5x0.7mm FA-238V 12.288000MHz 10pF +/-50ppm
Q22FA23V0016400 3.2x2.5x0.7mm FA-238V 14.318180MHz 9pF +/-50ppm
Q22FA23V0017000 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-30ppm
Q22FA23V0017800 3.2x2.5x0.7mm FA-238V 13.560000MHz 18pF +/-50ppm

Q22FA23V0017900 3.2x2.5x0.7mm FA-238V 12.500000MHz 10pF +/-50ppm
Q22FA23V0018000 3.2x2.5x0.7mm FA-238V 14.745600MHz 16pF +/-50ppm
Q22FA23V0019200 3.2x2.5x0.7mm FA-238V 12.288000MHz 10pF +/-30ppm
Q22FA23V0019300 3.2x2.5x0.7mm FA-238V 12.000000MHz 12.5pF +/-50ppm
Q22FA23V0019500 3.2x2.5x0.7mm FA-238V 13.000000MHz 9pF +/-20ppm
Q22FA23V0019700 3.2x2.5x0.7mm FA-238V 12.000000MHz 8pF +/-15ppm
Q22FA23V0020500 3.2x2.5x0.7mm FA-238V 14.745600MHz 8pF +/-50ppm
Q22FA23V0021000 3.2x2.5x0.7mm FA-238V 14.745600MHz 18pF +/-50ppm
Q22FA23V0023300 3.2x2.5x0.7mm FA-238V 14.318180MHz 10pF +/-20ppm
Q22FA23V0023500 3.2x2.5x0.7mm FA-238V 12.000000MHz 9pF +/-30ppm
Q22FA23V0023900 3.2x2.5x0.7mm FA-238V 14.318000MHz 10pF +/-50ppm
Q22FA23V0024100 3.2x2.5x0.7mm FA-238V 14.318180MHz 10pF +/-50ppm
Q22FA23V0024500 3.2x2.5x0.7mm FA-238V 14.318000MHz 16pF +/-50ppm
Q22FA23V0024700 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-20ppm
Q22FA23V0025500 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-20ppm
Q22FA23V0026600 3.2x2.5x0.7mm FA-238V 13.560000MHz 16pF +/-50ppm
Q22FA23V0026800 3.2x2.5x0.7mm FA-238V 12.288000MHz 16pF +/-50ppm
Q22FA23V0027900 3.2x2.5x0.7mm FA-238V 12.000000MHz 18pF +/-30ppm
Q22FA23V0029100 3.2x2.5x0.7mm FA-238V 14.318180MHz 12pF +/-15ppm
Q22FA23V0030700 3.2x2.5x0.7mm FA-238V 14.318180MHz 8pF +/-30ppm
Q22FA23V0031000 3.2x2.5x0.7mm FA-238V 14.318000MHz 20pF +/-30ppm
Q22FA23V0031400 3.2x2.5x0.7mm FA-238V 14.318180MHz 10pF +/-50ppm
Q22FA23V0032600 3.2x2.5x0.7mm FA-238V 14.318180MHz 12pF +/-10ppm
Q22FA23V0032700 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-20ppm
Q22FA23V0033200 3.2x2.5x0.7mm FA-238V 14.745600MHz 18pF +/-30ppm
Q22FA23V0035800 3.2x2.5x0.7mm FA-238V 12.000000MHz 7pF +/-30ppm
Q22FA23V0036700 3.2x2.5x0.7mm FA-238V 14.318000MHz 9pF +/-50ppm
Q22FA23V0037200 3.2x2.5x0.7mm FA-238V 12.288000MHz 18pF +/-20ppm
Q22FA23V0037300 3.2x2.5x0.7mm FA-238V 14.745600MHz 16pF +/-50ppm
Q22FA23V0037400 3.2x2.5x0.7mm FA-238V 13.560000MHz 9pF +/-50ppm
Q22FA23V0037500 3.2x2.5x0.7mm FA-238V 12.800000MHz 15pF +/-10ppm
Q22FA23V0037900 3.2x2.5x0.7mm FA-238V 13.300000MHz 10pF +/-50ppm
Q22FA23V0038000 3.2x2.5x0.7mm FA-238V 12.993000MHz 10pF +/-50ppm
Q22FA23V0038500 3.2x2.5x0.7mm FA-238V 12.800000MHz 15pF +/-10ppm
Q22FA23V0039600 3.2x2.5x0.7mm FA-238V 14.745600MHz 7pF +/-50ppm
Q22FA23V0039700 3.2x2.5x0.7mm FA-238V 14.318180MHz 12pF +/-30ppm
Q22FA23V0040000 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-15ppm
Q22FA23V0040100 3.2x2.5x0.7mm FA-238V 13.500000MHz 10pF +/-15ppm
Q22FA23V0041900 3.2x2.5x0.7mm FA-238V 14.318180MHz 15pF +/-15ppm
Q22FA23V0042500 3.2x2.5x0.7mm FA-238V 12.500000MHz 7pF +/-50ppm
Q22FA23V0042600 3.2x2.5x0.7mm FA-238V 14.745600MHz 10pF +/-50ppm
Q22FA23V0043100 3.2x2.5x0.7mm FA-238V 14.318180MHz 8pF +/-20ppm
Q22FA23V0043200 3.2x2.5x0.7mm FA-238V 12.000000MHz 22pF +/-50ppm
Q22FA23V0043400 3.2x2.5x0.7mm FA-238V 12.800000MHz 15pF +/-50ppm
小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用,Q22FA23V0038500,爱普生晶振
日本EPSON拥有先进的生产设备,追求“省、小、精”的独特技术,研发制造符合业界需求的石英晶振,贴片晶振,有源晶体振荡器等产品.爱普生所生产的石英贴片晶振产品,
爱普生品牌的产业遍布全球,即使除了晶振行业,还有爱普生电容,爱普生打印机,爱普生时钟模块等产品被大家所熟知,多年来因其高稳定的产品质量成为大家一致认可的品牌.
