智能卡专用32.768K晶振CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA

来源：http://www.yijindz.com 作者：亿金电子 2023年04月26

陶瓷或金属封装的32.768kHz和低频(LF)石英晶体单元。有低ESR和宽负载电容(CL)范围的音叉晶体可供选择。这些XTAL产品满足市场对振荡器或微控制器等低功耗定时器件、高可靠性、扩展工作温度和符合AEC-Q200汽车认证的要求。

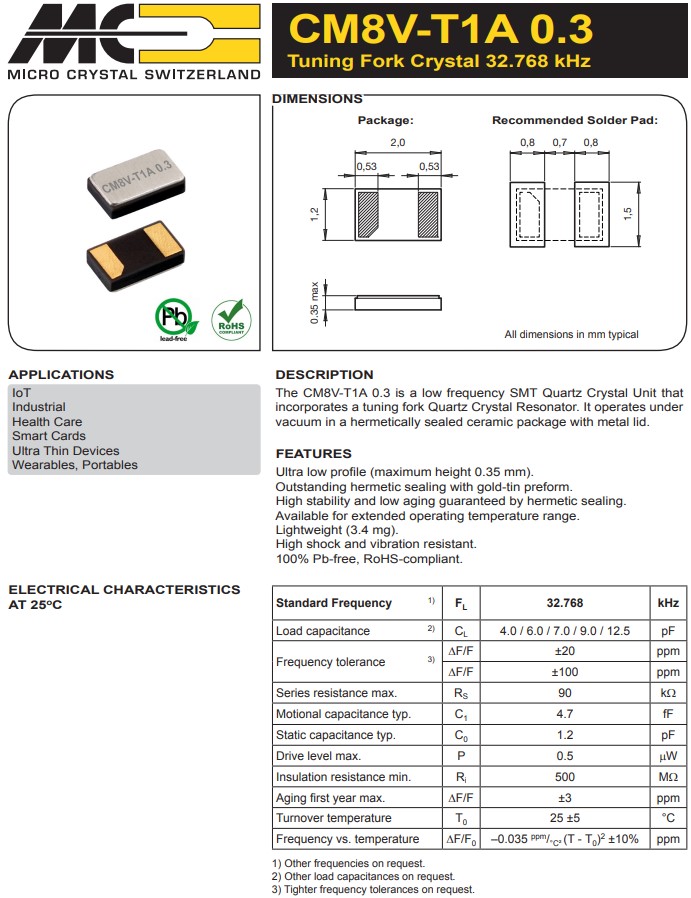

瑞士Microcrystal微晶CM8V-T1A 0.3是一款低频SMT石英晶体单元，小体积晶振尺寸2.0x1.2mm晶振，两脚贴片晶振，32.768K晶振，无源晶振，内置音叉石英晶体谐振器。它在带金属盖的密封陶瓷封装中的真空下工作。具有超小型，轻薄型，耐热及耐环境特点，超低轮廓（最大高度0.35毫米），采用金锡预制棒进行出色的气密密封，密封保证高稳定性和低老化，适用于扩展的工作温度范围，重量轻（3.4毫克），抗冲击和振动能力强，100%无铅，符合RoHS标准。合适的振荡器电路可以在基本模式消耗下操作CM8V-T1A 0.3石英晶体单元，非常低的功率，应用于：物联网，工业的，医疗保健，智能卡，超薄设备，可穿戴设备、便携式设备。智能卡专用32.768K晶振CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA

品牌	制造商零件编号	描述	频率
Micro Crystal	CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz
微晶晶振	CM8V-T1A-32.768k-9pF-20PPM-TB-QA	32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	32.768 kHz 9.0 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	32.768 kHz 12.5 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	32.768 kHz 7.0 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	32.768 kHz 9.0 pF +/-20 PPM -55/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	32.768 kHz 6.0 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	32.768 kHz 6.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	32.768 kHz 6.0 pF +/-10 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	32.768 kHz 6.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	32.768 kHz 12.5 pF +/-20 PPM 0.3mm	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	32.768 kHz 9.0 pF +/-10 PPM -40/+85C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC	32.768 kHz 7.0 pF +/-10 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768k
Micro Crystal	CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC	32.768 kHz 9.0 pF +/-10 PPM -40/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	32.768 kHz 12.5 pF +/-20 PPM -55/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA	32.768 kHz 7.0 pF +/-10 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC	32.768 kHz 9.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA	32.768 kHz 9.0 pF +/-20 PPM LOW ESR	32.768 kHz
贴片晶振	CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	32.768 kHz 9.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA	32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	32.768 kHz

智能卡专用32.768K晶振CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA，2012mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.
