SG5032VAN低抖动振荡器是无线模块应用晶振
来源:http://www.yijindz.com 作者:亿金电子 2022年09月13
差分晶振的输出是什么意思呢?差分晶振输出是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统.这种方式可输送高频,并具有抗噪音强,低抖动等特征.常见的差分输出为LVDS、HCSL、LV-PECL.下面所介绍到的是爱普生LVDS输出的差分晶振编码.

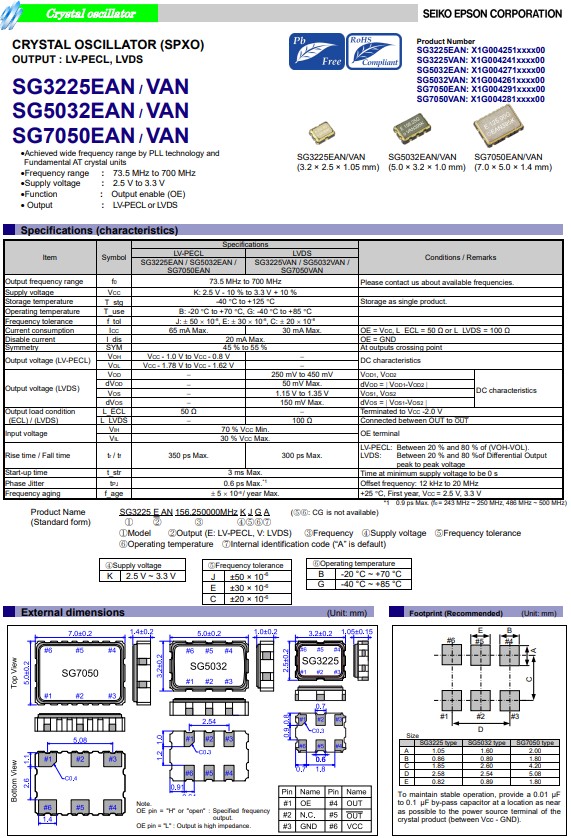

日本进口爱普生晶振SG5032VAN,是一款LVDS输出差分晶振,小体积晶振尺寸5.0x3.2mm,六脚贴片晶振,有源晶振,差分晶体振荡器,电源电压2.5V至3.3V,宽频率范围73.5MHz至700MHz,任意一频点,具有低电源电压,满足产品低消耗电流的特点,该产品具有超小型,轻薄型,低抖动,低功耗,低损耗,低耗能,低电源电压,低电平等特点,作为目前行业中高要求、高技术石英晶体振荡器,具有相位低、损耗低的特点。因此也被称之为"低抖动振荡器,低抖动石英晶振,低相位晶振,低损耗晶振”。
SG5032VAN低抖动振荡器是无线模块应用晶振,X1G004261012600,LVDS差分晶振
SG5032VAN低抖动振荡器是无线模块应用晶振,X1G004261012600,LVDS差分晶振
LVDS(Low Voltage Differential Signaling)它是一种低摆幅的差分信号技术,它使得信号能够在差PCB线对或平衡电缆上以几百的Mbps的速率传输,其低压幅以及低电流驱动输出实现了低噪声以及低功耗。LVDS(Low Voltage Differential Signaling)是一种小振幅差分信号技术,LVDS晶振信号传输一般由三部分组成:差分信号发送器,差分信号互联器,差分信号接收器。
日本进口爱普生晶振SG5032VAN,是一款LVDS输出差分晶振,小体积晶振尺寸5.0x3.2mm,六脚贴片晶振,有源晶振,差分晶体振荡器,电源电压2.5V至3.3V,宽频率范围73.5MHz至700MHz,任意一频点,具有低电源电压,满足产品低消耗电流的特点,该产品具有超小型,轻薄型,低抖动,低功耗,低损耗,低耗能,低电源电压,低电平等特点,作为目前行业中高要求、高技术石英晶体振荡器,具有相位低、损耗低的特点。因此也被称之为"低抖动振荡器,低抖动石英晶振,低相位晶振,低损耗晶振”。
SG5032VAN低抖动振荡器是无线模块应用晶振,X1G004261012600,LVDS差分晶振
产品编码 | 有源晶振 | 频率 | 尺寸 | 输出波 |
X1G004261000100 | SG5032VAN | 100.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261000200 | SG5032VAN | 125.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261000500 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261000600 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261001100 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261001300 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261001400 | SG5032VAN | 155.520000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261002000 | SG5032VAN | 125.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261002100 | SG5032VAN | 125.006250MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261002300 | SG5032VAN | 100.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261002400 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS晶振 |
X1G004261002500 | SG5032VAN | 400.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261002900 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261003100 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261003300 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261003400 | SG5032VAN | 312.500000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261004300 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261006200 | SG5032VAN | 200.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261006700 | SG5032VAN | 148.500000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261006900 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261007100 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261010200 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261010700 | SG5032VAN | 153.600000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261011400 | SG5032VAN | 78.125000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261011900 | SG5032VAN | 120.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261012100 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261012500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261012600 | SG5032VAN | 133.333300MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261012800 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261012900 | SG5032VAN | 135.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261013100 | SG5032VAN | 322.265625MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261013300 | SG5032VAN | 230.000000MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261013500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261013600 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261013800 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261014100 | SG5032VAN | 161.132812MHz | 5.00x3.20x1.20mm | LVDS |
X1G004261014300 | SG5032VAN | 625.000000MHz | 5.00x3.20x1.20mm | LVDS |
LVDS(Low Voltage Differential Signaling)它是一种低摆幅的差分信号技术,它使得信号能够在差PCB线对或平衡电缆上以几百的Mbps的速率传输,其低压幅以及低电流驱动输出实现了低噪声以及低功耗。LVDS(Low Voltage Differential Signaling)是一种小振幅差分信号技术,LVDS晶振信号传输一般由三部分组成:差分信号发送器,差分信号互联器,差分信号接收器。
