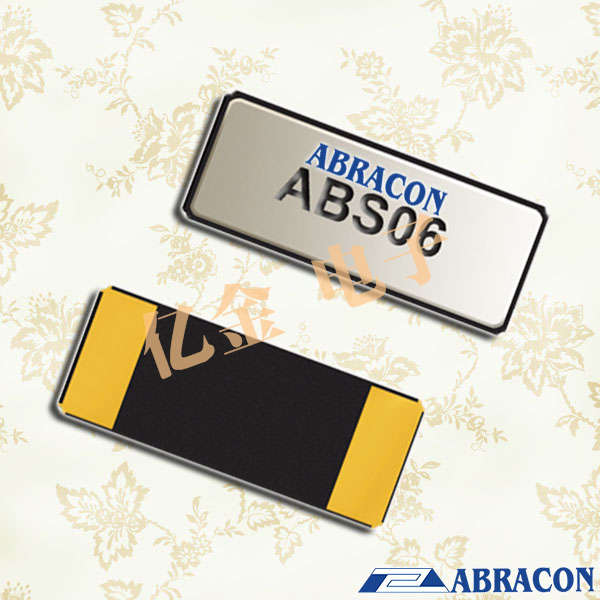

首页欧美晶振 Abracon晶振ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012

频率：32.768KHz
尺寸：2012
应　用： ABS06-32.768KHZ-9-1-T32.768KHz10PPM9PF2012，欧美艾伯康晶振公司,广泛的通信和测量设备的商业和工业应用无线通信PDA和棕榈飞行员,陶瓷封装提供优良的环境和耐热性扩展温度-55C到+125C的工业应用,小型尺寸2.0x1.2x0....

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012，欧美艾伯康晶振公司,广泛的通信和测量设备的商业和工业应用无线通信PDA和棕榈飞行员,陶瓷封装提供优良的环境和耐热性扩展温度-55°C到+125°C的工业应用,小型尺寸2.0 x 1.2 x 0.6mm，理想的高密度电路板

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012

Parameters	Minimum	Typical	Maximum	Units
频率		32.768		Hz
工作模式	Flexural Mode (Tuning Fork)
工作温度	--40		+85	ºC
储存温度	--55		+ 125	ºC
频率容差 @+25°C	--20		+20	ppm
温度系数	--0.04	--0.03	--0.02	ppm/T²
翻转温度:	+20	+25	+30	ºC
等效串联电阻 (R1)			90	?
			110	?
负载电容 (CL)		12.5		pF
驱动电平		0.1	0.5	µW
Q值	9000
老化@25°C±3°C	--3		3	ppm
绝缘电阻	500			M?

ABS06-32.768KHZ-9-1-T 32.768KHz 10PPM 9PF 2012

ABRACON编号	制造商	型号	频率	频率容差	负载电容
ABMM-32.000MHZ-B2F-T	Abracon LLC	ABMM	32 MHz	±20ppm	18pF
ABS09-32.768KHZ-T	Abracon LLC	ABS09	32.768 kHz	±20ppm	12.5pF
ABS09-32.768KHZ-9-T	Abracon LLC	ABS09	32.768 kHz	±20ppm	9pF
ABMM-14.7456MHZ-B2-T	Abracon LLC	ABMM	14.7456 MHz	±20ppm	18pF
ABMM2-14.7456MHZ-E2-T	Abracon LLC	ABMM2	14.7456 MHz	±20ppm	18pF
ABMM-25.000MHZ-B2-T	Abracon LLC	ABMM	25 MHz	±20ppm	18pF
ABMM2-7.3728MHZ-E2-T	Abracon LLC	ABMM2	7.3728 MHz	±20ppm	18pF
ABMM-16.000MHZ-B2-T	Abracon LLC	ABMM	16 MHz	±20ppm	18pF
ABMM2-11.0592MHZ-E2-T	Abracon LLC	ABMM2	11.0592 MHz	±20ppm	18pF
ABS07-32.768KHZ-T	Abracon LLC	ABS07	32.768 kHz	±20ppm	12.5pF
ABS07-32.768KHZ-7-T	Abracon LLC	ABS07	32.768 kHz	±20ppm	7pF
ABS07-166-32.768KHZ-T	Abracon LLC	ABS07	32.768 kHz	±10ppm	7pF
ABS07-32.768KHZ-9-T	Abracon LLC	ABS07	32.768 kHz	±20ppm	9pF
ABS07AIG-32.768KHZ-9-T	Abracon LLC	ABS07AIG	32.768 kHz	±20ppm	9pF
ABS07AIG-32.768KHZ-9-D-T	Abracon LLC	ABS07AIG	32.768 kHz	±20ppm	9pF
ABS07-32.768KHZ-9-4-T	Abracon LLC	ABS07	32.768 kHz	±30ppm	9pF
ABS07L-32.768KHZ-T	Abracon LLC	ABS07L	32.768 kHz	±20ppm	12.5pF
ABS07-32.768KHZ-1-T	Abracon LLC	ABS07	32.768 kHz	±10ppm	12.5pF
ABS05-32.768KHZ-T	Abracon LLC	ABS05	32.768 kHz	±20ppm	12.5pF
ABS05-32.768KHZ-9-T	Abracon LLC	ABS05	32.768 kHz	±20ppm	9pF
ABS06-32.768KHZ-T	Abracon LLC	ABS06	32.768 kHz	±20ppm	12.5pF
ABS06-32.768KHZ-9-T	Abracon LLC	ABS06	32.768 kHz	±20ppm	9pF
ABS06-32.768KHZ-1-T	Abracon LLC	ABS06	32.768 kHz	±10ppm	12.5pF
ABS05-32.768KHZ-7-T	Abracon LLC	ABS05	32.768 kHz	±20ppm	7pF
ABS05-32.768KHZ-X-T5	Abracon LLC	ABS05	32.768 kHz	±20ppm	4pF
ABS05-32.768KHZ-6-T	Abracon LLC	ABS05	32.768 kHz	±20ppm	6pF
ABS05-32.768KHZ-X-3-T3	Abracon LLC	ABS05	32.768 kHz	±25ppm	4pF
ABS06-32.768KHZ-9-1-T	Abracon LLC	ABS06	32.768 kHz	±10ppm	9pF
ABS05W-32.768KHZ-K-2-T	Abracon LLC	ABS05W	32.768 kHz	±20ppm	4pF
ABS07-32.768KHZ-4-T	Abracon LLC	ABS07	32.768 kHz	±30ppm	4pF
ABS07-32.768KHZ-9-H-T	Abracon LLC	ABS07	32.768 kHz	±20ppm	9pF
ABS07AIG-32.768KHZ-7-D-T	Abracon LLC	ABS07AIG	32.768 kHz	±20ppm	7pF
ABS25-32.000KHZ-T	Abracon LLC	ABS25	32 kHz	±30ppm	12.5pF
ABS05W-32.768KHZ-J-2-T	Abracon LLC	ABS05W	32.768 kHz	±20ppm	4pF
ABS06-32.768KHZ-7-T	Abracon LLC	ABS06	32.768 kHz	±20ppm	7pF
ABS25-60.000KHZ-T	Abracon LLC	ABS25	60 kHz	±30ppm	12.5pF
ABS04W-32.768KHZ-6-J2-T5	Abracon LLC	ABS04W	32.768 kHz	±20ppm	6pF
ABS04W-32.768KHZ-4-D2-T5	Abracon LLC	ABS04W	32.768 kHz	±20ppm	4pF
ABS04W-32.768KHZ-4-J2-T5	Abracon LLC	ABS04W	32.768 kHz	±20ppm	4pF
ABMM2-50.000MHZ-E2F-T	Abracon LLC	ABMM2	50 MHz	±20ppm	18pF
ABMM2-20.000MHZ-E2-T	Abracon LLC	ABMM2	20 MHz	±20ppm	18pF
ABMM2-14.31818MHZ-E2-T	Abracon LLC	ABMM2	14.31818 MHz	±20ppm	18pF
ABMM-11.0592MHZ-B2-T	Abracon LLC	ABMM	11.0592 MHz	±20ppm	18pF
ABMM-29.4912MHZ-10-B-T	Abracon LLC	ABMM	29.4912 MHz	±50ppm	10pF
ABMM1-24.000MHZ-16-T	Abracon LLC	ABMM1	24 MHz	±50ppm	16pF
ABS13-32.768KHZ-T	Abracon LLC	ABS13	32.768 kHz	±20ppm	12.5pF
