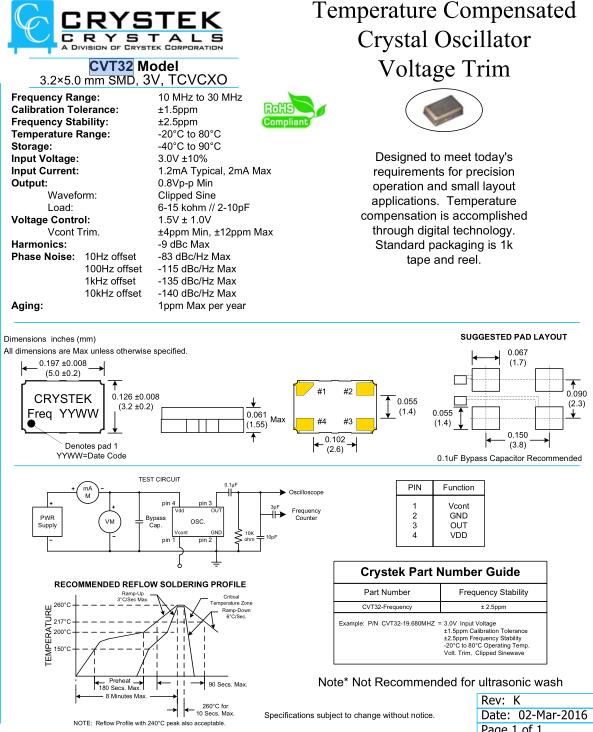

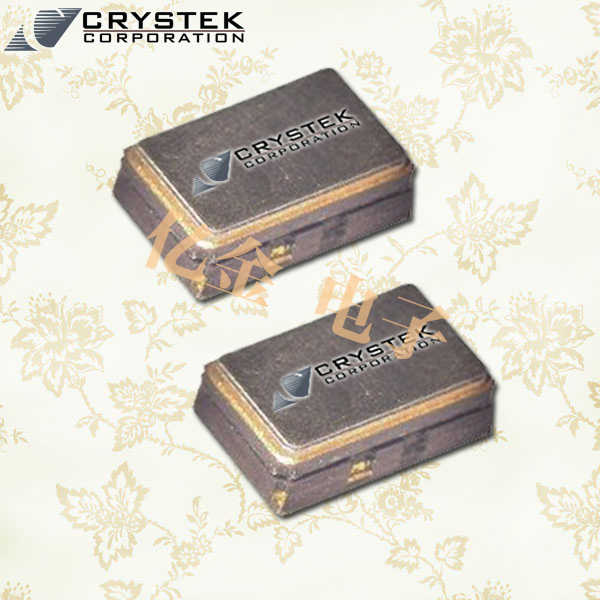

CVT32压控温补晶振,Crystek振荡器,CVT32-12.000MHZ晶振，小型SMD进口有源晶振,从最初超大体积到现在的7050mm,6035mm,5032mm,3225mm,2520mm体积,有着翻天覆地的改变,体积的变小也使产品带来了更高的稳定性能,接缝密封石英晶体振荡器,精度高,覆盖频率范围宽的特点,SMD高速自动安装和高温回流焊设计,Optionable待机输出三态输出功能,电源电压范围:1.8V~5V,高稳定性,低抖动,低功耗,主要应用领域:无线通讯,高端智能手机,平板笔记本WLAN,蓝牙,数码相机,DSL和其他IT产品的晶振应用,三态功能,PC和LCDM等高端数码领域,符合RoHS/无铅.

Frequency Range:	10 MHz to 30 MHz
Calibration Tolerance:	±1.5ppm
Frequency Stability:	±2.5ppm
Temperature Range:	-20°C to 80°C
Storage:	-40°C to 90°C
Input Voltage:	3.0V ±10%
Input Current:	1.2mA Typical, 2mA Max
Output:             Waveform:             Load:	0.8Vp-p Min Clipped Sine 6-15 kohm // 2-10pF
Voltage Control:        Vcont Trim.	1.5V ± 1.0V ±4ppm Min, ±13ppm Max
Harmonics:	-9 dBc Max
Phase Noise:                 10Hz offset                 100Hz offset                 1kHz offset                 10kHz offset	-83 dBc/Hz Max -115 dBc/Hz Max -135 dBc/Hz Max -140 dBc/Hz Max
Aging:	1ppm Max per year
