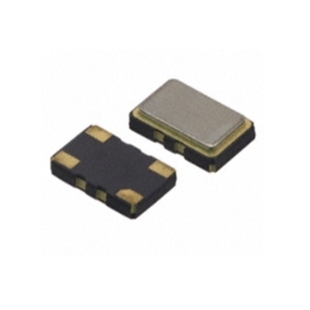

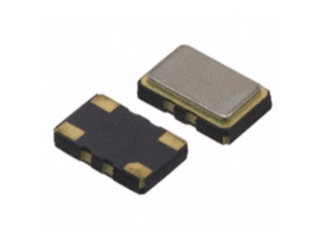

FO7HSCAE20.0-T1,欧美进口贴片晶振,O7HS工业应用晶振
- 频率：20 MHz

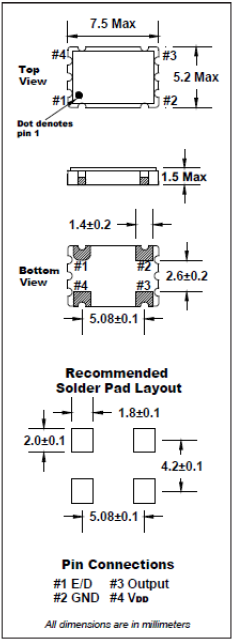

- 尺寸：7.50mm x 5.20mm
- 应 用： FO7HSCAE20.0-T1,欧美进口贴片晶振,O7HS工业应用晶振,凭借20.0MHz频率,工业级性能及贴片封装,全面适配多类型工业设备,减少数据丢包或延迟,同时贴片封装适配网关设备的紧凑结构设计.
-
.png)
.png)
FO7HSCAE20.0-T1,欧美进口贴片晶振,O7HS工业应用晶振
作为欧美进口的O7HS系列晶振,FO7HSCAE20.0-T1依托进口供应链的严格品控,从源头保障工业级品质,采用高纯度石英晶体核心材料,经过欧美先进的精密切割,抛光与参数校准工艺,确保频率基准的长期稳定性,出厂前每颗产品均经过高温,低温,电磁干扰,机械振动,电压波动等工业场景模拟测试,不良率控制在极低水平(典型值＜100ppm),降低工业设备后期因时钟故障导致的停机维护成本.对于工业设备研发企业,进口产品的标准化参数可减少跨国适配难度,同时欧美技术团队可提供工业场景定制化技术支持,协助解决复杂工况下的时钟匹配问题,缩短研发周期,对于生产企业,其稳定的进口供货周期,标准化贴片石英晶振封装与高良率特性,能保障工业设备的大规模量产效率,有效平衡工业级性能,可靠性与成本,是工业设备时钟方案的优质选择.
.png)
.png)
FO7HSCAE20.0-T1,欧美进口贴片晶振,O7HS工业应用晶振
| 原厂型号 Originalmodel： | FO7HSCAE20.0-T1 | 品牌brand： | Fox Electronics |
| Manufacturer品牌 | Fox高品质晶振 | OperatingTemperature温度 | -10°C ~ 70°C |
| Series型号 | O7HS | Current-Supply(Max) | 15mA |
| Type类型 | XO (Standard) | PackageHeight高度 | 1.50mm |
| Frequency频率 | 20 MHz | Termination 脚位 | 4 pad |
| 输出方式 Output： | HCMOS | PackageType 封装类型 | 4-SMD |
| Voltage-Supply电压 | 3.3V | Packaging 包装 | TapeandReel |
| FrequencyStability频率稳定度 | ±100ppm | 安装方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7.50mm x 5.20mm | 最小包装数MPQ： | 1000 |
.png)
.png)
FO7HSCAE20.0-T1,欧美进口贴片晶振,O7HS工业应用晶振
| FO7HSCBE25.0-T1 | Fox Electronics | F4105 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FT5HNBPK25.0-T1 | Fox Electronics | FOX924 | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK10.0-T1 | Fox Electronics | FOX924 | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.0-T1 | Fox Electronics | FOX924 | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK12.288-T1 | Fox Electronics | FOX924 | TCXO | 12.288 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK14.7456-T1 | Fox Electronics | FOX924 | TCXO | 14.7456 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK20.0-T1 | Fox Electronics | FOX924 | TCXO | 20 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT5HNBPK27.0-T1 | Fox Electronics | FOX924 | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT9CVDPH20.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO3HSKDM24.0-T2 | Fox Electronics | F310R | XO (Standard) | 24 MHz | HCMOS | 1.8V | ±25ppm |
| FO3HSKDM33.333-T2 | Fox Electronics | F310R | XO (Standard) | 33.333 MHz | HCMOS | 1.8V | ±25ppm |
| FO7HSCAE50.0-T1 | Fox Electronics | F4100 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±100ppm |
| FT5CNDPK12.8-T1 | Fox Electronics | FOX914 | TCXO | 12.8 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT5HNBPK16.0-T1 | Fox Electronics | FOX924 | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HSCBE40.0-T2 | Fox Electronics | F335 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE33.333-T1 | Fox Electronics | F535L | XO (Standard) | 33.333 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK12.0-T1 | Fox Electronics | T3HN | TCXO | 12 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT3HNBPK27.0-T1 | Fox Electronics | T3HN | TCXO | 27 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO3HFCYM0.032768-T3 | Fox Electronics | F32K | XO (Standard) | 32.768 kHz | HCMOS | 3.3V | -170ppm, +10ppm |
| FO5HSCBE25.0-T1 | Fox Electronics | F535L | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE1.8432-T1 | Fox Electronics | O7HS | XO (Standard) | 1.8432 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBE50.0-T1 | Fox Electronics | O7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE25.0-T1 | Fox Electronics | O7HS | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HSCBM50.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE48.0-T1 | Fox Electronics | FO7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±100ppm |
| FO7HHAAE1.8432-T1 | Fox Electronics | O7HH | XO (Standard) | 1.8432 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE32.0-T1 | Fox Electronics | O7HH | XO (Standard) | 32 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE50.0-T1 | Fox Electronics | O7HH | XO (Standard) | 50 MHz | HCMOS | 5V | ±100ppm |
| FO7HHAAE40.0-T1 | Fox Electronics | O7HH | XO (Standard) | 40 MHz | HCMOS | 5V | ±100ppm |
| FT1MNTUM-38.4-T1 | Fox Electronics | FT1MN | TCXO | 38.4 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT3MNTUM-26.0-T1 | Fox Electronics | FT3MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT1MNTUM-26.0-T1 | Fox Electronics | FT1MN | TCXO | 26 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-32.0-T1 | Fox Electronics | FT2MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT2MNTUM-30.0-T1 | Fox Electronics | FT2MN | TCXO | 30 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FO3HSCBE50.0-T1 | Fox Electronics | F335 | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE3.6864-T1 | Fox Electronics | * | - | - | - | - | - |
| FO5HSCBE24.0-T1 | Fox Electronics | F535L | XO (Standard) | 24 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCBE20.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FT3HNBPK25.0-T1 | Fox Electronics | T3HN | TCXO | 25 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCAE40.0-T1 | Fox Electronics | F4100 | XO (Standard) | 40 MHz | HCMOS | 3.3V | ±100ppm |
| FT3HNBPK16.0-T1 | Fox Electronics | T3HN | TCXO | 16 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HSCBE20.0-T1 | Fox Electronics | O7HS | XO (Standard) | 20 MHz | HCMOS | 3.3V | ±50ppm |
| FT3HNBPK10.0-T1 | Fox Electronics | T3HN | TCXO | 10 MHz | HCMOS | 3.3V | ±2.5ppm |
| FO7HHAAE50.0-T2 | Fox Electronics | * | - | - | - | - | - |
| FO7HHAAE16.0-T1 | Fox Electronics | F3345 | XO (Standard) | 16 MHz | HCMOS | 5V | ±100ppm |
| FO7HSCDE48.0-T1 | Fox Electronics | O7HS | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±25ppm |
| FT5CNDPK20.0-T1 | Fox Electronics | FOX914 | TCXO | 20 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FT3MNTUM-32.0-T1 | Fox Electronics | FT3MN | TCXO | 32 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT5HNBPK19.44-T1 | Fox Electronics | FOX924 | TCXO | 19.44 MHz | HCMOS | 3.3V | ±2.5ppm |
| FT2MNTUM-40.0-T1 | Fox Electronics | FT2MN | TCXO | 40 MHz | Clipped Sine Wave | 1.68V ~ 3.63V | ±500ppb |
| FT9CVDPH10.0-T1 | Fox Electronics | FOX801_E | VCTCXO | 10 MHz | Clipped Sine Wave | 3V | ±2.5ppm |
| FO2HSKBM25.0-T1 | Fox Electronics | FO2HS | XO (Standard) | 25 MHz | HCMOS | 1.8V | ±50ppm |
| FO3HSCBE12.0-T1 | Fox Electronics | F335 | XO (Standard) | 12 MHz | HCMOS | 3.3V | ±50ppm |
| FO3HSCBE25.0-T1 | Fox Electronics | F335 | XO (Standard) | 25 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE10.0-T1 | Fox Electronics | F535L | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE16.0-T1 | Fox Electronics | F535L | XO (Standard) | 16 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE48.0-T1 | Fox Electronics | F535L | XO (Standard) | 48 MHz | HCMOS | 3.3V | ±50ppm |
| FO5HSCBE50.0-T1 | Fox Electronics | F535L | XO (Standard) | 50 MHz | HCMOS | 3.3V | ±50ppm |
| FO7HSCAE10.0-T1 | Fox Electronics | F4100 | XO (Standard) | 10 MHz | HCMOS | 3.3V | ±100ppm |
