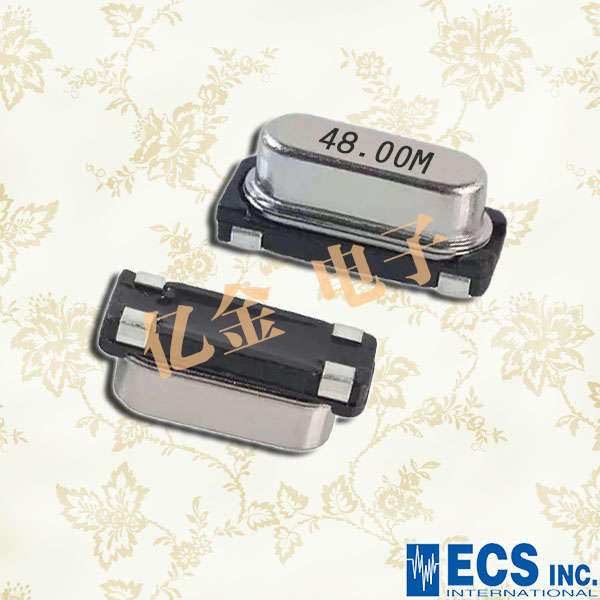

ECS-36-20-28AX-TR 3.3834M 20PF 30PPM 49SMD
- 频率：3.6864MHz

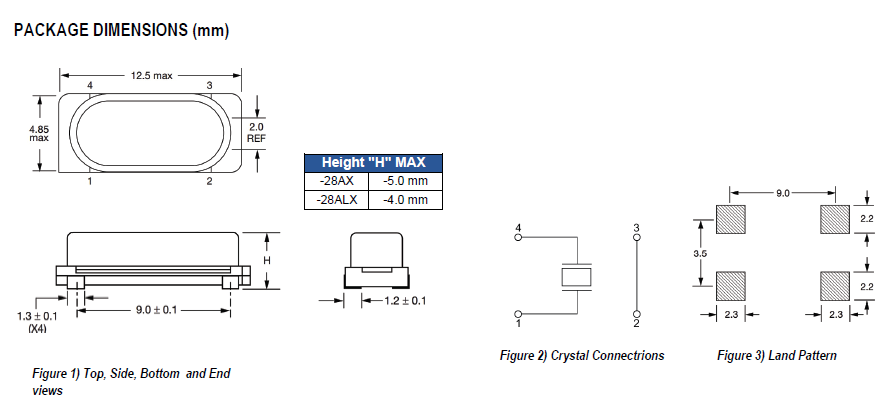

- 尺寸：12.50mm x 4.85mm
- 应 用： ECS-36-20-28AX-TR3.3834M20PF30PPM49SMD，ECS石英晶体振荡器，CSM-4AXSMD石英晶体，CSM-4AX是低成本SMD晶体的绝佳选择。CSM-4AX（28AX）的外壳高度最高为5.0mm。在一个电阻焊缝金属封装中。较低的轮廓包装高度为最大...
-
-
.jpg)

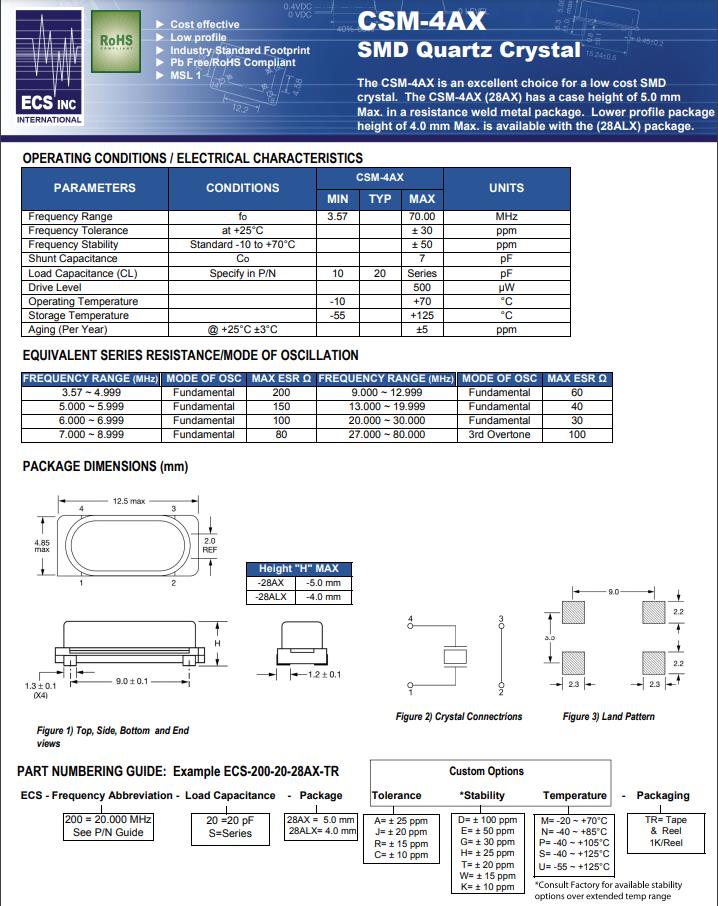

ECS-36-20-28AX-TR 3.3834M 20PF 30PPM 49SMD， ECS石英晶体振荡器，CSM-4AX SMD石英晶体，CSM-4AX是低成本SMD晶体的绝佳选择。CSM-4AX（28AX）的外壳高度最高为5.0 mm。在一个电阻焊缝金属封装中。较低的轮廓包装高度为最大4.0 mm。可与（28ALX）。
ECS-36-20-28AX-TR 3.3834M 20PF 30PPM 49SMD
| 参数 | 环境 | CSM-4AX | 单位 | ||
| 最小值 | 典型的 | 最大值 | |||
| 频率 | fo | 3.57 | 70.00 | MHz | |
| 频率容差 | at +25°C | ± 30 | ppm | ||
| 频率偏差度 | Standard -10 to +70°C | ± 50 | ppm | ||
| 并联电容 | Co | 7 | pF | ||
| 负载电容 | Specify in P/N | 10 | 20 | Series | pF |
| 驱动电平 | 500 | µW | |||
| 工作温度 | --10 | +70 | °C | ||
| 储存温度 | --55 | +125 | °C | ||
| 老化 | @ +25°C ±3°C | ±5 | ppm | ||
.jpg)
ECS-36-20-28AX-TR 3.3834M 20PF 30PPM 49SMD
| ECS原厂编码 | 型号 | 类型 | 频率 | 频率容差 | 频率偏差度 | 负载电容 |
| ECS-100-20-28A-TR | CSM-4A | MHz Crystal | 10MHz | ±50ppm | ±30ppm | 20pF |
| ECS-100-S-28A-TR | CSM-4A | MHz Crystal | 10MHz | ±50ppm | ±30ppm | Series |
| ECS-110.5-20-28A-TR | CSM-4A | MHz Crystal | 11.0592MHz | ±50ppm | ±30ppm | 20pF |
| ECS-110.5-S-28A-TR | CSM-4A | MHz Crystal | 11.0592MHz | ±50ppm | ±30ppm | Series |
| ECS-120-18-28A-TR | CSM-4A | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 18pF |
| ECS-120-32-28A-TR | CSM-4A | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 32pF |
| ECS-120-S-28A-TR | CSM-4A | MHz Crystal | 12MHz | ±50ppm | ±30ppm | Series |
| ECS-122.8-20-28A-TR | CSM-4A | MHz Crystal | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-20-28A-TR | CSM-4A | MHz Crystal | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-S-28A-TR | CSM-4A | MHz Crystal | 14.31818MHz | ±50ppm | ±30ppm | Series |
| ECS-147.4-20-28A-TR | CSM-4A | MHz Crystal | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-S-28A-TR | CSM-4A | MHz Crystal | 14.7456MHz | ±50ppm | ±30ppm | Series |
| ECS-160-20-28A-TR | CSM-4A | MHz Crystal | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-S-28A-TR | CSM-4A | MHz Crystal | 16MHz | ±50ppm | ±30ppm | Series |
| ECS-184-20-28A-TR | CSM-4A | MHz Crystal | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-184-S-28A-TR | CSM-4A | MHz Crystal | 18.432MHz | ±50ppm | ±30ppm | Series |
| ECS-200-20-28A-TR | CSM-4A | MHz Crystal | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-S-28A-TR | CSM-4A | MHz Crystal | 20MHz | ±50ppm | ±30ppm | Series |
| ECS-240-12-28A-TR | CSM-4A | MHz Crystal | 24MHz | ±50ppm | ±30ppm | 12pF |
| ECS-240-20-28A-TR | CSM-4A | MHz Crystal | 24MHz | ±50ppm | ±30ppm | 20pF |
| ECS-240-S-28A-TR | CSM-4A | MHz Crystal | 24MHz | ±50ppm | ±30ppm | Series |
| ECS-245.7-20-28A-TR | CSM-4A | MHz Crystal | 24.576MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-20-28A-F-TR | CSM-4A | MHz Crystal | 25MHz | ±50ppm | ±30ppm | 20pF |
| ECS-35-17-28A-TR | CSM-4A | MHz Crystal | 3.579545MHz | ±50ppm | ±30ppm | 17pF |
| ECS-36-20-28A-TR | CSM-4A | MHz Crystal | 3.6864MHz | ±50ppm | ±30ppm | 20pF |
| ECS-40-20-28A-TR | CSM-4A | MHz Crystal | 4MHz | ±50ppm | ±30ppm | 20pF |
| ECS-49-20-28A-TR | CSM-4A | MHz Crystal | 4.9152MHz | ±50ppm | ±30ppm | 20pF |
| ECS-50-20-28A-TR | CSM-4A | MHz Crystal | 5MHz | ±50ppm | ±30ppm | 20pF |
| ECS-60-32-28A-TR | CSM-4A | MHz Crystal | 6MHz | ±50ppm | ±30ppm | 32pF |
| ECS-73-20-28A-TR | CSM-4A | MHz Crystal | 7.3728MHz | ±50ppm | ±30ppm | 20pF |
| ECS-80-16-28A-TR | CSM-4A | MHz Crystal | 8MHz | ±50ppm | ±30ppm | 16pF |
| ECS-98.3-20-28A-TR | CSM-4A | MHz Crystal | 9.8304MHz | ±50ppm | ±30ppm | 20pF |
| ECS-100-20-28AX-TR | CSM-4AX | MHz Crystal | 10MHz | ±50ppm | ±30ppm | 20pF |
| ECS-110.5-20-28AX-TR | CSM-4AX | MHz Crystal | 11.0592MHz | ±50ppm | ±30ppm | 20pF |
| ECS-120-18-28AX-TR | CSM-4AX | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 18pF |
| ECS-120-32-28AX-TR | CSM-4AX | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 32pF |
| ECS-120-S-28AX-TR | CSM-4AX | MHz Crystal | 12MHz | ±50ppm | ±30ppm | Series |
| ECS-122.8-20-28AX-TR | CSM-4AX | MHz Crystal | 12.288MHz | ±50ppm | ±30ppm | 20pF |
| ECS-143-20-28AX-TR | CSM-4AX | MHz Crystal | 14.31818MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-20-28AX-TR | CSM-4AX | MHz Crystal | 14.7456MHz | ±50ppm | ±30ppm | 20pF |
| ECS-147.4-S-28AX-TR | CSM-4AX | MHz Crystal | 14.7456MHz | ±50ppm | ±30ppm | Series |
| ECS-160-20-28AX-TR | CSM-4AX | MHz Crystal | 16MHz | ±50ppm | ±30ppm | 20pF |
| ECS-160-S-28AX-TR | CSM-4AX | MHz Crystal | 16MHz | ±50ppm | ±30ppm | Series |
| ECS-184-20-28AX-TR | CSM-4AX | MHz Crystal | 18.432MHz | ±50ppm | ±30ppm | 20pF |
| ECS-200-20-28AX-TR | CSM-4AX | MHz Crystal | 20MHz | ±50ppm | ±30ppm | 20pF |
| ECS-240-12-28AX-TR | CSM-4AX | MHz Crystal | 24MHz | ±50ppm | ±30ppm | 12pF |
| ECS-240-20-28AX-TR | CSM-4AX | MHz Crystal | 24MHz | ±50ppm | ±30ppm | 20pF |
| ECS-250-18-28AX | CSM-4AX | MHz Crystal | 25MHz | ±50ppm | ±30ppm | 18pF |
| ECS-250-20-28AX-F-TR | CSM-4AX | MHz Crystal | 25MHz | ±50ppm | ±30ppm | 20pF |
| ECS-36-20-28AX-TR | CSM-4AX | MHz Crystal | 3.6864MHz | ±50ppm | ±30ppm | 20pF |
| ECS-40-20-28AX-TR | CSM-4AX | MHz Crystal | 4MHz | ±50ppm | ±30ppm | 20pF |
| ECS-60-32-28AX-TR | CSM-4AX | MHz Crystal | 6MHz | ±50ppm | ±30ppm | 32pF |
| ECS-73-20-28AX-TR | CSM-4AX | MHz Crystal | 7.3728MHz | ±50ppm | ±30ppm | 20pF |
| ECS-80-16-28AX-TR | CSM-4AX | MHz Crystal | 8MHz | ±50ppm | ±30ppm | 16pF |
