FC1BACBEI38.0-T3,2016贴片石英晶振,6G光纤通道晶振
- 频率：38MHz
- 尺寸：2.0×1.6mm
- 应 用： FOX晶振,欧美进口晶振,C1BA无源晶振,FC1BACBEI38.0-T3晶振,2016贴片石英晶振,小体积晶振,频率38MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,耐高温晶振,无铅环保晶振,6G光纤通道晶振,汽车音响控制器晶振,网络终...
-
-
FC1BACBEI38.0-T3,2016贴片石英晶振,6G光纤通道晶振,FOX晶振,欧美进口晶振,C1BA无源晶振,FC1BACBEI38.0-T3晶振,2016贴片石英晶振,小体积晶振,频率38MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,耐高温晶振,无铅环保晶振,6G光纤通道晶振,汽车音响控制器晶振,网络终端晶振,GPS导航晶振.
FC1BACBEI38.0-T3,2016贴片石英晶振,6G光纤通道晶振规格表
| 参数 | 数值 |
| 标准频率 | 38MHz |
| 频率容差 | 30ppm |
| 频率稳定性 | 50ppm |
| 工作温度 | −40~+125°C |
| 储存温度 | −55~+150°C |
| 老化 | ±5ppm |
| 负载 | 10pF |
| 并联电容 | 3pF Max |
| 激励功率 | 100 µW MAX |
| 湿度敏感等级(MSL) | 1 |
| 最大焊接温度/时间 |
260ºC / 10 Seconds
|
| 无铅 |
Yes
|
| 通过无铅认证 |
No Exemptions
|
.jpg)

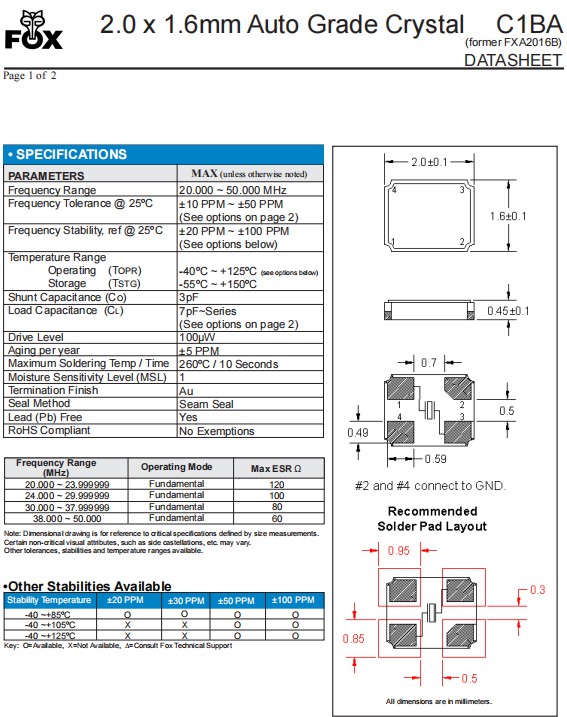

FC1BACBEI38.0-T3,2016贴片石英晶振,6G光纤通道晶振尺寸图
| 制造商零件编号 | 供应商 | 系列 | 频率 | 频率稳定性 | 频率容差 | 负载电容 | 工作温度 |
| FC1BACBEI21.0-T3 | Fox 晶振 | C1BA | 21 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI22.0-T3 | Fox 晶振 | C1BA | 22 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI23.0-T3 | Fox 晶振 | C1BA | 23 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI24.0-T3 | Fox 晶振 | C1BA | 24 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI25.0-T3 | Fox 晶振 | C1BA | 25 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI26.0-T3 | Fox 晶振 | C1BA | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI27.0-T3 | Fox 晶振 | C1BA | 27 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI28.0-T3 | Fox 晶振 | C1BA | 28 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI29.0-T3 | Fox 晶振 | C1BA | 29 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI30.0-T3 | Fox 晶振 | C1BA | 30 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI31.0-T3 | Fox 晶振 | C1BA | 31 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI32.0-T3 | Fox 晶振 | C1BA | 32 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI33.0-T3 | Fox 晶振 | C1BA | 33 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI34.0-T3 | Fox 晶振 | C1BA | 34 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI35.0-T3 | Fox 晶振 | C1BA | 35 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI36.0-T3 | Fox 晶振 | C1BA | 36 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI37.0-T3 | Fox 晶振 | C1BA | 37 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI38.0-T3 | Fox 晶振 | C1BA | 38 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI39.0-T3 | Fox 晶振 | C1BA | 39 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI40.0-T3 | Fox 晶振 | C1BA | 40 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI41.0-T3 | Fox 晶振 | C1BA | 41 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI42.0-T3 | Fox 晶振 | C1BA | 42 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI43.0-T3 | Fox 晶振 | C1BA | 43 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI44.0-T3 | Fox 晶振 | C1BA | 44 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI45.0-T3 | Fox 晶振 | C1BA | 45 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI46.0-T3 | Fox 晶振 | C1BA | 46 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI47.0-T3 | Fox 晶振 | C1BA | 47 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI48.0-T3 | Fox 晶振 | C1BA | 48 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI49.0-T3 | Fox 晶振 | C1BA | 49 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI50.0-T3 | Fox 晶振 | C1BA | 50 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
