首页欧美晶振 FOX晶振FOX晶振,FC3BACBDI40.0-T3,6G基站晶振

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振

频率：40MHz
尺寸：3.2×2.5mm
应　用： FOX晶振,欧美进口晶振,C3BA贴片石英晶振,FC3BACBDI40.0-T3晶振,3225mm晶振,无源晶振,频率40MHz,负载8pF,频率稳定性30ppm,工作温度-40~125°C,小体积晶振,耐高温晶振,6G基站晶振,汽车影音系统晶振,GPS导航晶振, 光收发...

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振,FOX晶振,欧美进口晶振,C3BA贴片石英晶振,FC3BACBDI40.0-T3晶振,3225mm晶振,无源晶振,频率40MHz,负载8pF,频率稳定性30ppm,工作温度-40~125°C,小体积晶振,耐高温晶振,6G基站晶振,汽车影音系统晶振,GPS导航晶振, 光收发器晶振.
FOX晶振,FC3BACBDI40.0-T3,6G基站晶振特点：
AEC Q200合格
TS-16949质量管理体系
公差低至±10ppm
稳定性低至±20 PPM

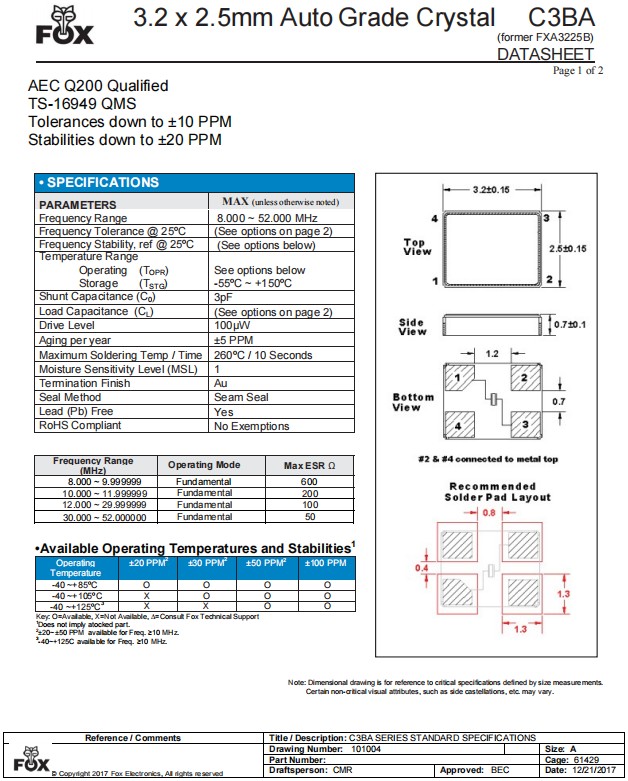

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振规格表

参数	数值
标准频率	40MHz
频率容差	30ppm
频率稳定性	50ppm
工作温度	−40~+125°C
储存温度	−55~+150°C
老化	±5ppm
负载	8pF
并联电容	3pF Max
激励功率	100 µW MAX
湿度敏感等级(MSL)	1
湿度敏感等级(MSL)	1
最大焊接温度/时间	260ºC / 10 Seconds
无铅	Yes
通过无铅认证	No Exemptions

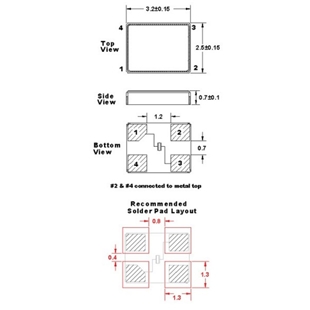

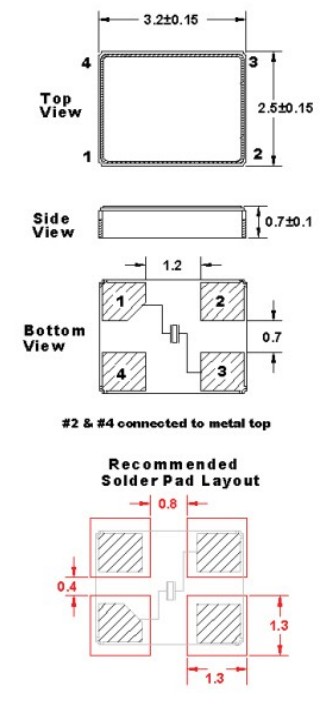

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振尺寸图

制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容	工作温度
FC3BACBDI40.0-T3	Fox 晶振	C3BA	40 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
FC3BACAGI08.0-T3	Fox 晶振	C3BA	8 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI09.0-T3	Fox 晶振	C3BA	9 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI10.0-T3	Fox 晶振	C3BA	10 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI11.0-T3	Fox 晶振	C3BA	11 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI12.0-T3	Fox 晶振	C3BA	12 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI13.0-T3	Fox 晶振	C3BA	13 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI14.0-T3	Fox 晶振	C3BA	14 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI15.0-T3	Fox 晶振	C3BA	15 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI16.0-T3	Fox 晶振	C3BA	16 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI17.0-T3	Fox 晶振	C3BA	17 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI18.0-T3	Fox 晶振	C3BA	18 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI19.0-T3	Fox 晶振	C3BA	19 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI20.0-T3	Fox 晶振	C3BA	20 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI21.0-T3	Fox 晶振	C3BA	21 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI22.0-T3	Fox 晶振	C3BA	22 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI23.0-T3	Fox 晶振	C3BA	23 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI24.0-T3	Fox 晶振	C3BA	24 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI25.0-T3	Fox 晶振	C3BA	25 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI26.0-T3	Fox 晶振	C3BA	26 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI27.0-T3	Fox 晶振	C3BA	27 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI28.0-T3	Fox 晶振	C3BA	28 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI29.0-T3	Fox 晶振	C3BA	29 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI30.0-T3	Fox 晶振	C3BA	30 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI31.0-T3	Fox 晶振	C3BA	31 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI32.0-T3	Fox 晶振	C3BA	32 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI33.0-T3	Fox 晶振	C3BA	33 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI34.0-T3	Fox 晶振	C3BA	34 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI35.0-T3	Fox 晶振	C3BA	35 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI36.0-T3	Fox 晶振	C3BA	36 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI37.0-T3	Fox 晶振	C3BA	37 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI38.0-T3	Fox 晶振	C3BA	38 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
