FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振
- 频率：32MHz
- 尺寸：5.0×3.2mm
- 应 用： FOX进口晶振,C5BA无源晶振,FC5BACBEI32.0-T1晶振,石英晶体谐振器,5032贴片晶振,频率32MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,耐高温晶振,高品质晶振,6G无线通信晶振,汽车音响控制器晶振,车载CCD相机晶振, ...
-
-
FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振,FOX进口晶振,C5BA无源晶振,FC5BACBEI32.0-T1晶振,石英晶体谐振器,5032贴片晶振,频率32MHz,负载10pF,频率稳定性30ppm,工作温度-40~125°C,耐高温晶振,高品质晶振,6G无线通信晶振,汽车音响控制器晶振,车载CCD相机晶振, 电信交换机晶振.
FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振特点
•AEC Q200合格
•TS-16949质量管理体系
•公差低至±10ppm
•稳定性低至±20 PPM
•温度范围-40°C ~ +125°C
FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振规格表
| 参数 | 数值 |
| 标准频率 | 32MHz |
| 频率容差 | 30ppm |
| 频率稳定性 | 50ppm |
| 工作温度 | −40~+125°C |
| 储存温度 | −55~+150°C |
| 老化 | ±5ppm |
| 负载 | 10pF |
| 并联电容 | 5pF Max |
| 激励功率 | 100 µW Typical |
| 湿度敏感等级(MSL) | 1 |
| 最大焊接温度/时间 |
260ºC / 10 Seconds
|
| 无铅 |
Yes
|
| 通过无铅认证 |
Yes
|
.jpg)

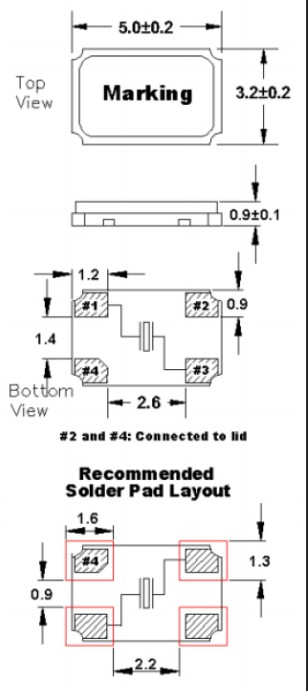

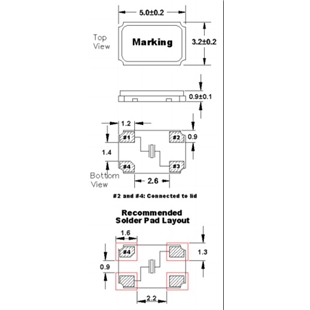

FOX进口晶振,FC5BACBEI32.0-T1,6G无线通信晶振尺寸图
| 制造商零件编号 | 供应商 | 系列 | 频率 | 频率稳定性 | 频率容差 | 负载电容 | 工作温度 |
| FC5BACBEI11.0-T1 | Fox 晶振 | C5BA | 11 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI12.0-T1 | Fox 晶振 | C5BA | 12 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI13.0-T1 | Fox 晶振 | C5BA | 13 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI14.0-T1 | Fox 晶振 | C5BA | 14 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI15.0-T1 | Fox 晶振 | C5BA | 15 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI16.0-T1 | Fox 晶振 | C5BA | 16 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI17.0-T1 | Fox 晶振 | C5BA | 17 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI18.0-T1 | Fox 晶振 | C5BA | 18 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI19.0-T1 | Fox 晶振 | C5BA | 19 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI20.0-T1 | Fox 晶振 | C5BA | 20 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI21.0-T1 | Fox 晶振 | C5BA | 21 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI22.0-T1 | Fox 晶振 | C5BA | 22 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI23.0-T1 | Fox 晶振 | C5BA | 23 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI24.0-T1 | Fox 晶振 | C5BA | 24 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI25.0-T1 | Fox 晶振 | C5BA | 25 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI26.0-T1 | Fox 晶振 | C5BA | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI27.0-T1 | Fox 晶振 | C5BA | 27 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI28.0-T1 | Fox 晶振 | C5BA | 28 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI29.0-T1 | Fox 晶振 | C5BA | 29 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI30.0-T1 | Fox 晶振 | C5BA | 30 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI31.0-T1 | Fox 晶振 | C5BA | 31 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI32.0-T1 | Fox 晶振 | C5BA | 32 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI33.0-T1 | Fox 晶振 | C5BA | 33 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI34.0-T1 | Fox 晶振 | C5BA | 34 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI35.0-T1 | Fox 晶振 | C5BA | 35 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI36.0-T1 | Fox 晶振 | C5BA | 36 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI37.0-T1 | Fox 晶振 | C5BA | 37 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI38.0-T1 | Fox 晶振 | C5BA | 38 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI39.0-T1 | Fox 晶振 | C5BA | 39 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI40.0-T1 | Fox 晶振 | C5BA | 40 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACALI12.0-T1 | Fox 晶振 | C5BA | 12 MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 125°C |
| FC5BACAGI12.0-T1 | Fox 晶振 | C5BA | 12 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
.jpg)
.jpg)
