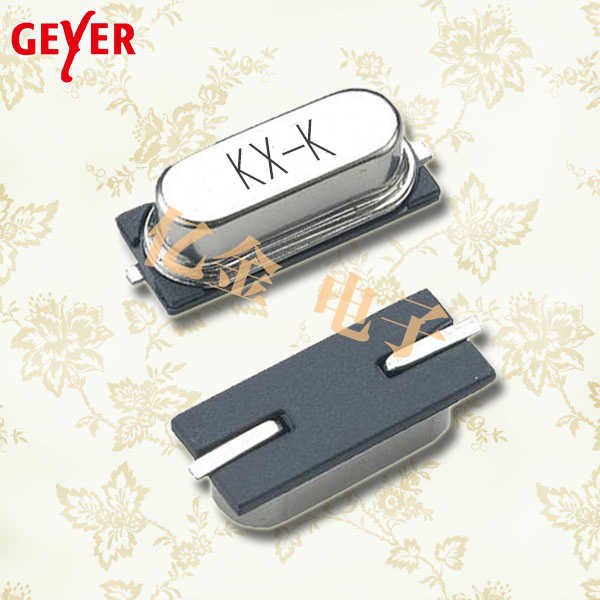

格耶德国晶振,KX-K无源贴片晶振,49SMD石英晶振，普通贴片石英晶振外观使用金属材料封装的,具有高稳定性,高可靠性的石英晶体振荡器,晶振外观本身使用金属封装,充分的密封性能,可确保其高可靠性,采用编带包装,外包装采用朔胶盘,可在自动贴片机上对应自动贴装等优势.
    GEYER晶振作为一个可靠的，成功的合作伙伴，我们非常重视在开发阶段与客户的密切合作。这使我们能够确保我们能够为您提供您想要的和需要的。

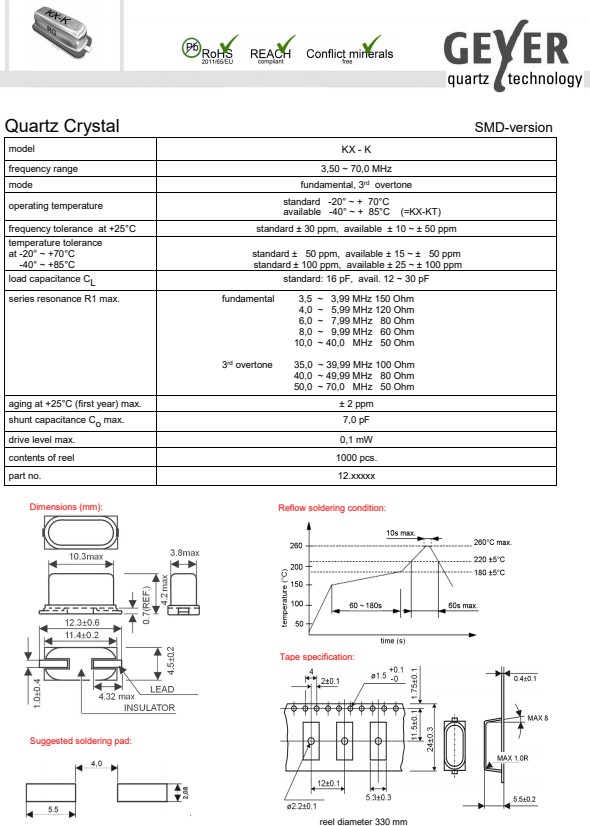

model	KX - K
frequency range	3,50 ~ 70,0 MHz
mode	fundamental, 3rd overtone upon request
operating temperature	standard -20° ~ + 70°C  available -40° ~ + 85°C (=KX-KT)
frequency tolerance at +25°C	standard ± 30 ppm, available ± 10 ~ ± 50 ppm
temperature tolerance at -20° ~ +70°C  -40° ~ +85°C	standard ± 50 ppm, available ± 15 ~ ± 50 ppm standard ± 100 ppm, available ± 25 ~ ± 100 ppm
load capacitance CL	standard: 16 pF, avail. 12 ~ 30 pF
series resonance R1 max.	fundamental 3,5 ~ 3,99 MHz 150 Ohm  4,0 ~ 5,99 MHz 120 Ohm  6,0 ~ 7,99 MHz 80 Ohm  8,0 ~ 9,99 MHz 60 Ohm  10,0 ~ 40,0 MHz 50 Ohm  3rd overtone 35,0 ~ 39,99 MHz 100 Ohm  40,0 ~ 49,99 MHz 80 Ohm  50,0 ~ 70,0 MHz 50 Ohm
aging at +25°C (first year) max.	± 2 ppm
shunt capacitance Co max.	7,0 pF
drive level in mW max.	0,1 mW
contents of reel	1000 pcs.
part no.	12.xxxxx

  GEYER晶振注意事项：
