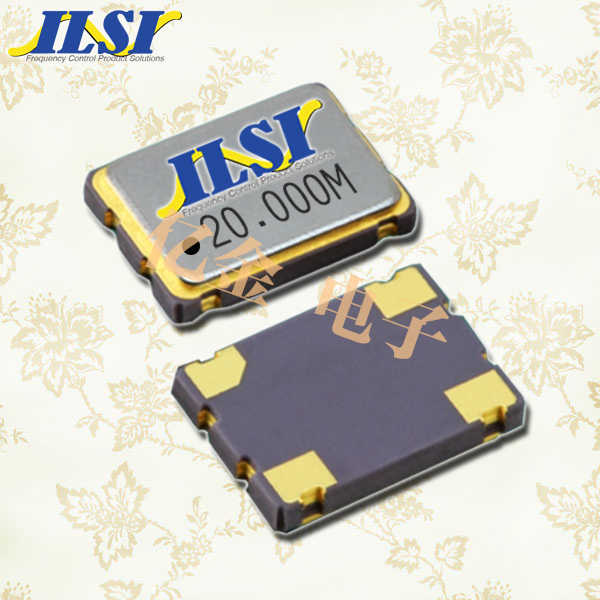

    ILSI Crystal|ISM41-2A3-49.152000 MHz|7050有源晶振

    • 频率：49.152MHz
    • 尺寸：7.0×5.0mm
    • 应　用： ILSI Crystal,ISM41进口有源晶振,石英晶体振荡器,ISM41-2A3-49.152000 MHz晶振,LVCMOS输出晶振,7050mm晶振,四脚贴片晶振,SMD晶体,频率49.152MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,低相位噪声晶振,无铅环保...
    • RoHS RoHS2


    ILSI Crystal|ISM41-2A3-49.152000 MHz|7050有源晶振,ILSI Crystal,ISM41进口有源晶振,石英晶体振荡器,ISM41-2A3-49.152000 MHz晶振,LVCMOS输出晶振,7050mm晶振,四脚贴片晶振,SMD晶体,频率49.152MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,低相位噪声晶振,无铅环保晶振,高稳定性晶振,数字音频晶振,Sonet/SDH晶振,无线局域网晶振,高清视频设备晶振.
    ILSI Crystal|ISM41-2A3-49.152000 MHz|7050有源晶振特点
    ●频率范围:20.000MHz至50.000MHZ
    ●电源电压，1.8Vdc, 2.5Vdc, 3.3Vdc
    ●引脚1上的三态功能
    ●超低相位抖动和相位噪声
    ●行业标准5.0mm x 7.0mm封装
    ●LVCMOS输出
    ●符合RoHS和REACH标准

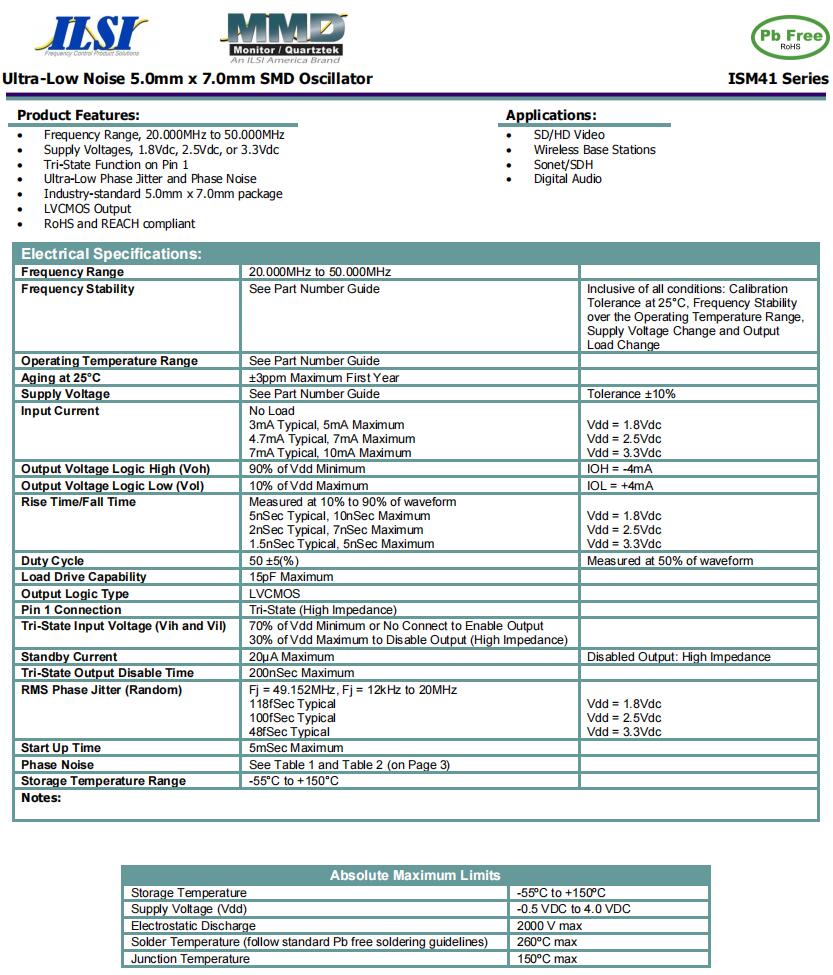

    ILSI Crystal|ISM41-2A3-49.152000 MHz|7050有源晶振规格表
    Electrical Specifications:
    Frequency Range 49.152MHz
    Frequency Stability
    土25 ppm

    Operating Temperature Range -40°C to +85°C
    Aging at 25°c +3ppm Maximum First Year
    Supply Voltage 3.3V Tolerance +10%
    Input Current No Load
    3mA Typical, 5mA Maximum
    4.7mA Typical, 7mA Maximum
    7mA Typical, 10mA Maximum
    Vdd= 1.8Vdc
    Vdd= 2.5Vdc
    Vdd = 3.3Vdc
    Output Voltage Logic High(Voh) 90% of Vdd Minimum IOH=-4mA
    Output Voltage Logic Low(Vol) 10% of Vdd Maximum IOL=+4mA
    Rise Time/Fall Time Measured at 10% to 90% of waveform
    5nSec Typical, 10nSec Maximum
    2nSec Typical, 7nSec Maximum
    1.5nSec Typical, 5nSec Maximum
    Vdd= 1.8Vdc
    Vdd = 2.5Vdc
    Vdd= 3.3Vdc
    Duty Cycle 50+5(%) Measured at 50% of wavefomm
    Load Drive Capability 15pF Maximum
    Output Logic Type LVCMOS
    Pin 1 Connection Tri-State (High lmpedance)
    Tri-State Input Voltage (Vih and Vil) 70% of Vdd Minimum or No Connect to Enable Output
    30% of Vdd Maximum to Disable Output (High lmpedance)
    Standby Current 20uA Maximum Disabled Output High lmpedance
    Tri-State Output Disable Time 200nSec Maximum
    RMS Phase Jitter(Random) Fi= 49.152MHz.Fi= 12kHz to 20MHz
    118fSec Typical
    100fSec Typical
    48fSec Typical
    Vdd= 1.8Vdc
    Vdd = 2.5Vdc
    Vdd= 3.3Vdc
    Start Up Time 5mSec Maximum
    Phase Noise See Table 1 and Table 2 (on Page 3)
    Storage Temperature Range -55°C to +150°C

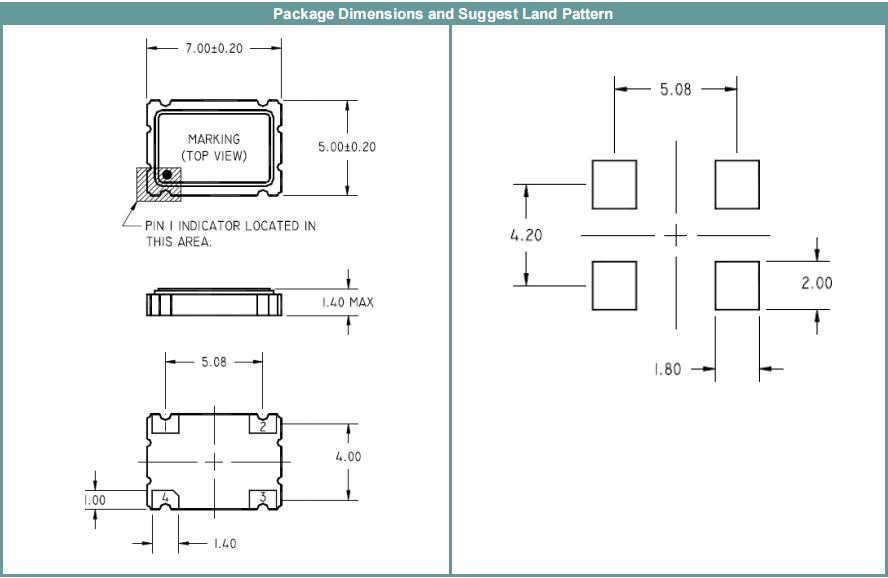

    ILSI Crystal|ISM41-2A3-49.152000 MHz|7050有源晶振尺寸图

    原厂编码 品牌 型号 工作温度 频率 频率容差 负载
    HC49USM-BA1F12- 24.000 MHz ILSI HC49USM 0°C ~ 70°C 24 MHz ±50ppm 12 pF
    HC49USM-BA3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm 18 pF
    HC49USM-BA5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±50ppm 18 pF
    HC49USM-BB3F10- 13.52313 MHz ILSI HC49USM -20°C ~ 70°C 13.52313 MHz ±50ppm 10 pF
    HC49USM-BB5F20- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±50ppm 20 pF
    HC49USM-FB1F18- 8.000 MHz ILSI HC49USM 0°C ~ 70°C 8 MHz ±30ppm 18 pF
    HC49USM-FB1F18- 28.224 MHz ILSI HC49USM 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
    HC49USM-FB1F20- 3.6864 MHz ILSI HC49USM 0°C ~ 70°C 3.6864 MHz ±30ppm 20 pF
    HC49USM-FB2F30- 4.000 MHz ILSI HC49USM -10°C ~ 60°C 4 MHz ±30ppm 30 pF
    HC49USM-FB2F30- 8.000 MHz ILSI HC49USM -10°C ~ 60°C 8 MHz ±30ppm 30 pF
    HC49USM-FB3F10- 9.650 MHz ILSI HC49USM -20°C ~ 70°C 9.65 MHz ±30ppm 10 pF
    HC49USM-FB3F18- 4.545 MHz ILSI HC49USM -20°C ~ 70°C 4.545 MHz ±30ppm 18 pF
    HC49USM-FB3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
    HC49USM-FB3F18- 25.175 MHz ILSI HC49USM -20°C ~ 70°C 25.175 MHz ±30ppm 18 pF
    HC49USM-FB3F20- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 20 pF
    HC49USM-FB3F20- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 20 pF
    HC49USM-FB3F20- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 20 pF
    HC49USM-FB5F18- 3.579545 MHz ILSI HC49USM -40°C ~ 85°C 3.579545 MHz ±30ppm 18 pF
    HC49USM-FB5F18- 4.194304 MHz ILSI HC49USM -40°C ~ 85°C 4.194304 MHz ±30ppm 18 pF
    HC49USM-FB5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
    HC49USM-FB5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
    HC49USM-FB5F20- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 20 pF
    HC49USM-FB5F20- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 20 pF
    HC49USM-FB5F20- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 20 pF
    HC49USM-FB5F20- 12.288 MHz ILSI HC49USM -40°C ~ 85°C 12.288 MHz ±30ppm 20 pF
    HC49USM-FB5F20- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 20 pF
    HC49USM-FF3F18- 3.6864 MHz ILSI HC49USM -20°C ~ 70°C 3.6864 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 4.000 MHz ILSI HC49USM -20°C ~ 70°C 4 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 4.9152 MHz ILSI HC49USM -20°C ~ 70°C 4.9152 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 6.144 MHz ILSI HC49USM -20°C ~ 70°C 6.144 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 7.3728 MHz ILSI HC49USM -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 11.0592 MHz ILSI HC49USM -20°C ~ 70°C 11.0592 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 12.000 MHz ILSI HC49USM -20°C ~ 70°C 12 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 14.7456 MHz ILSI HC49USM -20°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 16.000 MHz ILSI HC49USM -20°C ~ 70°C 16 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 18.432 MHz ILSI HC49USM -20°C ~ 70°C 18.432 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 20.000 MHz ILSI HC49USM -20°C ~ 70°C 20 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
    HC49USM-FF3F18- 9.909116 MHz ILSI HC49USM -20°C ~ 70°C 9.909116 MHz ±30ppm 18 pF
    HC49USM-FF5F10- 9.81713 MHz ILSI HC49USM -40°C ~ 85°C 9.81713 MHz ±30ppm 10 pF
    HC49USM-FF5F18- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 3.93216 MHz ILSI HC49USM -40°C ~ 85°C 3.93216 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 4.000 MHz ILSI HC49USM -40°C ~ 85°C 4 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 6.000 MHz ILSI HC49USM -40°C ~ 85°C 6 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 7.3728 MHz ILSI HC49USM -40°C ~ 85°C 7.3728 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 10.000 MHz ILSI HC49USM -40°C ~ 85°C 10 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 14.7456 MHz ILSI HC49USM -40°C ~ 85°C 14.7456 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 18.432 MHz ILSI HC49USM -40°C ~ 85°C 18.432 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
    HC49USM-FF5F18- 25.000 MHz ILSI HC49USM -40°C ~ 85°C 25 MHz ±30ppm 18 pF
    IL3X-HX5F12.5- 32.768 KHz ILSI IL3X -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
    IL3X2-HX5F12.5- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
    IL3X2-HX5F6- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
    IL3X2-HX5F7- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
    IL3X2-HX5F9- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
    ILCX04-FB1F18- 27.000 MHz ILSI ILCX04 0°C ~ 70°C 27 MHz ±30ppm 18 pF
    ILCX04-FB1F18- 28.224 MHz ILSI ILCX04 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
    ILCX04-FB3F18- 7.3728 MHz ILSI ILCX04 -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
    ILCX04-FB5F20- 22.1184 MHz ILSI ILCX04 -40°C ~ 85°C 22.1184 MHz ±30ppm 20 pF
    ILCX04-FB5F20- 25.000 MHz ILSI ILCX04 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
    ILCX04-FB5F20- 6.000 MHz ILSI ILCX04 -40°C ~ 85°C 6 MHz ±30ppm 20 pF
    ILCX04-FF1F20- 8.000 MHz ILSI ILCX04 0°C ~ 70°C 8 MHz ±30ppm 20 pF
    ILCX04-JH5F18- 8.000 MHz ILSI ILCX04 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
    ILCX07-BB3F12- 16.000 MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±50ppm 12 pF
    ILCX07-FB3F13-16.000MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±30ppm 13 pF
    ILCX07-FB5F12- 20.000 MHz ILSI ILCX07 -40°C ~ 85°C 20 MHz ±30ppm 12 pF
    ILCX07-FF1F20- 25.000 MHz ILSI ILCX07 0°C ~ 70°C 25 MHz ±30ppm 20 pF
    ILCX07-FF3F16- 9.984 MHz ILSI ILCX07 -20°C ~ 70°C 9.984 MHz ±30ppm 16 pF
    ILCX07-FF3F16- 10.78125 MHz ILSI ILCX07 -20°C ~ 70°C 10.78125 MHz ±30ppm 16 pF
    ILCX07-FF3F16- 13.560 MHz ILSI ILCX07 -20°C ~ 70°C 13.56 MHz ±30ppm 16 pF
    ILCX07-FF5F12.5-8.000MHz ILSI ILCX07 -40°C ~ 85°C 8 MHz ±30ppm 12 pF
    ILCX07-FF5F18- 24.000 MHz ILSI ILCX07 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
    ILCX07-FF5F18- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
    ILCX07-FF5F20- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
    ILCX07-HB3F18- 20.000 MHz ILSI ILCX07 -20°C ~ 70°C 20 MHz ±20ppm 18 pF
    ILCX07-HB3F18- 27.000 MHz ILSI ILCX07 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
    ILCX07-JJ2F10- 8.000 MHz ILSI ILCX07 -10°C ~ 60°C 8 MHz ±10ppm 10 pF
    ILCX07-JJ3F10- 12.000 MHz ILSI ILCX07 -20°C ~ 70°C 12 MHz ±10ppm 10 pF
    ILCX07A-FB1F12- 18.432 MHz ILSI ILCX07A 0°C ~ 70°C 18.432 MHz ±30ppm 12 pF
    ILCX07A-FB3F18- 12.000 MHz ILSI ILCX07A -20°C ~ 70°C 12 MHz ±30ppm 18 pF
    ILCX07B-FB1F18- 14.7456 MHz ILSI ILCX07B 0°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
    ILCX07B-FB1F18-27.120MHz ILSI ILCX07B 0°C ~ 70°C 27.12 MHz ±30ppm 18 pF
    ILCX07B-FB5F20- 29.4912 MHz ILSI ILCX07B -40°C ~ 85°C 29.4912 MHz ±30ppm 20 pF
    ILCX08-HH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±20ppm 18 pF
    ILCX08-JG5F18- 24.000 MHz ILSI ILCX08 -40°C ~ 85°C 24 MHz ±10ppm 18 pF
    ILCX08-JH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
    ILCX08-JH5F18- 16.000 MHz ILSI ILCX08 -40°C ~ 85°C 16 MHz ±10ppm 18 pF
    ILCX13-BB5F10- 12.000000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±50ppm 10 pF
    ILCX13-BB5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm 10 pF
    ILCX13-BB5F10- 49.152 MHz ILSI ILCX13 -40°C ~ 85°C 49.152 MHz ±50ppm 10 pF
    ILCX13-BH3F18- 12.000 MHZ ILSI ILCX13 -20°C ~ 70°C 12 MHz ±50ppm 18 pF
    ILCX13-FB5F15- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 15 pF
    ILCX13-FB5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
    ILCX13-FB5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
    ILCX13-FB5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
    ILCX13-FB5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
    ILCX13-FF3F10- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±30ppm 10 pF
    ILCX13-FF3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±30ppm 8 pF
    ILCX13-FF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
    ILCX13-FF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
    ILCX13-FF5F18- 20.000 MHz ILSI ILCX13 -40°C ~ 85°C 20 MHz ±30ppm 18 pF
    ILCX13-FF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
    ILCX13-FF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
    ILCX13-FF5F18- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±30ppm 18 pF
    ILCX13-HB3F18- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±20ppm 18 pF
    ILCX13-HB3F18- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±20ppm 18 pF
    ILCX13-HF3F18- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±20ppm 18 pF
    ILCX13-HF3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
    ILCX13-HF5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 10 pF
    ILCX13-HF5F12- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 12 pF
    ILCX13-HF5F12- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 12 pF
    ILCX13-HF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 18 pF
    ILCX13-HF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±20ppm 18 pF
    ILCX13-HF5F18- 22.1184 MHz ILSI ILCX13 -40°C ~ 85°C 22.1184 MHz ±20ppm 18 pF
    ILCX13-HF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
    ILCX13-HF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 18 pF
    ILCX13-HF5F18- 48.000 MHz ILSI ILCX13 -40°C ~ 85°C 48 MHz ±20ppm 18 pF
    ILCX13-HG5F19 -50.2232 MHz ILSI ILCX13 -40°C ~ 85°C 50.2232 MHz ±20ppm 19 pF
    ILCX13-HH3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
    ILCX13-HH3F18- 27.000 MHz ILSI ILCX13 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
    ILCX13-HH3F8- 10.77938 MHz ILSI ILCX13 -20°C ~ 70°C 10.77938 MHz ±20ppm 8 pF
    ILCX13-HH3F8- 10.78125 MHz ILSI ILCX13 -20°C ~ 70°C 10.78125 MHz ±20ppm 8 pF
    ILCX13-HH5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
    ILCX13-IH1F12- 24.000 MHz ILSI ILCX13 0°C ~ 70°C 24 MHz ±15ppm 12 pF
    ILCX13-IH1F12- 25.000 MHz ILSI ILCX13 0°C ~ 70°C 25 MHz ±15ppm 12 pF
    ILCX13-II3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±15ppm 8 pF
    ILCX13-II5F8- 40.000 MHz ILSI ILCX13 -40°C ~ 85°C 40 MHz ±15ppm 8 pF
    ILCX13-JH5F8-39.000 MHz ILSI ILCX13 -40°C ~ 85°C 39 MHz ±10ppm 8 pF
    ILCX13-JI1F9- 32.000 MHz ILSI ILCX13 0°C ~ 70°C 32 MHz ±10ppm 9 pF
    ILCX13-JI5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±10ppm 10 pF
    ILCX13-JI5F8- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
    ILCX13-JI5F9- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±10ppm 9 pF
    ILCX13-JJ2F10-30.000 MHz ILSI ILCX13 -10°C ~ 60°C 30 MHz ±10ppm 10 pF
    ILCX13-JJ2F7- 16.000 MHz ILSI ILCX13 -10°C ~ 60°C 16 MHz ±10ppm 7 pF
    ILCX13-JJ3F10- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 10 pF
    ILCX13-JJ3F10- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±10ppm 10 pF
    ILCX13-JJ3F16- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 16 pF
    ILCX13-JJ3F4- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±10ppm 4 pF
    ILCX13-JJ3F9- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 9 pF
    ILCX18-FF3F18- 25.000 MHz ILSI ILCX18 -20°C ~ 70°C 25 MHz ±30ppm 18 pF
    ILCX18-FF5F18- 16.000 MHz ILSI ILCX18 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
    ILCX18-FF5F18- 25.000 MHz ILSI ILCX18 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
    ILCX18-JI5F8- 32.000 MHz ILSI ILCX18 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
