首页欧美晶振 Jauch晶振JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

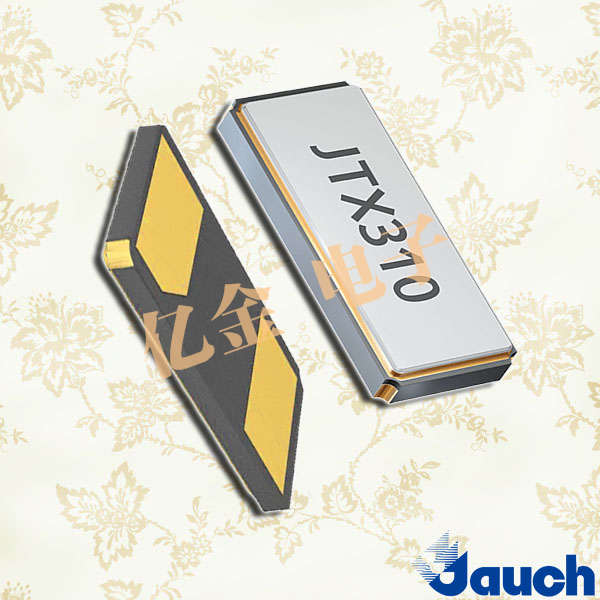

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

频率：32.768KHz

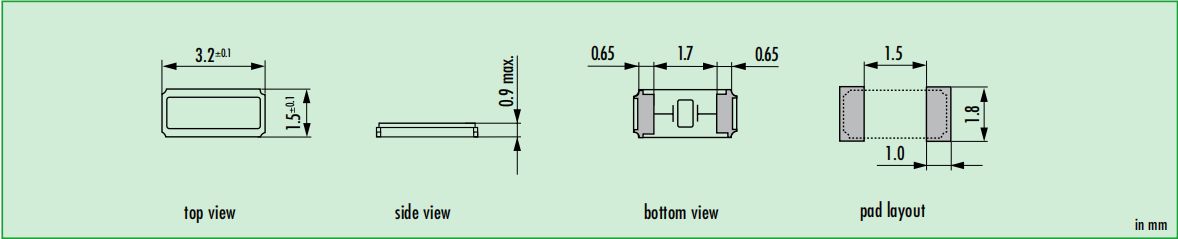

尺寸：3215mm
应　用： JTX310|Q0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|，欧美进口晶振，32.768kHz，可选的额外防震版本，回流焊温度：最大260C。n个包装高度，最大0.9mm。SMD调谐音叉晶体3.2x1.5毫米JTX310|Q...

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|，欧美进口晶振，32.768 kHz，可选的额外防震版本，回流焊温度：最大260°C。n个包装高度，最大0.9 mm。SMD调谐音叉晶体·3.2 x 1.5毫米

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

type	JTX310
frequency	32.768 kHz
frequency tolerance at 25 °C ± 5 °C	± 10 ppm / ± 20 ppm / ± 30 ppm
load capacitance CL	12.5 pF std. (6 pF ~ 9 pF on request)
temperature constant (TC)	TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical
temperature constant (TC)	TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical
frequency temperature characteristic	Δf = TC · (TA - TTP)2 in [ppm] TA = actual ambient temperature TTP = 25 °C ± 5 °C TTP = turning point temperature
frequency temperature characteristic
operating temperature range	refer to frequency stability table
shunt capacitance Co	1.15 pF typical
series resistance max. (ESR)	70 kΩ (60 kΩ ask if available) 80 kΩ for temperature range T2 and T3
storage temperature	-55 °C ~ +125 °C
drive level max.	0.5 µW
aging first year	< ± 3 ppm

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

JAUCH原厂编码	型号	频率	频率偏差	负载电荷
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-9-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-7-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-9-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-7-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-9-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-7-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-6-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX310-6-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX210-12.5-20-T1-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX210-9-20-T1-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-6-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-12.5-20-T2-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-9-20-T2-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-9-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-7-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-9-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX210-12.5-20-T3-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-9-20-T3-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-7-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-9-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-7-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-6-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
Q 0.032768-JTX310-6-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
Q 0.032768-JTX310-6-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
