首页欧美晶振 Jauch晶振Q 32.0-JXS32-12-10/10-FU-WA-LF 3225 32MHz 12PF 10PPM

Q 32.0-JXS32-12-10/10-FU-WA-LF 3225 32MHz 12PF 10PPM

频率：32MHz
尺寸：3225
应　用： Q32.0-JXS32-12-10/10-FU-WA-LF322532MHz12PF10PPM，欧美进口晶振，接缝密封陶瓷/金属封装，扩展温度范围可用，高机械可靠性类型可用，用于汽车类型，见汽车数据表Q32.0-JXS32-12-10/10-FU-WA-LF322532MHz12PF10PPMty...

Q 32.0-JXS32-12-10/10-FU-WA-LF 3225 32MHz 12PF 10PPM，欧美进口晶振，接缝密封陶瓷/金属封装，扩展温度范围可用，高机械可靠性类型可用，用于汽车类型，见汽车数据表

Q 32.0-JXS32-12-10/10-FU-WA-LF 3225 32MHz 12PF 10PPM

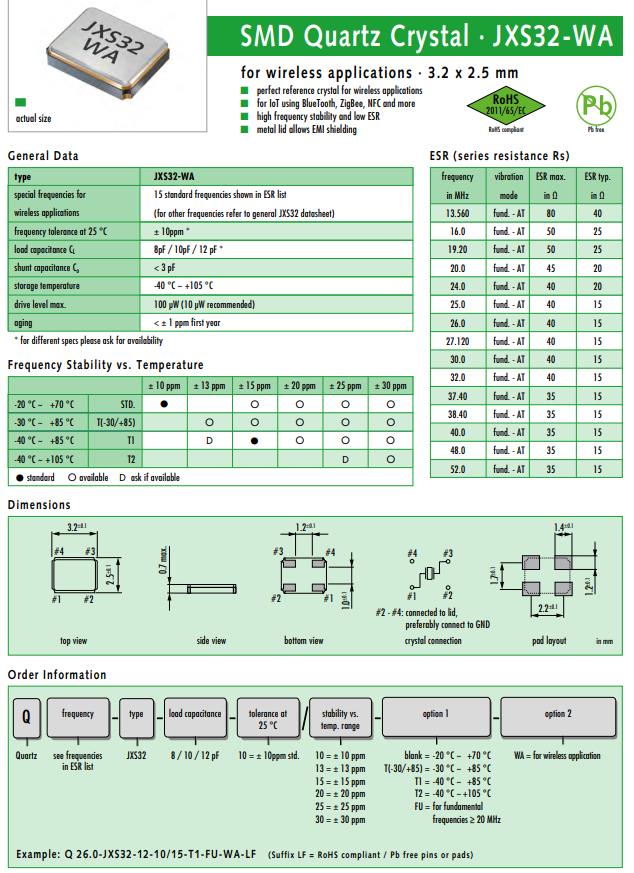

type		JXS32
frequency range		10.0 ~ 54.0 MHz (fund. AT-cut)
frequency tolerance at 25 °C		± 10 ppm / ± 30 ppm
load capacitance CL		12 pF standard (option: 8 pF ~ 30 pF / series)
shunt capacitance Co		< 5 pF
storage temperature		-40 °C ~ +90 °C
drive level max.		100 µW
aging		< ± 3 ppm first year

Q 32.0-JXS32-12-10/10-FU-WA-LF 3225 32MHz 12PF 10PPM

JAUCH原厂编码	生产厂商	型号	频率	频率偏差	负载电荷
Q 19.2-JXS32-10-10/10-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS32-12-10/10-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS32-8-10/10-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS32-9-10/10-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS32-10-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	10pF
Q 20.0-JXS32-12-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	12pF
Q 20.0-JXS32-8-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	8pF
Q 20.0-JXS32-9-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	9pF
Q 24.0-JXS32-10-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	10pF
Q 24.0-JXS32-12-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	12pF
Q 24.0-JXS32-8-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	8pF
Q 24.0-JXS32-9-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	9pF
Q 26.0-JXS32-10-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	10pF
Q 26.0-JXS32-12-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	12pF
Q 26.0-JXS32-8-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	8pF
Q 26.0-JXS32-9-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	9pF
Q 27.12-JXS32-10-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS32-12-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS32-8-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS32-9-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS32-10-10/10-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	10pF
Q 16.0-JXS32-12-10/10-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	12pF
Q 16.0-JXS32-8-10/10-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	8pF
Q 16.0-JXS32-9-10/10-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	9pF
Q 38.4-JXS32-10-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	38.4MHz	±10ppm	10pF
Q 38.4-JXS32-12-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	38.4MHz	±10ppm	12pF
Q 38.4-JXS32-8-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	38.4MHz	±10ppm	8pF
Q 38.4-JXS32-9-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	38.4MHz	±10ppm	9pF
Q 32.0-JXS32-10-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	32MHz	±10ppm	10pF
Q 32.0-JXS32-12-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	32MHz	±10ppm	12pF
Q 32.0-JXS32-8-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	32MHz	±10ppm	8pF
Q 32.0-JXS32-9-10/10-FU-WA-LF	Jauch Quartz	JXS32-WA	32MHz	±10ppm	9pF
Q 19.2-JXS32-10-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS32-12-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS32-8-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS32-9-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	10pF
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	12pF
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	8pF
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	20MHz	±10ppm	9pF
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	10pF
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	12pF
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	8pF
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	24MHz	±10ppm	9pF
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	10pF
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	12pF
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	8pF
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	26MHz	±10ppm	9pF
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF	Jauch Quartz	JXS32-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS32-10-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	10pF
Q 16.0-JXS32-12-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	12pF
Q 16.0-JXS32-8-10/15-T1-WA-LF	Jauch Quartz	JXS32-WA	16MHz	±10ppm	8pF
