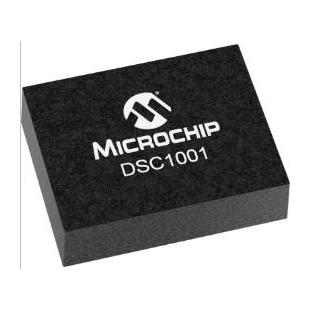

    DSC1001DI2-038.4000-Microchip品牌-6G网络终端晶振

    • 频率：38.4MHz
    • 尺寸：2.5×2.0mm
    • 应　用： 欧美进口晶振,Microchip晶振,DSC1001贴片晶振,DSC1001DI2-038.4000晶振,有源晶振,SPXO晶体振荡器,2520mm晶振,SMD晶体,频率38.4MHz,电压1.8~3.3V,工作温度-40~85°C,频率稳定性25ppm,轻薄小晶振,抗冲击晶振,抗震动晶振...
    • RoHS RoHS2

    DSC1001DI2-038.4000-Microchip品牌-6G网络终端晶振,欧美进口晶振,Microchip晶振,DSC1001贴片晶振,DSC1001DI2-038.4000晶振,有源晶振,SPXO晶体振荡器,2520mm晶振,SMD晶体,频率38.4MHz,电压1.8~3.3V,工作温度-40~85°C,频率稳定性25ppm,轻薄小晶振,抗冲击晶振,抗震动晶振,6G网络终端晶振,医疗电子设备晶振,可穿戴设备晶振,专业视频设备晶振.
    DSC1001DI2-038.4000-Microchip品牌-6G网络终端晶振特点：
    •频率范围:1mhz ~ 150mhz
    •特殊的温度稳定性-±10ppm，±20ppm，±25ppm，±50ppm
    •工作电压- 1.7 ~ 3.6V
    •工作温度范围
    -Ext.工业- 40°C至105°C
    -工业用- 40℃~ 85℃
    -商用—20℃~ 70℃
    •低工作和待机电流
    - 6ma工作(1mhz)
    - 15µA待机(最大)
    •超微型足迹
    - 2.5 mm × 2.0 mm × 0.85 mm
    - 3.2 mm × 2.5 mm × 0.85 mm
    - 5.0 mm × 3.2 mm × 0.85 mm
    - 7.0 mm × 5.0 mm × 0.85 mm
    •MIL-STD 883抗冲击和振动
    •无铅，RoHS，达到SVHC标准
    •AEC-Q100

    DSC1001DI2-038.4000-Microchip品牌-6G网络终端晶振规格表
    项目 规格说明 条件
    额定频率 38.4MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +85℃
    频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 15µA Max T = +25°C
    负载 15pf
    空载电流 16.6mA 150 MHz
    输出逻辑电平低（Vol） 0.2x VDD  Max –4 mA, DSC1001, CL = 15 pF
    输出逻辑电平高（Voh） 0.8x VDD  Max –4 mA, DSC1001, CL = 15 pF
    输出上升下降时间 2ns Max DSC1001, CL = 15 pF
    起始时间 10ms Max
    抖动最大Cycle-to-Cycle 50ps Typ f = 100 MHz
    周期抖动 10ps 100MHz,RMS

    DSC1001DI2-038.4000-Microchip品牌-6G网络终端晶振尺寸图


    原厂代码 晶振品牌 型号 频率 电压 尺寸
    DSC1001CI2-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-018.4320 Microchip Technology DSC1001 18.432MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC1-047.3333 Microchip Technology DSC1001 47.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BC1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001DI1-001.8432 Microchip Technology DSC1001 1.8432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-038.4000 Microchip Technology DSC1001 38.4MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-033.3333 Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DE5-018.4320 Microchip Technology DSC1001 18.432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI2-066.6666B Microchip Technology DSC1001 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-066.6666B Microchip Technology DSC1001 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-066.6666B Microchip Technology DSC1001 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-026.0000T Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-026.0000T Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-026.0000T Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-004.0960T Microchip Technology DSC1001 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-004.0960T Microchip Technology DSC1001 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-004.0960T Microchip Technology DSC1001 4.096MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-075.0000 Microchip Technology DSC1001 75MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-133.3330 Microchip Technology DSC1001 133.333MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-080.0000 Microchip Technology DSC1001 80MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CL2-012.0000 Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI2-033.3300 Microchip Technology DSC1001 33.33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI5-100.0000 Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CE2-006.0000 Microchip Technology DSC1001 6MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-012.0000 Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-033.3333 Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI5-004.9152 Microchip Technology DSC1001 4.9152MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-026.0000 Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AI2-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL2-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CC1-008.0000 Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-066.6666 Microchip Technology DSC1001 66.6666MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-019.2000 Microchip Technology DSC1001 19.2MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-004.9152 Microchip Technology DSC1001 4.9152MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AC1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AC1-008.0000 Microchip Technology DSC1001 8MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001DI1-012.0000 Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-020.0000 Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-032.0000 Microchip Technology DSC1001 32MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AE1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-014.3182 Microchip Technology DSC1001 14.3182MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-024.5761 Microchip Technology DSC1001 24.5761MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-054.0000 Microchip Technology DSC1001 54MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-003.6864 Microchip Technology DSC1001 3.6864MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BE2-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AE1-055.0000 Microchip Technology DSC1001 55MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CI1-003.6864 Microchip Technology DSC1001 3.6864MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-038.4000 Microchip Technology DSC1001 38.4MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AI2-064.0000 Microchip Technology DSC1001 64MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI1-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI2-001.9521 Microchip Technology DSC1001 1.9521MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-010.4857 Microchip Technology DSC1001 10.4857MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-008.1920 Microchip Technology DSC1001 8.192MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AI1-033.0000 Microchip Technology DSC1001 33MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI1-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-020.0000 Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-024.5760 Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-014.3181 Microchip Technology DSC1001 14.3181MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-014.7456 Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-016.3840 Microchip Technology DSC1001 16.384MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AI2-001.0000 Microchip Technology DSC1001 1MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-012.5000 Microchip Technology DSC1001 12.5MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-024.5760 Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-005.5296 Microchip Technology DSC1001 5.5296MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI2-049.1520 Microchip Technology DSC1001 49.152MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BI2-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI2-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-012.0000 Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-045.1584 Microchip Technology DSC1001 45.1584MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-049.1520 Microchip Technology DSC1001 49.152MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-011.0592 Microchip Technology DSC1001 11.0592MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AE2-002.0480 Microchip Technology DSC1001 2.048MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CI2-001.9512 Microchip Technology DSC1001 1.9512MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-033.3330 Microchip Technology DSC1001 33.333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DL1-025.2000 Microchip Technology DSC1001 25.2MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001BI2-004.0000 Microchip Technology DSC1001 4MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-013.0810 Microchip Technology DSC1001 13.081MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-054.0000 Microchip Technology DSC1001 54MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AI2-011.7000 Microchip Technology DSC1001 11.7MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI2-012.3667 Microchip Technology DSC1001 12.3667MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CL1-016.0000 Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL1-033.3333 Microchip Technology DSC1001 33.3333MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BI2-012.2888 Microchip Technology DSC1001 12.2888MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI2-150.0000 Microchip Technology DSC1001 150MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BL1-060.0000 Microchip Technology DSC1001 60MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001DI2-005.0196 Microchip Technology DSC1001 5.0196MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-019.2000 Microchip Technology DSC1001 19.2MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI5-009.6000 Microchip Technology DSC1001 9.6MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI5-009.7280 Microchip Technology DSC1001 9.728MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DL2-016.0000 Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-016.3840 Microchip Technology DSC1001 16.384MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BE1-125.0000 Microchip Technology DSC1001 125MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI5-060.0000 Microchip Technology DSC1001 60MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-012.8000 Microchip Technology DSC1001 12.8MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-028.6363 Microchip Technology DSC1001 28.6363MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-026.0000 Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-031.2500 Microchip Technology DSC1001 31.25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-037.1250 Microchip Technology DSC1001 37.125MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-032.0000 Microchip Technology DSC1001 32MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-029.5000 Microchip Technology DSC1001 29.5MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CL2-030.0000 Microchip Technology DSC1001 30MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BL2-020.0000 Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AE1-111.0000 Microchip Technology DSC1001 111MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CL5-014.3181 Microchip Technology DSC1001 14.318MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AI2-096.0000 Microchip Technology DSC1001 96MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI2-100.0000 Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI2-125.0000 Microchip Technology DSC1001 125MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI5-024.3050 Microchip Technology DSC1001 24.305MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI5-033.3300 Microchip Technology DSC1001 33.33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AE5-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BE5-064.0000 Microchip Technology DSC1001 64MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001DL2-030.0000 Microchip Technology DSC1001 30MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL2-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL2-013.5000 Microchip Technology DSC1001 13.5MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AI5-027.0000 Microchip Technology DSC1001 27MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI5-033.0000 Microchip Technology DSC1001 33MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI5-013.5600 Microchip Technology DSC1001 13.56MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI5-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CE5-148.0000 Microchip Technology DSC1001 148MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DL2-037.1250 Microchip Technology DSC1001 37.125MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AI5-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001DI2-100.0000 Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001BL5-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AL5-033.0000 Microchip Technology DSC1001 33MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-060.0000 Microchip Technology DSC1001 60MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-033.3333 Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BL5-016.0000 Microchip Technology DSC1001 16MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AL5-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BL5-064.0000 Microchip Technology DSC1001 64MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BL5-095.0000 Microchip Technology DSC1001 95MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI5-090.0000 Microchip Technology DSC1001 90MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001DI5-026.0000 Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-047.3385 Microchip Technology DSC1001 47.3385MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-047.3885 Microchip Technology DSC1001 47.3885MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL2-074.2500 Microchip Technology DSC1001 74.25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-024.5760 Microchip Technology DSC1001 24.576MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-016.0000 Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-019.2000 Microchip Technology DSC1001 19.2MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AL5-100.0000 Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CE1-022.1184 Microchip Technology DSC1001 22.1184MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DL5-050.0000 Microchip Technology DSC1001 50MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL2-087.0655 Microchip Technology DSC1001 87.0655MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-030.0000 Microchip Technology DSC1001 30MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-012.0000 Microchip Technology DSC1001 12MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-026.0000 Microchip Technology DSC1001 26MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL1-080.0000 Microchip Technology DSC1001 80MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-125.0000 Microchip Technology DSC1001 125MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CI1-024.0000T Microchip Technology DSC1001 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-024.0000T Microchip Technology DSC1001 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-108.0000 Microchip Technology DSC1001 108MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC1-027.0000 Microchip Technology DSC1001 27MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DE1-050.0000 Microchip Technology DSC1001 50MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-025.0000 Microchip Technology DSC1001 25MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CE1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BC1-020.0000 Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-016.0000 Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-008.0000 Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-022.5792 Microchip Technology DSC1001 22.5792MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-033.3330 Microchip Technology DSC1001 33.333MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-003.5800 Microchip Technology DSC1001 3.58MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-018.4320 Microchip Technology DSC1001 18.432MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-030.0000 Microchip Technology DSC1001 30MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-066.0000 Microchip Technology DSC1001 66MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI1-033.0000 Microchip Technology DSC1001 33MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-033.0000 Microchip Technology DSC1001 33MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-027.0000 Microchip Technology DSC1001 27MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AE1-006.1440 Microchip Technology DSC1001 6.144MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI1-004.0000 Microchip Technology DSC1001 4MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AE1-019.6608 Microchip Technology DSC1001 19.6608MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CI2-031.2500 Microchip Technology DSC1001 31.25MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AI1-055.3330 Microchip Technology DSC1001 55.333MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI2-066.6670 Microchip Technology DSC1001 66.667MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI2-010.0000 Microchip Technology DSC1001 10MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI1-033.3330 Microchip Technology DSC1001 33.333MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-006.0000 Microchip Technology DSC1001 6MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-030.0000 Microchip Technology DSC1001 30MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-026.0000 Microchip Technology DSC1001 26MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-033.0000 Microchip Technology DSC1001 33MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-018.4320 Microchip Technology DSC1001 18.432MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI2-012.5000 Microchip Technology DSC1001 12.5MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-030.0000 Microchip Technology DSC1001 30MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-006.0000 Microchip Technology DSC1001 6MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI2-011.0592 Microchip Technology DSC1001 11.0592MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BI2-012.0000 Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CI2-008.0000 Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AI2-054.0000 Microchip Technology DSC1001 54MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI1-008.0000 Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001DE1-075.0000 Microchip Technology DSC1001 75MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC5-012.8000 Microchip Technology DSC1001 12.8MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CL1-048.0000 Microchip Technology DSC1001 48MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL1-001.8432 Microchip Technology DSC1001 1.8432MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BL1-016.0000 Microchip Technology DSC1001 16MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CL1-020.0000T Microchip Technology DSC1001 20MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL1-020.0000T Microchip Technology DSC1001 20MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL1-020.0000T Microchip Technology DSC1001 20MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-014.7456T Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-014.7456T Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-014.7456T Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-044.0000 Microchip Technology DSC1001 44MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI5-011.0592 Microchip Technology DSC1001 11.0592MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-030.0000 Microchip Technology DSC1001 30MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-047.3885 Microchip Technology DSC1001 47.3885MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-066.0000 Microchip Technology DSC1001 66MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-024.5454 Microchip Technology DSC1001 24.5454MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-074.2500 Microchip Technology DSC1001 74.25MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-024.5455 Microchip Technology DSC1001 24.5455MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-014.7456 Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-008.0000 Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BI1-100.0000 Microchip Technology DSC1001 100MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-133.3330T Microchip Technology DSC1001 133.333MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-133.3330T Microchip Technology DSC1001 133.333MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI2-133.3330T Microchip Technology DSC1001 133.333MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CL5-114.0000 Microchip Technology DSC1001 114MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-033.0000 Microchip Technology DSC1001 33MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-060.0000 Microchip Technology DSC1001 60MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL5-014.7456 Microchip Technology DSC1001 14.7456MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DL1-033.3333 Microchip Technology DSC1001 33.3333MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AI2-016.3840 Microchip Technology DSC1001 16.384MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CI2-036.0000 Microchip Technology DSC1001 36MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AI5-012.0000 Microchip Technology DSC1001 12MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI5-032.0000 Microchip Technology DSC1001 32MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI5-048.0000 Microchip Technology DSC1001 48MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI5-033.3330 Microchip Technology DSC1001 33.333MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI5-008.0000 Microchip Technology DSC1001 8MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CE5-148.5000 Microchip Technology DSC1001 148.5MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BI5-020.0000 Microchip Technology DSC1001 20MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AI5-029.4912 Microchip Technology DSC1001 29.4912MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI5-010.0000 Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AC2-125.0025 Microchip Technology DSC1001 125.0025MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-001.8432 Microchip Technology DSC1001 1.8432MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AL5-008.0000 Microchip Technology DSC1001 8MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BL5-050.0000 Microchip Technology DSC1001 50MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AL5-004.0000 Microchip Technology DSC1001 4MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BI5-133.3330 Microchip Technology DSC1001 133.333MHz 1.7 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001AI5-080.0000 Microchip Technology DSC1001 80MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI5-125.0060 Microchip Technology DSC1001 125.006MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AI5-100.0000 Microchip Technology DSC1001 100MHz 1.7 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001DI5-048.0000 Microchip Technology DSC1001 48MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-004.0000 Microchip Technology DSC1001 4MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-018.4320 Microchip Technology DSC1001 18.432MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-044.0000 Microchip Technology DSC1001 44MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-060.0000 Microchip Technology DSC1001 60MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-001.8432 Microchip Technology DSC1001 1.8432MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-010.0000 Microchip Technology DSC1001 10MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-050.0000 Microchip Technology DSC1001 50MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-013.3333 Microchip Technology DSC1001 13.3333MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL2-150.0000 Microchip Technology DSC1001 150MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-022.5792 Microchip Technology DSC1001 22.5792MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-008.0000 Microchip Technology DSC1001 8MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-024.0000 Microchip Technology DSC1001 24MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-010.2000 Microchip Technology DSC1001 10.2MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-004.0000 Microchip Technology DSC1001 4MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-010.0000 Microchip Technology DSC1001 10MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-019.2000 Microchip Technology DSC1001 19.2MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-033.0000 Microchip Technology DSC1001 33MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-032.0000 Microchip Technology DSC1001 32MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL2-090.0000 Microchip Technology DSC1001 90MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-048.0000 Microchip Technology DSC1001 48MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-054.0000 Microchip Technology DSC1001 54MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-100.0000T Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-100.0000T Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-100.0000T Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DL5-100.0000 Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI5-133.3330 Microchip Technology DSC1001 133.333MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI5-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI2-004.0000 Microchip Technology DSC1001 4MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001BL2-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001DI2-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CI2-108.0000T Microchip Technology DSC1001 108MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-027.0000T Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-033.3000T Microchip Technology DSC1001 33.3MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DC1-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC1-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI2-001.8432T Microchip Technology DSC1001 1.8432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CL2-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DC1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC1-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CL2-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-009.5290 Microchip Technology DSC1001 9.529MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-033.3333 Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DC1-004.9152 Microchip Technology DSC1001 4.9152MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CL2-004.0000T Microchip Technology DSC1001 4MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-020.0000 Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-022.5972 Microchip Technology DSC1001 22.5972MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CL2-037.1250 Microchip Technology DSC1001 37.125MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC1-010.0000T Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DE1-012.0000T Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-026.0000T Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-033.3333T Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-040.0000T Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-054.0000T Microchip Technology DSC1001 54MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE2-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE2-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CC1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DE1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-033.3333 Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE2-016.0000 Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE2-032.0000 Microchip Technology DSC1001 32MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CC1-047.3333T Microchip Technology DSC1001 47.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DC2-004.9152 Microchip Technology DSC1001 4.9152MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC2-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC2-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-019.6608 Microchip Technology DSC1001 19.6608MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE1-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CC1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC1-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DE1-018.4320 Microchip Technology DSC1001 18.432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DE2-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CC1-008.0000T Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AE5-024.5760 Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE5-024.5760T Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CC2-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC2-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC2-033.0000 Microchip Technology DSC1001 33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC2-033.0000T Microchip Technology DSC1001 33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-012.2880 Microchip Technology DSC1001 12.288MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-024.5760 Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-024.5760T Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AC1-008.0000T Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BC1-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BC1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CC2-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-006.0000T Microchip Technology DSC1001 6MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-012.0000T Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-012.2880T Microchip Technology DSC1001 12.288MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-015.3600T Microchip Technology DSC1001 15.36MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-016.5000T Microchip Technology DSC1001 16.5MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-020.8300T Microchip Technology DSC1001 20.83MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-027.0000T Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-048.0000T Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC2-012.5000 Microchip Technology DSC1001 12.5MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC2-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CC2-050.0000 Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-004.0000 Microchip Technology DSC1001 4MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-027.0000 Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-037.1250 Microchip Technology DSC1001 37.125MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-014.3182T Microchip Technology DSC1001 14.3182MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-069.2480T Microchip Technology DSC1001 69.248MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AC1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AC1-033.3333 Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AC1-040.0000 Microchip Technology DSC1001 40MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001CE1-014.3182 Microchip Technology DSC1001 14.3182MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-019.6608 Microchip Technology DSC1001 19.6608MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-064.8000 Microchip Technology DSC1001 64.8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-069.2480 Microchip Technology DSC1001 69.248MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001BC1-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CE1-033.8688 Microchip Technology DSC1001 33.8688MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-060.0000 Microchip Technology DSC1001 60MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-033.8688T Microchip Technology DSC1001 33.8688MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-033.8688T Microchip Technology DSC1001 33.8688MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-033.8688T Microchip Technology DSC1001 33.8688MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-019.2000T Microchip Technology DSC1001 19.2MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE1-066.6666T Microchip Technology DSC1001 66.6666MHz 1.7 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-004.9152T Microchip Technology DSC1001 4.9152MHz 1.7 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001CE2-024.5760 Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001AE1-016.6667 Microchip Technology DSC1001 16.6667MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-016.6667T Microchip Technology DSC1001 16.6667MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-024.0000 Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-033.3333T Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BE1-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CE2-048.0000 Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DC1-100.0000 Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DC1-100.0000T Microchip Technology DSC1001 100MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-016.3840 Microchip Technology DSC1001 16.384MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-016.3840T Microchip Technology DSC1001 16.384MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001AC2-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-006.1440T Microchip Technology DSC1001 6.144MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-014.3182T Microchip Technology DSC1001 14.3182MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001AE1-054.0000T Microchip Technology DSC1001 54MHz 1.8 V ~ 3.3 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1001BE1-016.0000T Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BE1-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BE1-048.0000T Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BE2-012.0000T Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BI1-004.0000T Microchip Technology DSC1001 4MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001BE1-025.0000 Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1001CE2-022.5792T Microchip Technology DSC1001 22.5792MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-024.0000T Microchip Technology DSC1001 24MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-026.0000T Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-027.0000T Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CE2-037.1250T Microchip Technology DSC1001 37.125MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-001.8432T Microchip Technology DSC1001 1.8432MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-003.6864T Microchip Technology DSC1001 3.6864MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-007.5000T Microchip Technology DSC1001 7.5MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-008.0000T Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-010.0000T Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-011.0592T Microchip Technology DSC1001 11.0592MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-012.0000T Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-014.7456T Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-016.0000T Microchip Technology DSC1001 16MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-019.2000T Microchip Technology DSC1001 19.2MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-020.0000T Microchip Technology DSC1001 20MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-024.5760T Microchip Technology DSC1001 24.576MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-025.0000T Microchip Technology DSC1001 25MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-026.0000T Microchip Technology DSC1001 26MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-027.0000T Microchip Technology DSC1001 27MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-033.0000T Microchip Technology DSC1001 33MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-033.3330T Microchip Technology DSC1001 33.333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-033.3333T Microchip Technology DSC1001 33.3333MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-048.0000T Microchip Technology DSC1001 48MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-050.0000T Microchip Technology DSC1001 50MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001CI1-060.0000T Microchip Technology DSC1001 60MHz 1.8 V ~ 3.3 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1001DI1-001.8432T Microchip Technology DSC1001 1.8432MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-003.6864T Microchip Technology DSC1001 3.6864MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-004.0000T Microchip Technology DSC1001 4MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-005.0196T Microchip Technology DSC1001 5.0196MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-008.0000T Microchip Technology DSC1001 8MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-010.0000T Microchip Technology DSC1001 10MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-012.0000T Microchip Technology DSC1001 12MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1001DI1-014.7456T Microchip Technology DSC1001 14.7456MHz 1.8 V ~ 3.3 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
