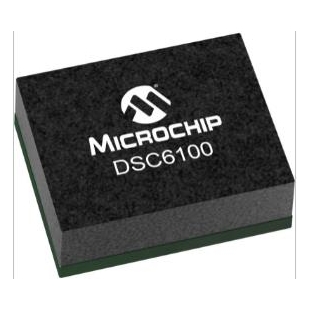

DSC6101HI2A-050.0000-Microchip品牌-6G存储器晶振

  • 频率:50MHz
  • 尺寸:1.6×1.2mm
  • 应 用: 欧美晶振,Microchip晶振,DSC61XX进口有源晶振,DSC6101HI2A-050.0000晶振,石英振荡器,1612mm晶振,四脚贴片晶振,SMD晶振,频率50MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,抗冲击晶振,抗振动晶振,低抖动晶振,6G存...
  • RoHS RoHS2

DSC6101HI2A-050.0000-Microchip品牌-6G存储器晶振,欧美晶振,Microchip晶振,DSC61XX进口有源晶振,DSC6101HI2A-050.0000晶振,石英振荡器,1612mm晶振,四脚贴片晶振,SMD晶振,频率50MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,抗冲击晶振,抗振动晶振,低抖动晶振,6G存储器晶振,物联网晶振,可穿戴设备晶振,智能设备晶振.
DSC6101HI2A-050.0000-Microchip品牌-6G存储器晶振特点:
宽频率范围:2 kHz至100 MHz
•超低功耗:3 mA/12µA(活动/备用)
•超小足迹
-1.6 mm x 1.2 mm VFLGA
- 2.0 mm x 1.6 mm VFLGA
- 2.5 mm × 2.0 mm VLGA
- 3.2 mm x 2.5 mm VDFN
•频率选择输入支持两个预定义的频率
•高稳定性:±25 ppm,±50 ppm
•宽温度范围
-工业:- 40℃~ +85℃
-外商用:- 20°至+70°C
卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•电源范围1.71V至3.63V
样品交货时间短:<2周
•无铅和符合RoHS标准

DSC6101HI2A-050.0000-Microchip品牌-6G存储器晶振规格表
项目 规格说明 条件
额定频率 50MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+150℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm 1st  year @ +25°C
电流 80µA
VDD = 3.3V
负载 15pf
输出逻辑电平高(VOH)
0.8 x VDD Min
Output logic high, I = 3 mA,
Std. Drive
输出逻辑电平低(VOL) 0.2 x VDD Max
Output Logic Low, I = –3 mA,
Std. Drive
输出上升下降时间 1.0ns Max High Drive, 20%/80%,CL=15pF
占空比 45%~55%
输入逻辑电平高(VIH) 0.7×VDD Min
Input  logic  high
输入逻辑电平低(VIL) 0.3x VDD  Max
Input  logic  low
起始时间 1.3ms Max
From 90% VDD to valid clock
output, T = 25°C
周期抖动  9psRMS
FOUT =27 MHz
VDD =2.5V/3.3V
周期对周期抖动
60psRMS
Drive,FOUT =27 MHz
VDD =2.5V/3.3V

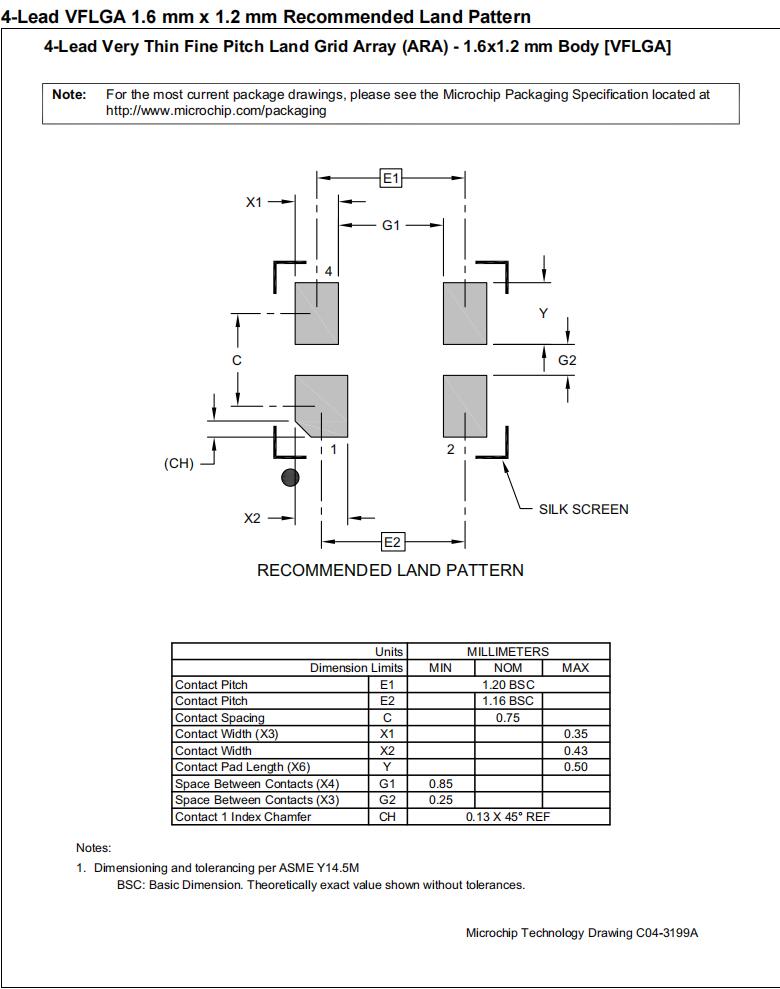

DSC6101HI2A-050.0000-Microchip品牌-6G存储器晶振尺寸图



原厂代码 晶振品牌 型号 频率 电压 尺寸
DSC1124CI5-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BE2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-125.0000 Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500TA Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CE1-010.2400 Microchip Technology DSC1124 10.24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BI1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124NE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BI2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BI2-125.0000 Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-010.2400T Microchip Technology DSC1124 10.24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BE2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI1-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BE2-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104DI1-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI1-156.2500T Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI1-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI1-156.2500 Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124NI1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124NI1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BI2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI2-125.0000T Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI2-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CI2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124NE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124CI2-200.0000 Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124NI1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124NI1-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104AI2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124CI2-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-125.0000T Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104BI5-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104BI5-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CL2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CL2-200.0000T Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CL2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CL2-200.0000 Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124BI5-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124NL2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104NI2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104NI2-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1104DL5-040.0000 Microchip Technology DSC1104 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DL5-040.0000T Microchip Technology DSC1104 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124NL2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124AI1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124AL2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124CI2-048.0000T Microchip Technology DSC1124 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI2-200.0000T Microchip Technology DSC1124 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CE1-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124AI1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124AL2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BI2-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124DI2-100.0050 Microchip Technology DSC1124 100.005MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-125.0000T Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124AI2-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE1-125.0000T Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-050.0000T Microchip Technology DSC1124 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2422T Microchip Technology DSC1124 156.2422MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2578T Microchip Technology DSC1124 156.2578MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124DE1-100.0000T Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124DE1-125.0000T Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DE1-125.0000 Microchip Technology DSC1104 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124AI2-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1124BE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE1-125.0000 Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124CE1-050.0000 Microchip Technology DSC1124 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2422 Microchip Technology DSC1124 156.2422MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124CI5-156.2578 Microchip Technology DSC1124 156.2578MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1124DE1-100.0000 Microchip Technology DSC1124 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124DE1-125.0000 Microchip Technology DSC1124 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104BE1-156.2500 Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104BE1-156.2500T Microchip Technology DSC1104 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1104CI2-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI2-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-100.0000 Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104CI5-100.0000T Microchip Technology DSC1104 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1104DI5-147.4560 Microchip Technology DSC1104 147.456MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1104DI5-147.4560T Microchip Technology DSC1104 147.456MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1124BE1-156.2500 Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BE1-156.2500T Microchip Technology DSC1124 156.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.3516 Microchip Technology DSC1124 148.3516MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.3516T Microchip Technology DSC1124 148.3516MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.5000 Microchip Technology DSC1124 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1124BI5-148.5000T Microchip Technology DSC1124 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
