    • 首页欧美晶振Microchip晶振Microchip品牌-DSC1101AI2-080.0000T-6G低抖动晶振

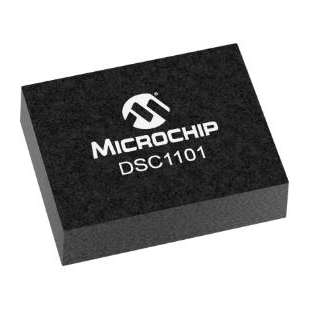

    Microchip品牌-DSC1101AI2-080.0000T-6G低抖动晶振

    • 频率：80MHz
    • 尺寸：7.0×5.0mm
    • 应　用： Microchip晶振,DSC1101有源晶振,DSC1101AI2-080.0000T晶振,进口晶振,六脚贴片晶振,石英晶体振荡器,7050mm晶振,频率80MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,6G低抖动晶振,低相位噪声晶振,高可靠性晶振,无源...
    • RoHS RoHS2

    Microchip品牌-DSC1101AI2-080.0000T-6G低抖动晶振,Microchip晶振,DSC1101有源晶振,DSC1101AI2-080.0000T晶振,进口晶振,六脚贴片晶振,石英晶体振荡器,7050mm晶振,频率80MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,6G低抖动晶振,低相位噪声晶振,高可靠性晶振,无源光网络晶振,存储区域网络晶振,PCI Express晶振,多媒体设备晶振.
    Microchip品牌-DSC1101AI2-080.0000T-6G低抖动晶振特点：
    •低有效值相位抖动:<1 ps(类型)
    •高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
    •宽温度范围:
    -汽车:- 55°C至+125°C
    -Ext.工业:- 40°C至+105°C
    -工业:- 40℃~ +85℃
    -商用:- 20℃~ +70℃
    •高电源噪声抑制:-50 dBc
    •宽频率范围:2.3 MHz至170 MHz
    •小的行业标准足迹
    - 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
    •卓越的抗冲击和抗振动能力
    -符合MIL-STD-883标准
    •高可靠性
    - MTF比石英振荡器好20倍
    •低电流消耗
    •电源范围2.25至3.6V
    •待机和输出使能功能
    •无铅，符合RoHS标准

    Microchip品牌-DSC1101AI2-080.0000T-6G低抖动晶振规格表
    项目 规格说明 条件
    额定频率 80MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +85℃
    频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 35mA  Max
    Output enabled, CL = 15 pF,F0 = 100 MHz
    负载 15pf
    输出逻辑电平低（Vol） 0.1x VDD  Max
    I = ±6 mA
    输出逻辑电平高（Voh） 0.9x VDD  Min
    输出上升下降时间 2ns Max  20%/80% CL=15pF
    占空比 45%~55%
    输入逻辑电平高（VIH） 0.75×VDD Min
    输入逻辑电平低（VIL） 0.25x VDD  Max
    起始时间 5 ms Max T = +25°C
    周期抖动  3psRMS
    FOUT = 125 MHz
    集成相位噪声
    2psRMS
    12 kHz to 20 MHz @ 125 MHz

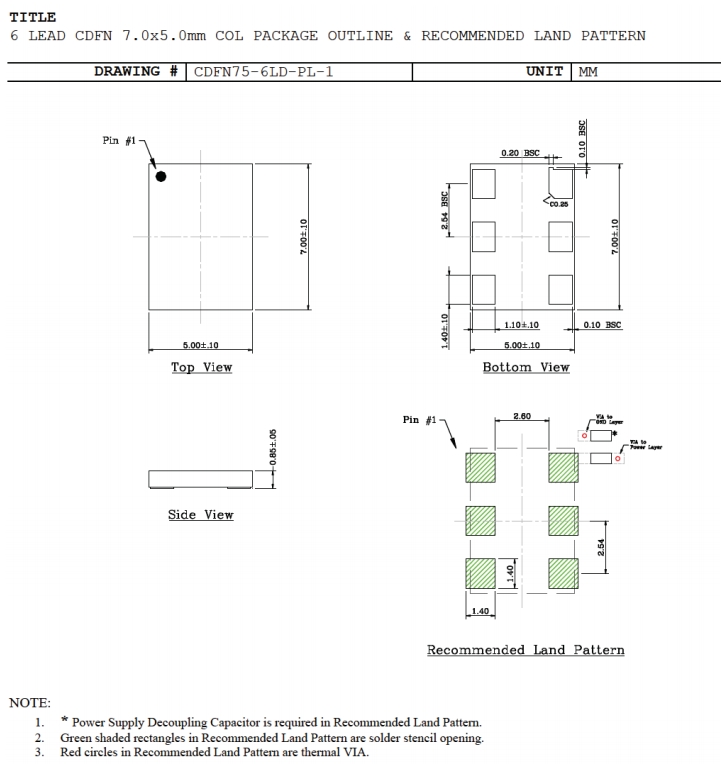

    Microchip品牌-DSC1101AI2-080.0000T-6G低抖动晶振尺寸图



    原厂代码 晶振品牌 型号 频率 电压 尺寸
    DSC1101DM2-012.0000 Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101AI2-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-080.0000 Microchip Technology DSC1101 80MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-064.0000 Microchip Technology DSC1101 64MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101DL5-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101BI5-133.0000 Microchip Technology DSC1101 133MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CL5-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-062.2080T Microchip Technology DSC1101 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-062.2080T Microchip Technology DSC1101 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-062.2080T Microchip Technology DSC1101 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL5-014.7456 Microchip Technology DSC1101 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DL5-052.8000 Microchip Technology DSC1101 52.8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CM1-075.0000 Microchip Technology DSC1101 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-033.3333 Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-005.0000 Microchip Technology DSC1101 5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DL1-027.0000 Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-012.0000 Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE2-008.0000 Microchip Technology DSC1101 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-033.3333 Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CL2-024.7500 Microchip Technology DSC1101 24.75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DM1-033.3333 Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CI5-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DM2-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101BI5-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CI2-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-014.7456 Microchip Technology DSC1101 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-030.0000 Microchip Technology DSC1101 30MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101AE5-007.6800 Microchip Technology DSC1101 7.68MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE5-040.6080 Microchip Technology DSC1101 40.608MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101DI1-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI1-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CI1-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101AE1-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101CI1-125.0000T Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DL1-033.3330 Microchip Technology DSC1101 33.333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CI2-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DL1-027.0000T Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CI1-125.0000 Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-148.3516 Microchip Technology DSC1101 148.3516MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-148.5000 Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101AM2-004.0000 Microchip Technology DSC1101 4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101DI2-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-033.3333T Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL1-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CL2-024.7500T Microchip Technology DSC1101 24.75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL2-016.3840T Microchip Technology DSC1101 16.384MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL2-016.3840 Microchip Technology DSC1101 16.384MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL2-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DI5-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-026.0000T Microchip Technology DSC1101 26MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-060.0000T Microchip Technology DSC1101 60MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-072.0000 Microchip Technology DSC1101 72MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-033.3330T Microchip Technology DSC1101 33.333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-033.3330 Microchip Technology DSC1101 33.333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-033.3333T Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-012.0000T Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101AE1-125.0000 Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE1-133.0000 Microchip Technology DSC1101 133MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101CI5-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101AE1-125.0000T Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101CI5-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-024.5760 Microchip Technology DSC1101 24.576MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-022.5791 Microchip Technology DSC1101 22.5791MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CE1-024.0000 Microchip Technology DSC1101 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101NI1-125.0062 Microchip Technology DSC1101 125.0062MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NI1-156.2500 Microchip Technology DSC1101 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101DM2-012.0000T Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-016.0000 Microchip Technology DSC1101 16MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-016.0000T Microchip Technology DSC1101 16MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-056.2500T Microchip Technology DSC1101 56.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CL5-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL5-027.0000 Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL5-014.7456T Microchip Technology DSC1101 14.7456MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101BI5-022.5792 Microchip Technology DSC1101 22.5792MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI5-024.5760 Microchip Technology DSC1101 24.576MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI5-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101AI2-148.5000T Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-040.0000T Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-064.0000T Microchip Technology DSC1101 64MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-080.0000T Microchip Technology DSC1101 80MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-148.5000 Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BM2-027.0000 Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-027.0000T Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-074.2500 Microchip Technology DSC1101 74.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM2-074.2500T Microchip Technology DSC1101 74.25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CM2-062.2080 Microchip Technology DSC1101 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DL5-013.5600 Microchip Technology DSC1101 13.56MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-013.5600T Microchip Technology DSC1101 13.56MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-052.8000T Microchip Technology DSC1101 52.8MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101BI5-133.0000T Microchip Technology DSC1101 133MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CL5-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101NI5-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101DM2-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-004.0000 Microchip Technology DSC1101 4MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-004.0000T Microchip Technology DSC1101 4MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-125.0000T Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101CM1-075.0000T Microchip Technology DSC1101 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-008.0000 Microchip Technology DSC1101 8MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-005.0000T Microchip Technology DSC1101 5MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-033.3333T Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101AM1-160.0000 Microchip Technology DSC1101 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101CM2-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101AM2-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AL5-080.0000 Microchip Technology DSC1101 80MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AL5-080.0000T Microchip Technology DSC1101 80MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BE1-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE1-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM1-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BM1-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CI1-148.3516T Microchip Technology DSC1101 148.3516MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-148.5000T Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-125.0000 Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-125.0000T Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-026.0000 Microchip Technology DSC1101 26MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-026.0000T Microchip Technology DSC1101 26MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-125.0000 Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-125.0000T Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL5-020.0032 Microchip Technology DSC1101 20.0032MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL5-020.0032T Microchip Technology DSC1101 20.0032MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL5-040.0000T Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DC1-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DC1-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-040.0000T Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-008.0000 Microchip Technology DSC1101 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-008.0000T Microchip Technology DSC1101 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-027.0000 Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-048.0000 Microchip Technology DSC1101 48MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-056.2500 Microchip Technology DSC1101 56.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-156.2500 Microchip Technology DSC1101 156.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-156.2500T Microchip Technology DSC1101 156.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-040.0000T Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-080.0000 Microchip Technology DSC1101 80MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-080.0000T Microchip Technology DSC1101 80MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101NI2-048.0000 Microchip Technology DSC1101 48MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NI2-048.0000T Microchip Technology DSC1101 48MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NI5-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NI5-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NI5-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NM1-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-048.0000T Microchip Technology DSC1101 48MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BE1-012.0000T Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE2-033.0000T Microchip Technology DSC1101 33MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE2-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-066.6666T Microchip Technology DSC1101 66.6666MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-125.0000T Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-125.0037T Microchip Technology DSC1101 125.0037MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-148.5000T Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI2-024.0000T Microchip Technology DSC1101 24MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI2-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI5-022.5792T Microchip Technology DSC1101 22.5792MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI5-024.5760T Microchip Technology DSC1101 24.576MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BL1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CE1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-016.0000T Microchip Technology DSC1101 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-012.0000T Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-024.0000T Microchip Technology DSC1101 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-032.7680T Microchip Technology DSC1101 32.768MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-066.6667T Microchip Technology DSC1101 66.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-014.7456T Microchip Technology DSC1101 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-022.5792T Microchip Technology DSC1101 22.5792MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-024.5760T Microchip Technology DSC1101 24.576MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-072.0000T Microchip Technology DSC1101 72MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-027.0000T Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DE1-005.0000T Microchip Technology DSC1101 5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE1-005.2500T Microchip Technology DSC1101 5.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI2-032.0000T Microchip Technology DSC1101 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-031.2500T Microchip Technology DSC1101 31.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-066.0000T Microchip Technology DSC1101 66MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-072.0000T Microchip Technology DSC1101 72MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL1-012.5000T Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-008.0000T Microchip Technology DSC1101 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-012.0000T Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-013.5600T Microchip Technology DSC1101 13.56MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-024.0000T Microchip Technology DSC1101 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-054.0000T Microchip Technology DSC1101 54MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101AI2-048.0000 Microchip Technology DSC1101 48MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BE1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE2-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE2-033.0000 Microchip Technology DSC1101 33MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BE2-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-066.6666 Microchip Technology DSC1101 66.6666MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-125.0000 Microchip Technology DSC1101 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI1-125.0037 Microchip Technology DSC1101 125.0037MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BL1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CE1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-016.0000 Microchip Technology DSC1101 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-012.0000 Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-024.0000 Microchip Technology DSC1101 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-032.7680 Microchip Technology DSC1101 32.768MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-066.0000 Microchip Technology DSC1101 66MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-066.6667 Microchip Technology DSC1101 66.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-014.7456 Microchip Technology DSC1101 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-022.5000 Microchip Technology DSC1101 22.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-022.5792 Microchip Technology DSC1101 22.5792MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-024.7500 Microchip Technology DSC1101 24.75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-045.0000 Microchip Technology DSC1101 45MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-048.0000 Microchip Technology DSC1101 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CL2-010.0000 Microchip Technology DSC1101 10MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-027.0000 Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM5-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DE1-005.0000 Microchip Technology DSC1101 5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE1-005.2500 Microchip Technology DSC1101 5.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI2-032.0000 Microchip Technology DSC1101 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI5-031.2500 Microchip Technology DSC1101 31.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL1-012.5000 Microchip Technology DSC1101 12.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-013.5600 Microchip Technology DSC1101 13.56MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-125.0000 Microchip Technology DSC1101 12MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101AE1-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE1-133.0000T Microchip Technology DSC1101 133MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-026.9910T Microchip Technology DSC1101 26.991MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-033.3333T Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI5-064.0000T Microchip Technology DSC1101 64MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AM1-016.0000T Microchip Technology DSC1101 16MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BI2-050.0000T Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CE5-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-164.0000T Microchip Technology DSC1101 164MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI5-022.5791T Microchip Technology DSC1101 22.5791MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-008.0000T Microchip Technology DSC1101 8MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM1-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-016.3840T Microchip Technology DSC1101 16.384MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DI1-160.0000T Microchip Technology DSC1101 160MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL1-033.3330T Microchip Technology DSC1101 33.333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-062.5000T Microchip Technology DSC1101 62.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-160.0000T Microchip Technology DSC1101 160MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101NI1-125.0062T Microchip Technology DSC1101 125.0062MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NI1-156.2500T Microchip Technology DSC1101 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-026.9910 Microchip Technology DSC1101 26.991MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI2-033.3333 Microchip Technology DSC1101 33.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI5-064.0000 Microchip Technology DSC1101 64MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI5-066.0000 Microchip Technology DSC1101 66MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AM1-016.0000 Microchip Technology DSC1101 16MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BI2-050.0000 Microchip Technology DSC1101 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CE5-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-164.0000 Microchip Technology DSC1101 164MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-016.3840 Microchip Technology DSC1101 16.384MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DI1-160.0000 Microchip Technology DSC1101 160MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DI2-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL2-050.6880 Microchip Technology DSC1101 50.688MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-062.5000 Microchip Technology DSC1101 62.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-160.0000 Microchip Technology DSC1101 160MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101AE2-007.6800 Microchip Technology DSC1101 7.68MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE2-007.6800T Microchip Technology DSC1101 7.68MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE2-040.6080 Microchip Technology DSC1101 40.608MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE2-040.6080T Microchip Technology DSC1101 40.608MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE5-007.6800T Microchip Technology DSC1101 7.68MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AE5-040.6080T Microchip Technology DSC1101 40.608MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AI5-066.0000-TR Microchip Technology DSC1101 66MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101AM2-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101BI5-010.0000 Microchip Technology DSC1101 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101BI5-010.0000T Microchip Technology DSC1101 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1101CE1-004.0960 Microchip Technology DSC1101 4.096MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CE1-004.0960T Microchip Technology DSC1101 4.096MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CE2-020.0000 Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CE2-020.0000T Microchip Technology DSC1101 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-120.0000 Microchip Technology DSC1101 120MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI1-120.0000T Microchip Technology DSC1101 120MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-014.7456T Microchip Technology DSC1101 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-030.0000T Microchip Technology DSC1101 30MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-040.9600 Microchip Technology DSC1101 40.96MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-040.9600T Microchip Technology DSC1101 40.96MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-148.5000 Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-148.5000T Microchip Technology DSC1101 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-150.0000 Microchip Technology DSC1101 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CI2-150.0000T Microchip Technology DSC1101 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-024.5454 Microchip Technology DSC1101 24.5454MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-024.5454T Microchip Technology DSC1101 24.5454MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101DE1-004.0960 Microchip Technology DSC1101 4.096MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE1-004.0960T Microchip Technology DSC1101 4.096MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE5-027.0000 Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE5-027.0000T Microchip Technology DSC1101 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE5-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DE5-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL1-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DL5-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-040.0000 Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM1-040.0000T Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM2-040.0000T Microchip Technology DSC1101 40MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-011.0592 Microchip Technology DSC1101 11.0592MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-011.0592T Microchip Technology DSC1101 11.0592MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-025.0000 Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101DM5-025.0000T Microchip Technology DSC1101 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1101NM5-100.0000 Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101NM5-100.0000T Microchip Technology DSC1101 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1101CL2-002.5000 Microchip Technology DSC1101 2.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1101CM2-002.5000 Microchip Technology DSC1101 2.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
