Microchip品牌-DSC1103CI1-075.0000-6G光纤通道晶振

  • 频率:75MHz
  • 尺寸:3.2×2.5mm
  • 应 用: Microchip晶振,DSC1103差分晶振,DSC1103CI1-075.0000晶振,进口有源晶振,六脚贴片晶振,3225mm晶振,石英晶体振荡器,LVDS输出晶振,频率75MHz,电压3.3V,工作温度-40~85°C,频率稳定性50ppm,高稳定性晶振,小体积晶振,抗冲击...
  • RoHS RoHS2

Microchip品牌-DSC1103CI1-075.0000-6G光纤通道晶振,Microchip晶振,DSC1103差分晶振,DSC1103CI1-075.0000晶振,进口有源晶振,六脚贴片晶振,3225mm晶振,石英晶体振荡器,LVDS输出晶振,频率75MHz,电压3.3V,工作温度-40~85°C,频率稳定性50ppm,高稳定性晶振,小体积晶振,抗冲击晶振,6G光纤通道晶振,监控摄像头晶振,高清视频设备晶振,物联网晶振.
Microchip品牌-DSC1103CI1-075.0000-6G光纤通道晶振特点:
•低RMS相位抖动:<1 ps(类型)
•高稳定性:±10 ppm,±20 ppm,±25 ppm,±50 ppm
•宽温度范围:
-Ext.工业:- 40°C至+105°C
-工业:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至460 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.63V
•待机和输出使能功能
•无铅,符合RoHS标准

Microchip品牌-DSC1103CI1-075.0000-6G光纤通道晶振规格表
项目 规格说明 条件
额定频率 75MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+150℃ 裸存
工作温度 -40℃~ +85℃
频率稳定度 ±50ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm 1 year @ +25°C
电流 32mA  Max
Output Enabled, RL = 100Ω
负载 15pf
输出偏移电压(Vos) 1.4V  Max
R = 100Ω Differential
增量失调电压(ΔVOS) 50mV Max
-
输出上升下降时间 200ps Max  20%/80%
RL = 50Ω,CL=15pF
占空比 48%~52%
输入逻辑电平高(VIH) 0.75×VDD Min
Input  logic  high
输入逻辑电平低(VIL) 0.25x VDD  Max
Input  logic  low
起始时间 5 ms Max T = +25°C
周期抖动  2.5psRMS
-
集成相位噪声
2psRMS
12 kHz to 20 MHz @ 156.25 MHz

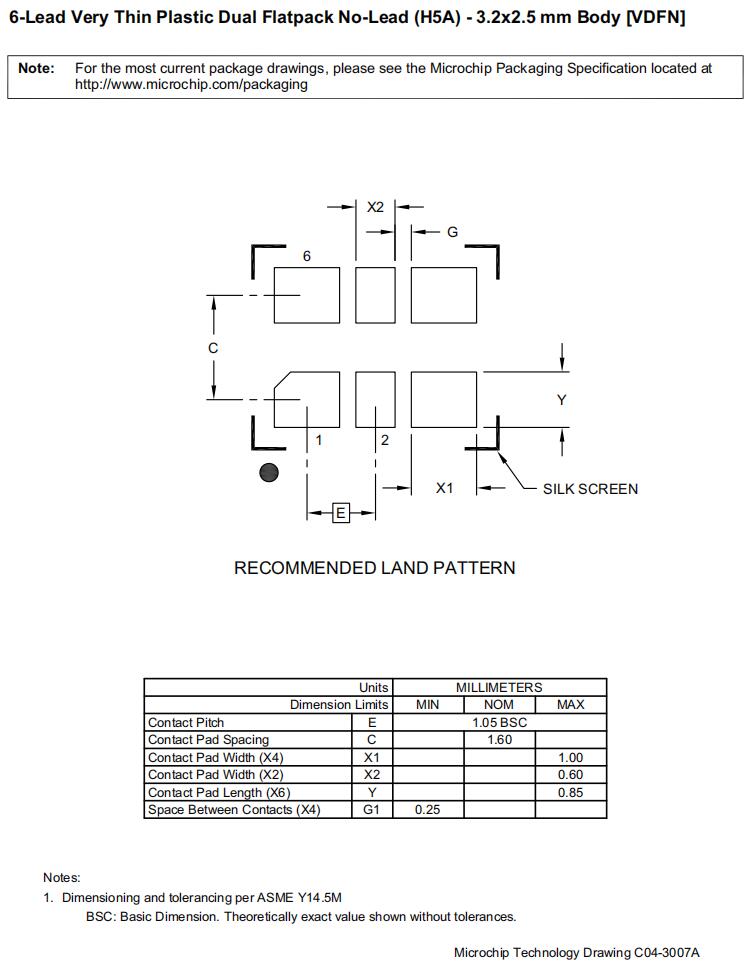

Microchip品牌-DSC1103CI1-075.0000-6G光纤通道晶振尺寸图



原厂代码 晶振品牌 型号 频率 电压 尺寸
DSC1103DI2-312.5000 Microchip Technology DSC1103 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BL5-062.5000 Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CL5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090T Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090 Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000 Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BE1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AE1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-130.0000T Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333 Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000 Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000 Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200T Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI5-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL5-062.5000T Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103DL5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DL5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060 Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060T Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BE1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI1-112.0000 Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-112.0000T Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE2-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000 Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000T Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300T Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333T Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000T Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000T Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-120.0000T Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000T Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000T Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000T Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333T Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500T Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103AE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300 Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333 Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-074.2129 Microchip Technology DSC1103 74.2129MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000 Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000 Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000 Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500 Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BL1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000T Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-130.0000 Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE5-266.6667 Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-266.6667T Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000T Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000T Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

相关产品

诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴:
深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
kf
kf
close
kf 亿金微信号
