    • 首页欧美晶振Microchip晶振Microchip品牌-DSC1103DI2-312.5000-6G存储网络晶振

    Microchip品牌-DSC1103DI2-312.5000-6G存储网络晶振

    • 频率：312.5MHz
    • 尺寸：2.5×2.0mm
    • 应　用： 欧美晶振,Microchip晶振,DSC1103有源晶振,DSC1103DI2-312.5000晶振,SMD晶振,2520mm晶振,LVDS晶振,贴片石英晶振,频率312.5MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,轻薄小晶振,低相位抖动晶振,无铅环保晶振,6G...
    • RoHS RoHS2

    Microchip品牌-DSC1103DI2-312.5000-6G存储网络晶振,欧美晶振,Microchip晶振,DSC1103有源晶振,DSC1103DI2-312.5000晶振,SMD晶振,2520mm晶振,LVDS晶振,贴片石英晶振,频率312.5MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,轻薄小晶振,低相位抖动晶振,无铅环保晶振,6G存储区域网络晶振,无源光网络晶振,显示端口晶振,便携式设备晶振.

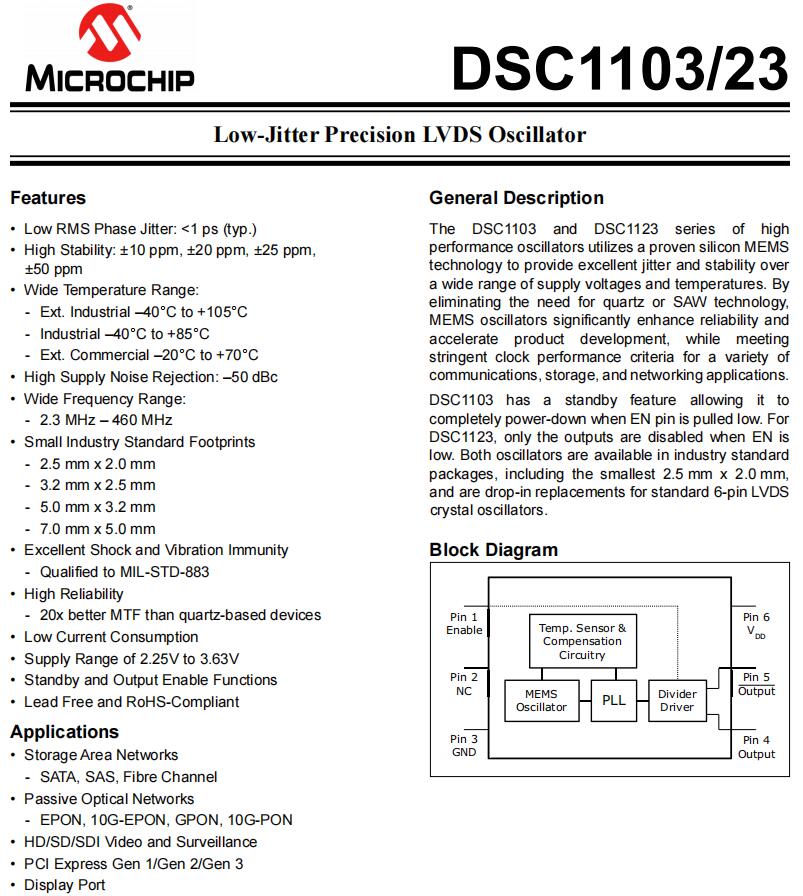

    Microchip品牌-DSC1103DI2-312.5000-6G存储网络晶振特点：
    •低RMS相位抖动:<1 ps(类型)
    •高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
    •宽温度范围:
    -Ext.工业:- 40°C至+105°C
    -工业:- 40℃~ +85℃
    -商用:- 20℃~ +70℃
    •高电源噪声抑制:-50 dBc
    •宽频率范围:2.3 MHz至460 MHz
    •小的行业标准足迹
    - 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
    •卓越的抗冲击和抗振动能力
    -符合MIL-STD-883标准
    •高可靠性
    - MTF比石英振荡器好20倍
    •低电流消耗
    •电源范围2.25至3.63V
    •待机和输出使能功能
    •无铅，符合RoHS标准

    Microchip品牌-DSC1103DI2-312.5000-6G存储网络晶振规格表
    项目 规格说明 条件
    额定频率 312.5MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +85℃
    频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 32mA  Max
    Output Enabled, RL = 100Ω
    负载 15pf
    输出偏移电压（Vos） 1.4V  Max
    R = 100Ω Differential
    增量失调电压（ΔVOS） 50mV Max
    -
    输出上升下降时间 200ps Max  20%/80%
    RL = 50Ω,CL=15pF
    占空比 48%~52%
    输入逻辑电平高（VIH） 0.75×VDD Min
    Input  logic  high
    输入逻辑电平低（VIL） 0.25x VDD  Max
    Input  logic  low
    起始时间 5 ms Max T = +25°C
    周期抖动  2.5psRMS
    -
    集成相位噪声
    2psRMS
    12 kHz to 20 MHz @ 156.25 MHz

    Microchip品牌-DSC1103DI2-312.5000-6G存储网络晶振尺寸图

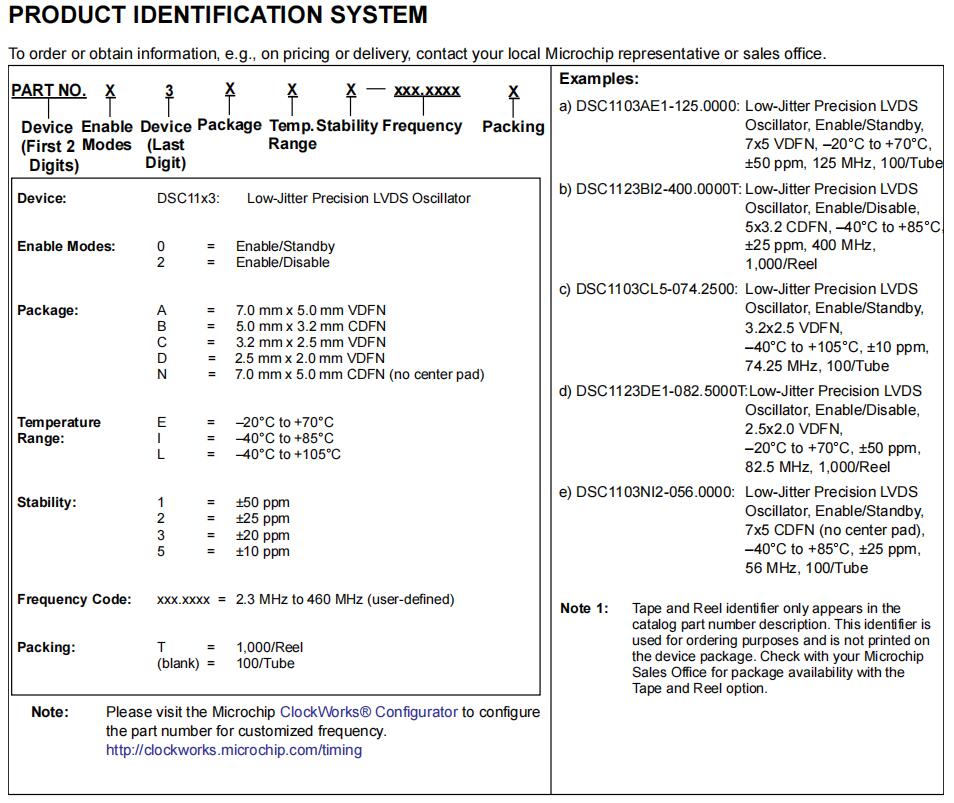

    原厂代码 晶振品牌 型号 频率 电压 尺寸
    DSC1103DI2-312.5000 Microchip Technology DSC1103 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103CI5-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103BI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103CI5-224.8200 Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103BL5-062.5000 Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CL5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-233.2090T Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-233.2090 Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-019.2000 Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103CE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103BE1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103AE1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103CI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103AI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103AI2-130.0000T Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103CI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103AI2-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BI2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103AI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BL2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CE5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE5-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-233.3333 Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-114.0000 Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-140.0000 Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-224.8200T Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103AI5-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BL5-062.5000T Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103DL5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DL5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-125.0060 Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-125.0060T Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103BE1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103AI1-112.0000 Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI1-112.0000T Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI1-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI1-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103CE2-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-012.0000 Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-012.0000T Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103NI1-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI1-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-083.3300T Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-083.3333T Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-212.5000T Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-300.0000T Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-120.0000T Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI2-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-168.5000T Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-166.0000T Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-244.0000T Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-233.3333T Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DE1-148.2500T Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103AE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-083.3300 Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-083.3333 Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE1-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI1-074.2129 Microchip Technology DSC1103 74.2129MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI1-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE2-168.5000 Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-166.0000 Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-244.0000 Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DE1-148.2500 Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103BL1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CE5-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DI1-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-019.2000T Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103NI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103NI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI2-130.0000 Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103BL1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103BL1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1103CI2-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103DI1-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103DI2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1103NI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AE2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103AI5-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1103CE5-266.6667 Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CE5-266.6667T Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-114.0000T Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1103CI5-140.0000T Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
