    • 首页欧美晶振Microchip晶振Microchip品牌-DSC1122CI2-103.1250-6G基站晶振

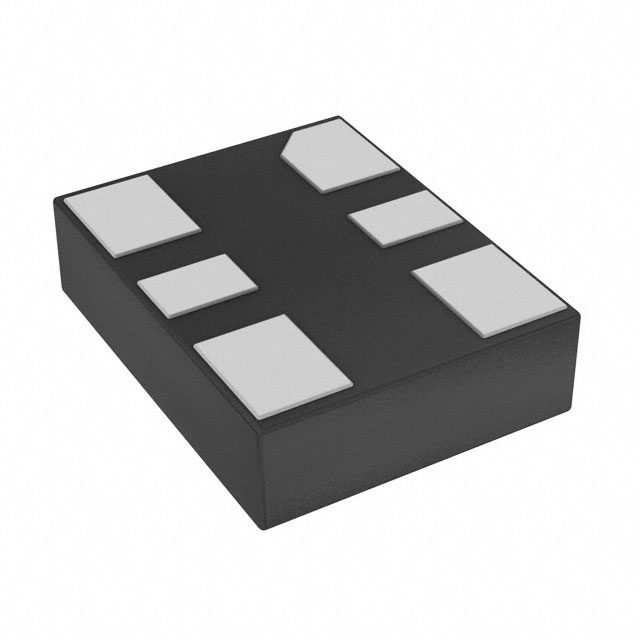

    Microchip品牌-DSC1122CI2-103.1250-6G基站晶振

    • 频率：103.125MHz
    • 尺寸：3.2×2.5mm
    • 应　用： 欧美进口晶振,Microchip晶振,DSC1122有源晶振,石英水晶振荡子,DSC1122CI2-103.1250晶振,SMD晶振,3225贴片晶振,LVPECL差分晶振,频率103.125MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,小体积晶振,抗振动晶振,无铅...
    • RoHS RoHS2

    Microchip品牌-DSC1122CI2-103.1250-6G基站晶振,欧美进口晶振,Microchip晶振,DSC1122有源晶振,石英水晶振荡子,DSC1122CI2-103.1250晶振,SMD晶振,3225贴片晶振,LVPECL差分晶振,频率103.125MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,小体积晶振,抗振动晶振,无铅环保晶振,6G基站晶振,网络附属存储晶振,固态硬盘晶振,移动通信晶振.
    Microchip品牌-DSC1122CI2-103.1250-6G基站晶振特点：
    •低RMS相位抖动:<1 ps(类型)
    •高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
    •宽温度范围:
    -Ext.工业:- 40°C至+105°C
    -工业:- 40℃~ +85℃
    -商用:- 20℃~ +70℃
    •高电源噪声抑制:-50 dBc
    •宽频率范围:2.3 MHz至460 MHz
    •小的行业标准足迹
    - 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
    •卓越的抗冲击和抗振动能力
    -符合MIL-STD-883标准
    •高可靠性
    - MTF比石英振荡器好20倍
    •低电流消耗
    •电源范围2.25至3.63V
    •待机和输出使能功能
    •无铅，符合RoHS标准
    •LVDS和HCSL版本可用

    Microchip品牌-DSC1122CI2-103.1250-6G基站晶振规格表
    项目 规格说明 条件
    额定频率 103.125MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +85℃
    频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 58mA  Max
    Output Enabled, RL = 50Ω
    负载 15pf
    输出逻辑电平低（Vol） VDD–1.55V  Max
    Output  logic  low
    输出逻辑电平高（Voh） VDD –1.08V Min
    Output  logic  high, RL = 50Ω
    输出上升下降时间 2ns Max  20%/80% CL=15pF
    占空比 48%~52%
    输入逻辑电平高（VIH） 0.75×VDD Min
    Input  logic  high
    输入逻辑电平低（VIL） 0.25x VDD  Max
    Input  logic  low
    起始时间 5 ms Max T = +25°C
    周期抖动  2.5psRMS
    -
    集成相位噪声
    2psRMS
    12 kHz to 20 MHz @ 156.25 MHz

    Microchip品牌-DSC1122CI2-103.1250-6G基站晶振尺寸图



    原厂代码 晶振品牌 型号 频率 电压 尺寸
    DSC1121CM2-040.0000 Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DM1-033.3333 Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121BM1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-080.0000 Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121CI2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121BI2-025.0007 Microchip Technology DSC1121 25.0007MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AE2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CM1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121AI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CI2-066.6667 Microchip Technology DSC1121 66.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-066.6660 Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DL2-024.7500T Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-024.7500T Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-024.7500T Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-032.0000T Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-032.0000T Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-032.0000T Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121AI2-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BI2-012.2880 Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121DI1-026.6000 Microchip Technology DSC1121 26.6MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CE1-025.0012 Microchip Technology DSC1121 25.0012MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CE5-012.2880 Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CE5-024.5670 Microchip Technology DSC1121 24.567MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI5-034.3680 Microchip Technology DSC1121 34.368MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CE1-133.3333 Microchip Technology DSC1121 133.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121BI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-004.0000 Microchip Technology DSC1121 4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BE2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BE2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121DI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-011.0590 Microchip Technology DSC1121 11.059MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-022.5792 Microchip Technology DSC1121 22.5792MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CI2-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-012.0000T Microchip Technology DSC1121 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-012.2880T Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-013.0000T Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-024.5760T Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-030.0000T Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-051.8400T Microchip Technology DSC1121 51.84MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-060.0000T Microchip Technology DSC1121 60MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-066.6660T Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-031.2500 Microchip Technology DSC1121 31.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-014.7456 Microchip Technology DSC1121 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-014.7456T Microchip Technology DSC1121 14.7456MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-066.6667T Microchip Technology DSC1121 66.6667MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121BI2-013.0000T Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-029.4912T Microchip Technology DSC1121 29.4912MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BI2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-025.0007T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AI2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NI2-018.4320 Microchip Technology DSC1121 18.432MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BI2-012.2880T Microchip Technology DSC1121 12.288MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121CE1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CE1-025.0012T Microchip Technology DSC1121 25.0012MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI1-036.0000T Microchip Technology DSC1121 36MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CE1-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CE1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI1-026.6000T Microchip Technology DSC1121 26.6MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CL2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-024.7500 Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AE2-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CE2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AI1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CE2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DL2-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-008.0000 Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-024.7500 Microchip Technology DSC1121 24.75MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-032.0000 Microchip Technology DSC1121 32MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI5-044.0000 Microchip Technology DSC1121 44MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI5-044.7360 Microchip Technology DSC1121 44.736MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CM1-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-026.5625 Microchip Technology DSC1121 26.5625MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AM1-030.0000T Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BM1-008.0000 Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-030.0000 Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-030.0000T Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AM1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BM1-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121CE1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121BM1-048.0000 Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121CE1-133.3333T Microchip Technology DSC1121 133.3333MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI2-125.0000B Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM1-033.3333T Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121AE1-156.2500 Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CI5-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-022.5000 Microchip Technology DSC1121 22.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-040.0000 Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-045.0000 Microchip Technology DSC1121 45MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AE1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CI5-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-049.1520 Microchip Technology DSC1121 49.152MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121NL1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NL1-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CI2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-168.0000 Microchip Technology DSC1121 168MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-115.0000 Microchip Technology DSC1121 115MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-132.0000 Microchip Technology DSC1121 132MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI2-133.3330T Microchip Technology DSC1121 133.333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DM2-003.3333T Microchip Technology DSC1121 3.3333MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM2-007.3728 Microchip Technology DSC1121 7.3728MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121AE2-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE2-156.2500 Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI1-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI5-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BM1-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AE2-156.2500T Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BE5-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-156.2540T Microchip Technology DSC1121 156.254MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-156.2540 Microchip Technology DSC1121 156.254MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121DI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121BI2-120.0000T Microchip Technology DSC1121 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-125.0037T Microchip Technology DSC1121 125.0037MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-150.0000T Microchip Technology DSC1121 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-150.0000T Microchip Technology DSC1121 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-156.2540T Microchip Technology DSC1121 156.254MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BI2-200.0000T Microchip Technology DSC1121 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-080.0000T Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AI2-148.5000 Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-150.0000 Microchip Technology DSC1121 150MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CL5-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL5-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL5-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL5-048.0000T Microchip Technology DSC1121 48MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM2-062.2080 Microchip Technology DSC1121 62.208MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AL2-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AL2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CM2-024.5454 Microchip Technology DSC1121 24.5454MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AM2-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-033.3330 Microchip Technology DSC1121 33.333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-066.6660 Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BM2-007.3728 Microchip Technology DSC1121 7.3728MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121AI5-125.0032 Microchip Technology DSC1121 125.0032MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121BM1-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121CI1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AE1-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CM1-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-075.0000 Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DM2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121CI5-016.6667 Microchip Technology DSC1121 16.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-016.6667T Microchip Technology DSC1121 16.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AI2-026.0000 Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-026.0000T Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI5-020.0000 Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI5-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121CI5-066.0000 Microchip Technology DSC1121 66MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-117.0000 Microchip Technology DSC1121 117MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-066.0000T Microchip Technology DSC1121 66MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-117.0000T Microchip Technology DSC1121 117MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121AM2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE5-022.5792 Microchip Technology DSC1121 22.5792MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE5-024.5760 Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE5-033.8688 Microchip Technology DSC1121 33.8688MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-010.0000C Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-019.4400 Microchip Technology DSC1121 19.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-019.4400C Microchip Technology DSC1121 19.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-019.4400T Microchip Technology DSC1121 19.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-066.6666 Microchip Technology DSC1121 66.6666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-066.6666T Microchip Technology DSC1121 66.6666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI5-019.4400C Microchip Technology DSC1121 19.44MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM1-030.0000 Microchip Technology DSC1121 30MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BI1-075.0000 Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI1-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-013.0000 Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BL2-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BL2-027.0000T Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BL2-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BL2-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM1-027.0000 Microchip Technology DSC1121 27MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM5-016.0000 Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM5-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM5-075.0000 Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BM5-075.0000T Microchip Technology DSC1121 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121CI5-080.0000 Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-080.0000T Microchip Technology DSC1121 80MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CI5-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-033.3333 Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-033.3333T Microchip Technology DSC1121 33.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CL2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM5-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM5-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM5-040.0000 Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121CM5-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
    DSC1121DI5-010.0000 Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI5-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI5-044.0000T Microchip Technology DSC1121 44MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI5-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DI5-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL5-090.0000 Microchip Technology DSC1121 90MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DL5-090.0000T Microchip Technology DSC1121 90MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM1-050.0000 Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM1-050.0000T Microchip Technology DSC1121 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM2-024.0000 Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM2-024.0000T Microchip Technology DSC1121 24MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121DM5-005.0000 Microchip Technology DSC1121 5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
    DSC1121NE2-025.0000 Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE5-020.0000 Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE5-020.0000T Microchip Technology DSC1121 20MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE5-066.6660 Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE5-066.6660T Microchip Technology DSC1121 66.666MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE5-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NE5-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NI2-100.0000 Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NI2-125.0000 Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121NI2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-012.0000T Microchip Technology DSC1121 12MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-014.3182T Microchip Technology DSC1121 14.3182MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-016.4000T Microchip Technology DSC1121 16.4MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-024.5760T Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE1-156.2500T Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE2-025.0000C Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AE2-125.0000T Microchip Technology DSC1121 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-003.6864T Microchip Technology DSC1121 3.6864MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-013.0000T Microchip Technology DSC1121 13MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-025.0006T Microchip Technology DSC1121 25.0006MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-062.5000T Microchip Technology DSC1121 62.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-065.5360T Microchip Technology DSC1121 65.536MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-120.0000T Microchip Technology DSC1121 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-125.0032T Microchip Technology DSC1121 125.0032MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-125.0037T Microchip Technology DSC1121 125.0037MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-131.0750T Microchip Technology DSC1121 131.075MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-156.2500T Microchip Technology DSC1121 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-163.8400T Microchip Technology DSC1121 163.84MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-163.8400T-N Microchip Technology DSC1121 163.84MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI2-165.0000T Microchip Technology DSC1121 165MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI5-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AI5-019.4400T Microchip Technology DSC1121 19.44MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM1-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM1-024.5760T Microchip Technology DSC1121 24.576MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM1-033.0000T Microchip Technology DSC1121 33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM1-100.0000T Microchip Technology DSC1121 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-014.7456T Microchip Technology DSC1121 14.7456MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-025.0000T Microchip Technology DSC1121 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121AM2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
    DSC1121BI1-016.0000T Microchip Technology DSC1121 16MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI1-026.0000T Microchip Technology DSC1121 26MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI1-062.5000T Microchip Technology DSC1121 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI1-125.0038T Microchip Technology DSC1121 125.0038MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-008.0000T Microchip Technology DSC1121 8MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-010.0000T Microchip Technology DSC1121 10MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-040.0000T Microchip Technology DSC1121 40MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-066.6666T Microchip Technology DSC1121 66.6666MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-148.5000T Microchip Technology DSC1121 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-153.6000T Microchip Technology DSC1121 153.6MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI2-156.2539T Microchip Technology DSC1121 156.2539MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    DSC1121BI5-148.3516T Microchip Technology DSC1121 148.3516MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
