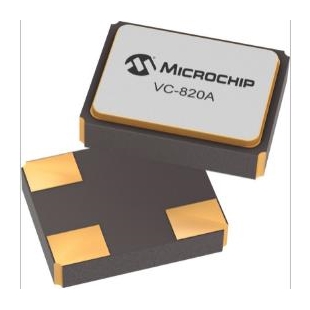

    VC-820A-EA7-KAAN-50M0000000TR,Microchip品牌,6G室外基站晶振

    • 频率：50MHz
    • 尺寸：3.2×2.5mm
    • 应　用： 欧美进口晶振,Microchip晶振,VC-820A贴片石英晶振,有源晶振,VC-820A-EA7-KAAN-50M0000000TR晶振,3225mm晶振,SMD晶振,CMOS输出晶体振荡器,频率78.125MHz,电压3.3V,工作温度-40~125°C,频率稳定性50ppm,耐高温晶振,高品...
    • RoHS RoHS2

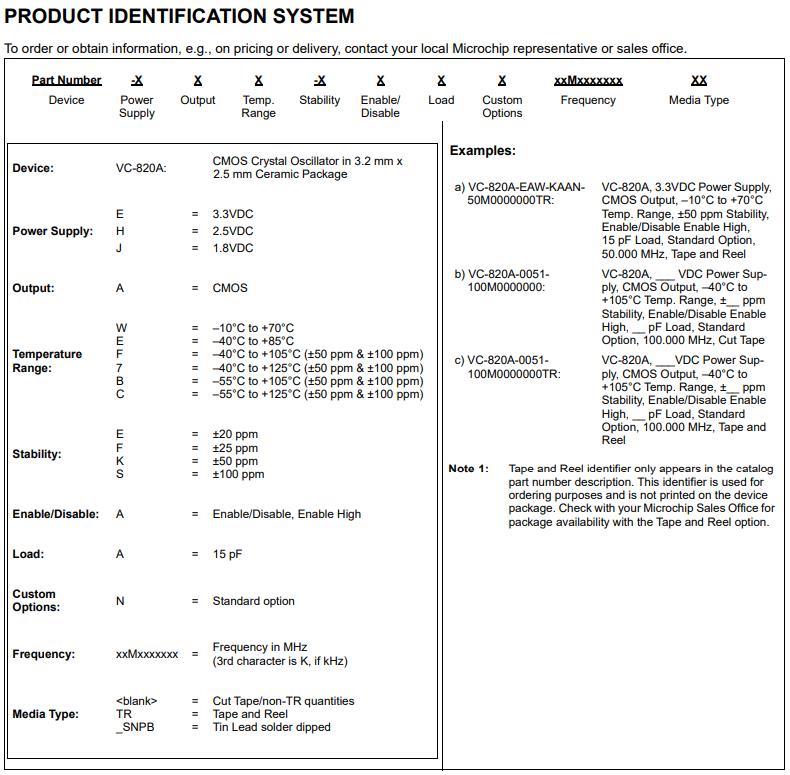

    VC-820A-EA7-KAAN-50M0000000TR,Microchip品牌,6G室外基站晶振,欧美进口晶振,Microchip晶振,VC-820A贴片石英晶振,有源晶振,VC-820A-EA7-KAAN-50M0000000TR晶振,3225mm晶振,SMD晶振,CMOS输出晶体振荡器,频率78.125MHz,电压3.3V,工作温度-40~125°C,频率稳定性50ppm,耐高温晶振,高品质晶振,低老化晶振,6G室外基站晶振,数字视频晶振,宽带接入晶振,光纤通道晶振.
    VC-820A-EA7-KAAN-50M0000000TR,Microchip品牌,6G室外基站晶振特点：
    •超低抖动性能，第三OT或基本晶体设计
    •CMOS输出晶体振荡器
    •输出频率从1.024 MHz到160.000MHz
    •+1.8，+2.5，+3.3或+5.0V操作
    •输出禁用功能
    •卓越的±20 ppm温度稳定性
    •-10/70°C至-55/125°C操作温度选项
    •小型工业标准包装，3.2 × 2.5毫米(产品符合RoHS指令，完全兼容无铅组装，不包括浸焊，_SNPB，选项。)


    VC-820A-EA7-KAAN-50M0000000TR,Microchip品牌,6G室外基站晶振规格表
    项目 规格说明 条件
    额定频率 50MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +125℃
    频率稳定度 ±50ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 18mA  Max
    3.3V 40.001 MHz to 65 MHz
    负载
    100 ohms diff erential

    输出逻辑电平低（Vol） 0.1 × VDD  Max
    输出逻辑电平高（Voh） 0.9 × VDD  Min
    输出上升下降时间 5ns Max
    20.001 MHz to 50 MHz
    占空比 45%~55%
    起始时间 10 ms Max
    禁用时间 200ns  Max
    周期抖动
    2.3 ps
    100 MHz, RMS
    RMS Jitter
    		 115fs  Max
    12 kHz to 20 MHz

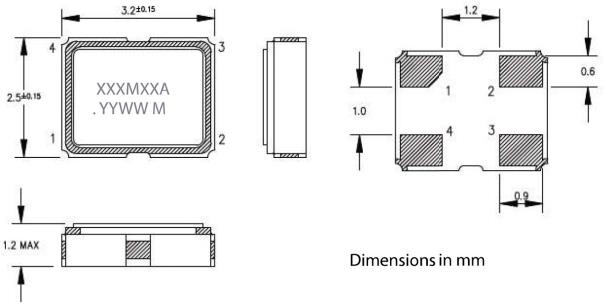

    VC-820A-EA7-KAAN-50M0000000TR,Microchip品牌,6G室外基站晶振尺寸图
