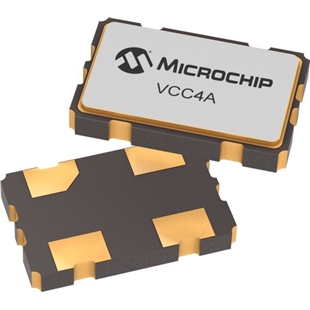

    VCC4A-B3F-49M1520000TR-Microchip品牌-6G以太网晶振

    • 频率：49.152MHz
    • 尺寸：5.0×3.2mm
    • 应　用： 欧美进口晶振,Microchip晶振,VCC4A晶体振荡器,VCC4A-B3F-49M1520000TR晶振,5032mm晶振,贴片石英晶振,四脚贴片晶振,CMOS输出晶振,频率49.152MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,高稳定性晶振,抗冲击晶振,...
    • RoHS RoHS2

    VCC4A-B3F-49M1520000TR-Microchip品牌-6G以太网晶振,欧美进口晶振,Microchip晶振,VCC4A晶体振荡器,VCC4A-B3F-49M1520000TR晶振,5032mm晶振,贴片石英晶振,四脚贴片晶振,CMOS输出晶振,频率49.152MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,高稳定性晶振,抗冲击晶振,抗振动晶振,6G以太网晶振,存储区域网络晶振,数字视频晶振,宽带接入晶振.

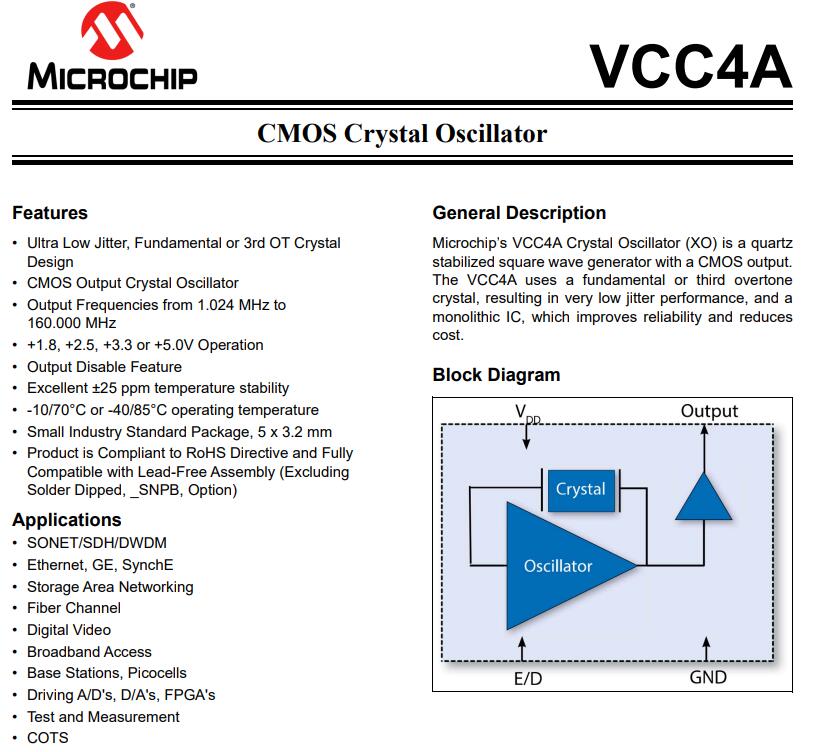

    VCC4A-B3F-49M1520000TR-Microchip品牌-6G以太网晶振特点：
    •超低抖动性能，基本或第三OT晶体设计
    •CMOS输出晶体振荡器
    •输出频率从1.024 MHz到160.000兆赫
    •+1.8，+2.5，+3.3或+5.0V操作
    •输出禁用特性
    •卓越的±25 ppm温度稳定性
    •-10/70°C或-40/85°C工作温度
    •小型工业标准包装，5 x 3.2毫米
    •产品完全符合RoHS指令要求，兼容无铅组件(不包括焊料浸焊，_SNPB，可选)

    VCC4A-B3F-49M1520000TR-Microchip品牌-6G以太网晶振规格表
    项目 规格说明 条件
    额定频率 49.152MHz 请联系我们以便获取其它可用频率的相关信息
    电源电压 3.3V
    储存温度 -55℃~+150℃ 裸存
    工作温度 -40℃~ +85℃
    频率稳定度 ±25ppm 包括由初始公差、温度和电源电压引起的频率变化
    老化 ±5ppm 1 year @ +25°C
    电流 18mA  Max
    40.001 MHz to 65 MHz
    负载 15pF
    空载电流 60mA
    输出逻辑电平低（Vol） 0.1 × VDD  Max
    输出逻辑电平高（Voh） 0.9 × VDD Min
    输出上升下降时间 5 ns Max
    20.001 MHz to 50 MHz
    占空比 45%~55%
    起始时间 10 ms Max 3.3V
    禁用时间 100ns  Max 3.3V
    周期抖动   2.8ps Typ 100 MHz, RMS
    RMS抖动 115 fs  Max
    12 kHz to 20 MHz

    VCC4A-B3F-49M1520000TR-Microchip品牌-6G以太网晶振尺寸图
