    • 首页欧美晶振微晶晶振CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太网晶振

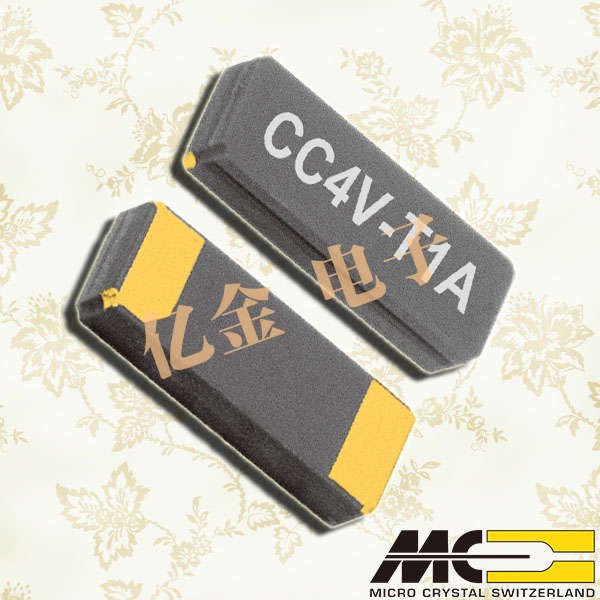

    CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太网晶振

    • 频率：32.768KHz
    • 尺寸：5.0×1.9mm
    • 应　用： 瑞士微晶晶振,CC4V-T1A无源晶振,CC7V-T1A-32.768kHz-12.5pF-20ppm-TA-QC晶振,5019mm石英晶振,SMD晶体,金锡预制件的出色密封保证了高稳定性和低老化,适用于恶劣环境的成熟产品,频率32.768KHz,负载12.5pF,6G以太网晶振,...
    • RoHS RoHS2

    CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太网晶振,瑞士微晶晶振,CC4V-T1A无源晶振,CC7V-T1A-32.768kHz-12.5pF-20ppm-TA-QC晶振,5019mm石英晶体,SMD晶振,金锡预制件的出色密封保证了高稳定性和低老化,适用于恶劣环境的成熟产品,频率32.768KHz,负载12.5pF,6G以太网晶振,医用植入式晶振,工业设备晶振.
    CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太网晶振特点：
    卓越的密封与金-锡预制
    适用于恶劣环境的成熟产品
    高稳定性，低老化，密封保证
    可扩展工作温度范围
    高抗冲击和抗振动
    100%不含铅，符合rohs标准
    具备AEC-Q200汽车资质

    CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太网晶振规格表
    标准频率 FL 32.768 KHz
    负载 CL 12.5 pF
    频率容差 ΔF/F ±20 ppm
    串联电阻最大值 RS 50/65 kΩ
    储存温度 T_stg −55~+125 °C
    工作温度 T_use −40~+85 °C
    最大驱动电平 P 1 μW
    最小绝缘电阻
    Ri
    		 500
    MΩ
    老化第一年 ΔF/F ±3 ppm

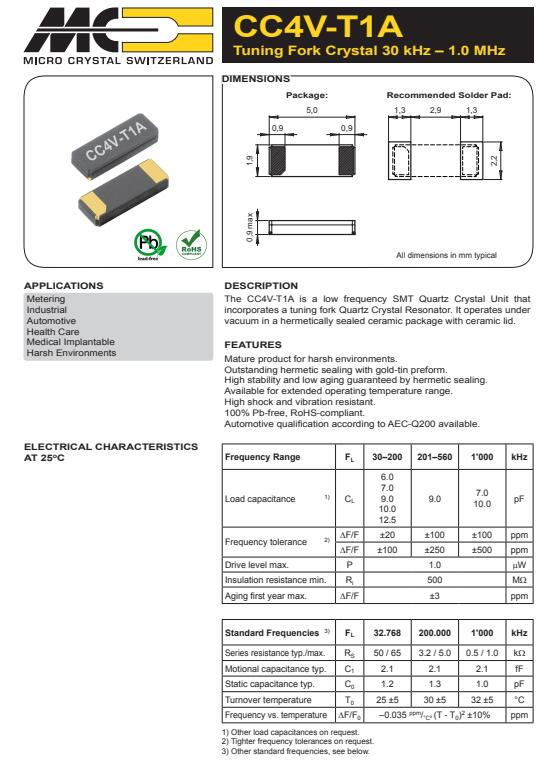

    CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太网晶振尺寸图


    制造商零件编号 制造商 描述 产品类型
    MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
    CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
    MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
    CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
    CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
    CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
    CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
    MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals
    CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
    CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
    CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
    CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
    CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals
    CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals
    CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals
    CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals
    CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
    CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
    CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
    CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals
    CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
    CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
    CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
    CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
    CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
    CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
    CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
    CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
    CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
    CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
    CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
    CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
    CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
    CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals
    CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals
    CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals
    CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
    CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
    CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
