    CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振

    • 频率：48MHz
    • 尺寸：2.0×1.2mm
    • 应　用： 微晶晶振,CC8A-T1A石英晶振,无源晶振,CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM晶振,贴片石英晶振,2012mm晶振,SMD晶振,频率48MHz,负载9.0pF,工作温度-40~125°C,频率容差30ppm,小体积晶振,高可靠性晶振,低老化晶振,医疗设...
    • RoHS RoHS2


    CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振,微晶晶振,CC8A-T1A石英晶振,无源晶振,CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM晶振,贴片石英晶振,2012mm晶振,SMD晶振,频率48MHz,负载9.0pF,工作温度-40~125°C,频率容差30ppm,小体积晶振,高可靠性晶振,低老化晶振,医疗设备专用晶振,耳蜗植入设备晶振,心脏监测装置晶振,去纤颤器晶振.
    CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振特点：
    •安全的氦气环境:陶瓷盖与金-锡预密封，最佳的长期密封性和稳定性
    •专有的制造和测试流程
    •长期老化稳定性
    •工作温度范围:-55℃~ +125℃
    •根据客户要求进行特定测试/筛选
    •保留组件和生产可追溯性记录
    •以基本模式运行
    •体积小，外形低，重量轻(4.2毫克)

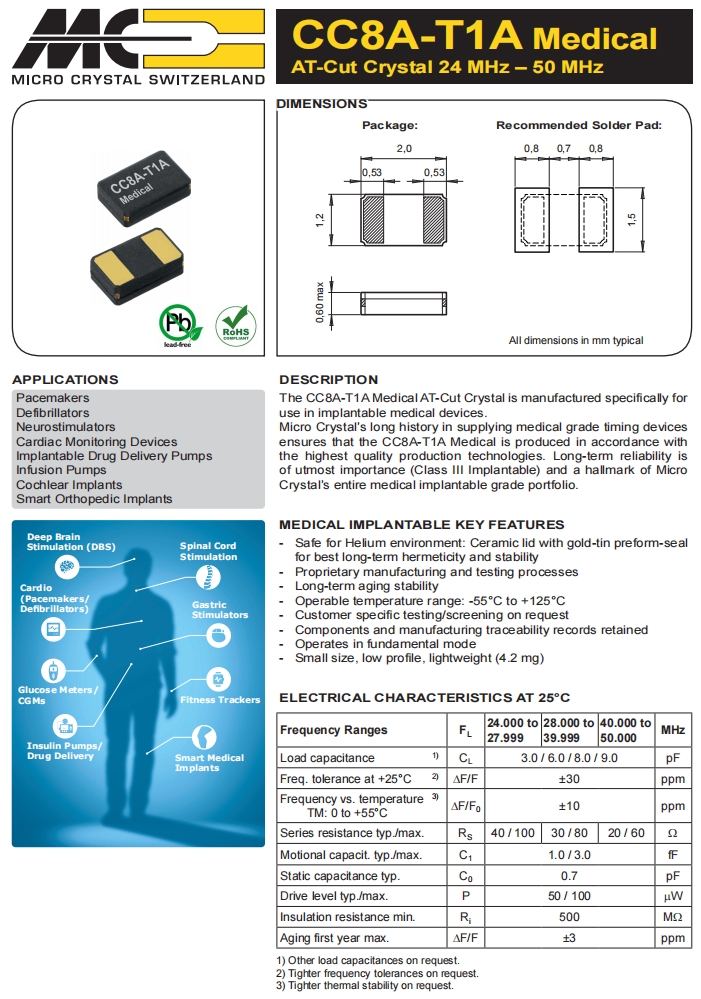

    CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振规格表
    Standard Frequency
    		 FL 48 MHz
    Load capacitance
    		 CL 9.0 pF
    Frequency tolerance at  +25°C
    		 ΔF/F ±30 ppm
    Frequency vs. temperature
    TM: 0 to +55°C
    		 ΔF/F0 ±10 ppm
    Series resistance typ./max.
    RS
    20 / 60
    		 Ω
    Motional capacit. typ./max.
    C1
    1.0 / 3.0
    fF
    Static capacitance typ.
    C0
    0.7
    pF
    Drive level typ/max.
    		 P 50/100
    μW
    Insulation resistance min.
    Ri
    		 500
    MΩ
    Aging first year max.
    ΔF/F
    ±3
    		 ppm
    Storage temperature range
    T_stg
    		 −55~+125
    °C
    Operating temperature range
    		 T_use −40~+125 °C
    Shock resistance

    5000 g, 0.3 ms, ½ sine

    Vibration resistance

    20 g / 10–2000 Hz

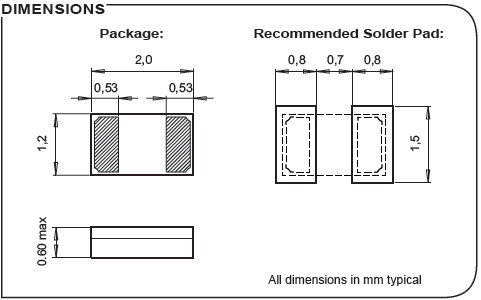

    CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶医疗设备专用晶振尺寸图
