首页欧美晶振微晶晶振CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振

  • 频率:32.768KHz
  • 尺寸:3.2×1.5mm
  • 应 用: CM7V-T1A无源晶振,CM7V-T1A32.768kHz12.5pF±20ppmTBQA晶振,瑞士微晶晶振,3215mm晶振,32.768KHz晶振,负载12.5pf,工作温度-40~125°C,频率稳定性20ppm,具备AEC-Q200汽车资质,耐高温晶振,无铅环保晶振,汽车电子控制板晶...
  • RoHS RoHS2

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振,CM7V-T1A无源晶振,CM7V-T1A32.768kHz12.5pF±20ppmTBQA晶振,瑞士微晶晶振,3215mm晶振,32.768KHz晶振,负载12.5pf,工作温度-40~125°C,频率稳定性20ppm,具备AEC-Q200汽车资质,耐高温晶振,无铅环保晶振,汽车电子控制板晶振,汽车音影系统晶振,医疗设备应用晶振,6G路由器晶振.
CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振特点:

卓越的密封与金-锡预制
高稳定性,低老化,密封保证
可扩展工作温度范围
体积小,外形低,重量轻(10.3毫克)
高抗冲击和抗振动
100%不含铅,符合rohs标准

具备AEC-Q200汽车资质

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振规格表
标准频率 FL 32.768 KHz
负载 CL 12.5 pF
频率容差 ΔF/F ±20 ppm
串联电阻最大值 RS 50/70
储存温度 T_stg −55~+125 °C
工作温度 T_use −40~+125 °C
最大驱动电平 P 1.0 μW
最小绝缘电阻
Ri
500
老化第一年 ΔF/F ±3 ppm

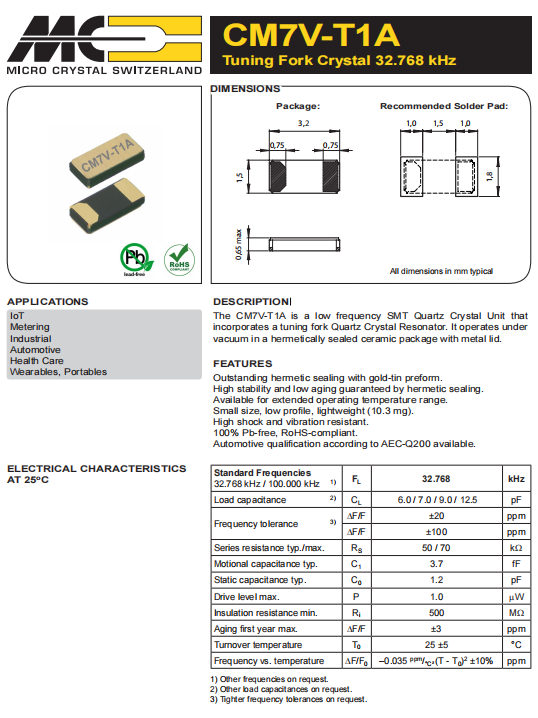

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振尺寸图


制造商零件编号 制造商 描述 产品类型
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR Crystals
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C Crystals
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
