    MICRO晶振|OM-0100-C7-20ppm-TA-QC|低频SMT振荡器

    • 频率：100KHz
    • 尺寸：3.2×1.5mm
    • 应　用： MICRO晶振,OM-0100-C7进口有源晶振,低频SMT振荡器,OM-0100-C7-20ppm-TA-QC晶振,贴片石英晶振,晶体振荡器,3215mm晶振,四脚贴片晶振,频率100KHz,电压1.2~5.5V,工作温度-40~85°C,频率容差20ppm,低功耗晶振,高抗冲击晶振...
    • RoHS RoHS2


    MICRO晶振|OM-0100-C7-20ppm-TA-QC|低频SMT振荡器,MICRO晶振,OM-0100-C7进口有源晶振,低频SMT振荡器,OM-0100-C7-20ppm-TA-QC晶振,贴片石英晶振,晶体振荡器,3215mm晶振,四脚贴片晶振,频率100KHz,电压1.2~5.5V,工作温度-40~85°C,频率容差20ppm,低功耗晶振,高抗冲击晶振,高抗振动晶振,笔记本电脑晶振,可穿戴设备晶振,智能手机晶振,FPGA/ASIC时钟生成晶振.
    MICRO晶振|OM-0100-C7-20ppm-TA-QC|低频SMT振荡器特点：
    •宽电源电压范围
    •非常低的功耗
    •CLKOUT启用/禁用
    •小尺寸，低轮廓，重量轻(10.6毫克)
    •高抗冲击和抗振动
    •100%不含铅，符合RoHS标准
    •具备AEC-Q200汽车资质

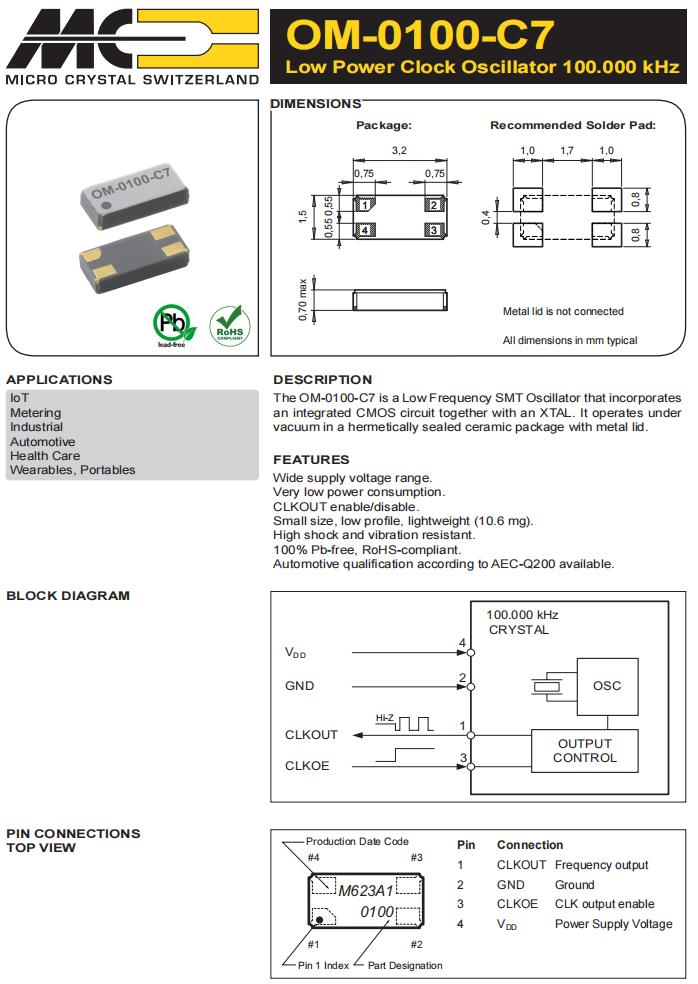

    MICRO晶振|OM-0100-C7-20ppm-TA-QC|低频SMT振荡器规格表
    Standard Frequency
    		 FL 100.000 KHz
    Supply voltage
    VDD
    		 1.2~5.5 V
    Frequency tolerance
    		 ΔF/F ±20 ppm
    Current consumption (typ./max.)
    IDD
    0.65 / 0.85
    µA
    Duty cycle (min./max.)

    40 / 60
    		 %
    Start up time (max.)
    tstart
    0.5
    S
    Voltage coefficient (max.)

    ±1.5
    ppm/V
    Aging first year max. @ 25°C
    ΔF/F
    ±3
    ppm
    Turnover temperature (typ.)
    T0
    18 ±5
    °C
    Frequency vs. temperature
    ΔF/F0
    –0.035 ppm/ °C² (T - T0)2 ±10%
    		 ppm
    Storage temperature range
    T_stg
    		 −55~+125
    °C
    TA Operating temperature range
    		 T_use −40~+85 °C
    Shock resistance

    5000 g, 0.3 ms, ½ sine

    Vibration resistance

    20 g / 10–2000 Hz

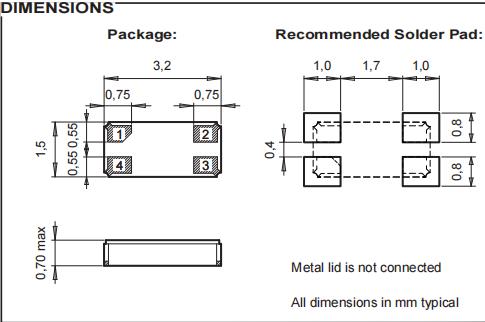

    MICRO晶振|OM-0100-C7-20ppm-TA-QC|低频SMT振荡器尺寸图

    制造商零件编号 制造商 描述
    OV-7604-C7-32.768k-20PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
    OV-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    OV-0100-C7-100.000kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
    OM-0100-C8-100.00kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
    MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    OM-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    OM-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C
    MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
    CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
    CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
    CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
    CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C
    CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
    CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR
    CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
    CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
    CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
    CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
    CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
    CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm
    CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm
    CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm
    CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
    CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
    CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    202684-MC03 Micro Crystal 晶体 32.768 kHz 4.0 pF +/-20 PPM -40/+85C
    CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
    202273-EA00 Micro Crystal 标准时钟振荡器 128MHz 20ppm -55C +85C
    MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    OV-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
    CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
    CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
    CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
    CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C
    CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C
    CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
    CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
    CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
    CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
    CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
    CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C
    CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
    CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
    CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
    CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
    CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
    CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
    MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
    OV-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C
    OM-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
    CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
    OV-7604-C7-32.768k-10PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
    OV-7604-C7-32.768k-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
    CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
    CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C
    CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro Crystal 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C
    CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C
    CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C
    CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C
    CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
    CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C
    CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C
    CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C
    CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
    MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C
    CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
    CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
    OV-7604-C7-32.768kHz-10PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+85C
    OV-0100-C7-100.000kHz-50PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C
    CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC Micro Crystal 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C
    CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C
    CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C
    CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C
    200125-PL08 Micro Crystal 晶体 32.768kHz 7pF +/-10 PPM -40C +85C
    OM-7605-C8-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V
    CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
    CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
    公司：深圳市亿金电子有限公司
    SHENZHEN YIJIN ELECTRONICS CO;LTD
    电话：0755-27876565
    手机：18924600166
    QQ：857950243
    邮箱：yijindz@163.com
    网站：http://www.yijindz.com
    地址：广东省深圳市宝安区新安107国道旁

    相关产品

    首 页|国产晶振|进口晶振|欧美晶振|有源晶振|亿金路程|人才招聘|常见问题|客户留言|网站地图|在线问答|RSS订阅|联系亿金
    Copyright © 1996-2012 亿金电子 版权所有
    电话：+86-0755-27876565 手机:18924600166　MSN:yijindz@msn.cn
    E-mail：yijindz@163.com QQ:857950243
    网站:www.yijindz.com
    地址：深圳市宝安区新安107国道旁甲岸路
    粤ICP备17105583号-2
    诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴：
    深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
    石英晶振,贴片晶振,32.768K晶振,SC-32S精工晶振,SSP-T7精工晶振,SC-20S精工晶振,DST310SKDS晶振,MC-146爱普生晶振,FC-135爱普生晶振,2X6KDS晶振,差分晶振,2520温补晶振,有源贴片晶振,压控晶体振荡器,315M声表面滤波器,F11-315声表面滤波器,CSTCR-G15村田陶瓷晶振,CSTCR-G15村田陶瓷晶振,110K微孔雾化片,16mm陶瓷雾化片,1.7M雾化片,加湿器雾化片,进口晶振,陶瓷晶振,
    kf
    kf
    close
    kf 亿金微信号
