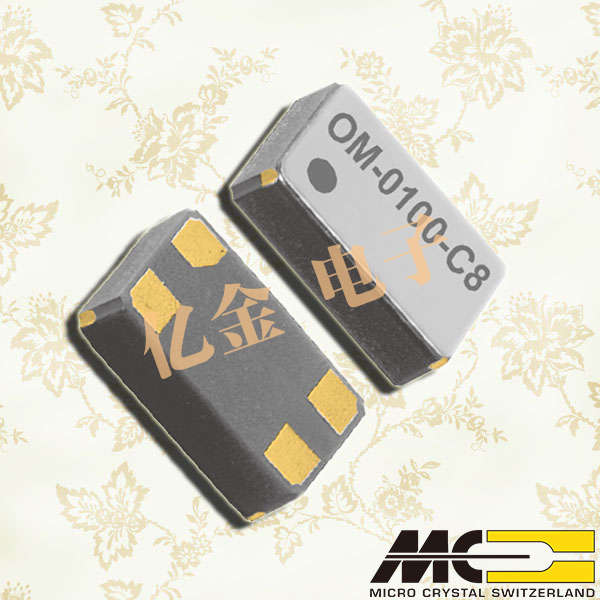

Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器

  • 频率:100KHz
  • 尺寸:2.0×1.2mm
  • 应 用: 欧美晶振,Micro Crystal晶振,OM-0100-C8时钟振荡器,有源晶振,OM-0100-C8-20ppm-TA-QC晶振,千赫晶体KHZ,石英晶体振荡器,2012mm晶振,四脚贴片晶振,SMD晶振,频率100KHz,电压1.2~5.5V,工作温度-40~85°C,频率容差20ppm,无...
  • RoHS RoHS2


Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器,欧美晶振,Micro Crystal晶振,OM-0100-C8时钟振荡器,有源晶振,OM-0100-C8-20ppm-TA-QC晶振,千赫晶体KHZ,石英晶体振荡器,2012mm晶振,四脚贴片晶振,SMD晶振,频率100KHz,电压1.2~5.5V,工作温度-40~85°C,频率容差20ppm,无铅环保晶振,低功耗晶振,轻薄小晶振,物联网晶振,工业自动化晶振,测试与测量仪器晶振,卫生保健晶振.
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器特点:
•宽电源电压范围
•非常低的功耗
•CLKOUT启用/禁用
•小尺寸,低轮廓,重量轻(5.1毫克)
•高抗冲击和抗振动
•100%不含铅,符合RoHS标准
•具备AEC-Q200汽车资质



Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器规格表
Standard Frequency
FL 100.000 KHz
Supply voltage
VDD
1.2~5.5 V
Frequency tolerance
ΔF/F ±20 ppm
Current consumption (typ./max.)
IDD
0.55 / 0.75
µA
Duty cycle (min./max.)

40 / 60
%
Start up time (max.)
tstart
0.5
S
Voltage coefficient (max.)

±3
ppm/V
Aging first year max. @ 25°C
ΔF/F
±3
ppm
Turnover temperature (typ.)
T0
28 ±5
°C
Frequency vs. temperature
ΔF/F0
–0.035 ppm/ °C² (T - T0)2 ±10%
ppm
Storage temperature range
T_stg
−55~+125
°C
TA Operating temperature range
T_use −40~+85 °C
Shock resistance

5000 g, 0.3 ms, ½ sine

Vibration resistance

20 g / 10–2000 Hz


Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器尺寸图

制造商零件编号 制造商 描述
OV-7604-C7-32.768k-20PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
OV-0100-C7-100.000kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
OM-0100-C8-100.00kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
OM-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
OM-7604-C7-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
202684-MC03 Micro Crystal 晶体 32.768 kHz 4.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
202273-EA00 Micro Crystal 标准时钟振荡器 128MHz 20ppm -55C +85C
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C
CC7V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C
CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro Crystal 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CC7V-T1A-32.768k-9pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro Crystal 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
OV-7605-C8-32.768kHz-20PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C
OM-7604-C7-32.768kHz-20PPM-TB-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
CC4V-T1A-32.768k-9pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
OV-7604-C7-32.768k-10PPM-TB-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
OV-7604-C7-32.768k-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC Micro Crystal 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC Micro Crystal 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC Micro Crystal 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC Micro Crystal 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C
CC4V-T1A-32.768k-9pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au Micro Crystal 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC Micro Crystal 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C
OV-7604-C7-32.768kHz-10PPM-TA-QC Micro Crystal 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+85C
OV-0100-C7-100.000kHz-50PPM-TA-QC Micro Crystal 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC Micro Crystal 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC Micro Crystal 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC Micro Crystal 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC Micro Crystal 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C
200125-PL08 Micro Crystal 晶体 32.768kHz 7pF +/-10 PPM -40C +85C
OM-7605-C8-20PPM-TA-QA Micro Crystal 标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA Micro Crystal 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 Micro Crystal 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

相关产品

诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴:
深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
kf
kf
close
kf 亿金微信号
