首页进口晶振 NKG晶振NKG晶振|01-CR3-03-22M1184-T18-2030E-EXT|HC-49S贴片晶振

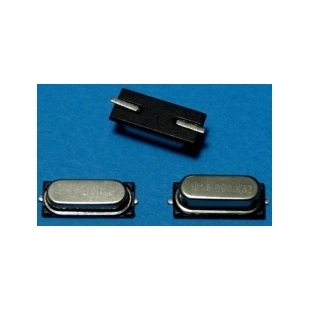

NKG晶振|01-CR3-03-22M1184-T18-2030E-EXT|HC-49S贴片晶振

频率：22.1184MHz
尺寸：13.0×4.7×4.5mm
应　用： NKG晶振,01-CR3-03无源晶振,HC-49S贴片晶振,01-CR3-03-22M1184-T18-2030E-EXT晶振,石英晶振,13 x 4.7 mm晶振,SMD晶振,晶体谐振器,频率22.1184MHz,负载18pF,工作温度-20~70°C,频率容差20pm,高可靠性晶振,无铅环保晶振...

NKG晶振|01-CR3-03-22M1184-T18-2030E-EXT|HC-49S贴片晶振,NKG晶振,01-CR3-03无源晶振,HC-49S贴片晶振,01-CR3-03-22M1184-T18-2030E-EXT晶振,石英晶振,13 x 4.7 mm晶振,SMD晶振,晶体谐振器,频率22.1184MHz,负载18pF,工作温度-20~70°C,频率容差20pm,高可靠性晶振,无铅环保晶振,低成本晶振,以太网晶振,数字电视晶振,音频系统晶振,单片机晶振.
NKG晶振|01-CR3-03-22M1184-T18-2030E-EXT|HC-49S贴片晶振特点
●传统的HC-49/S封装在SMD形式与2引线
●最适用于低频
●可靠的密封金属罐包装

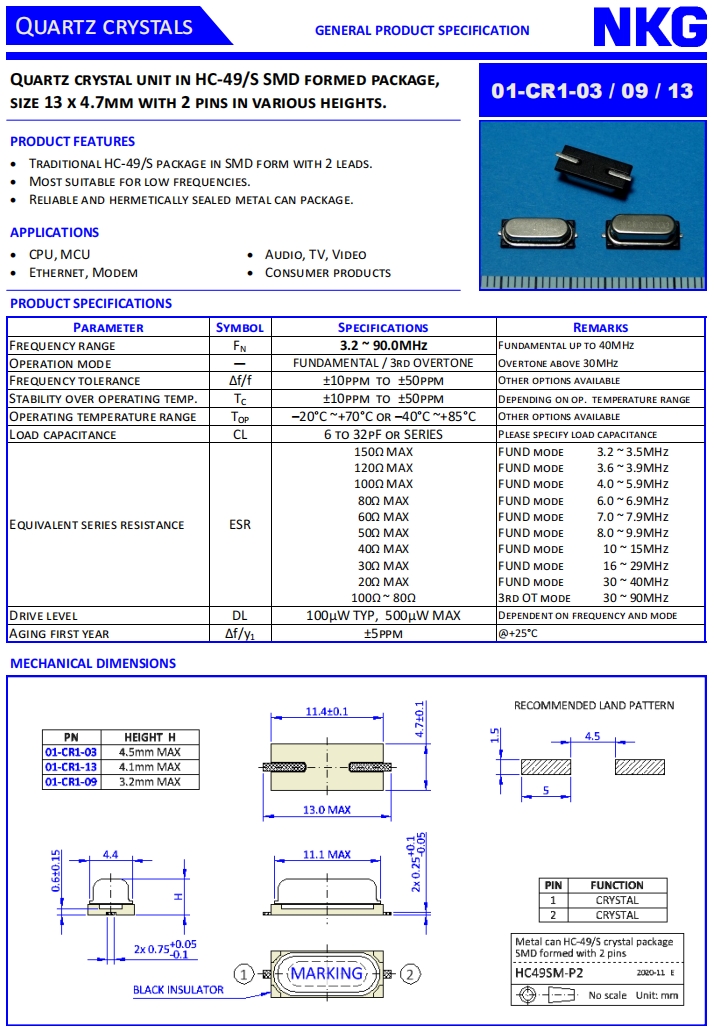

NKG晶振|01-CR3-03-22M1184-T18-2030E-EXT|HC-49S贴片晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	22.1184MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperature range, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	30ΩMAX	FUND mode 16~ 29MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C

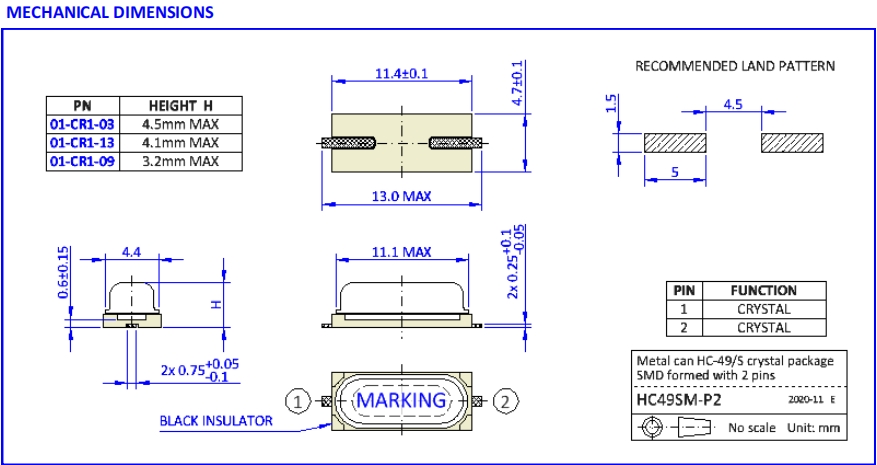

NKG晶振|01-CR3-03-22M1184-T18-2030E-EXT|HC-49S贴片晶振尺寸图
