首页进口晶振百利通亚陶晶振F91200084-12MHz-20PPM-18PF-5032-DIODES

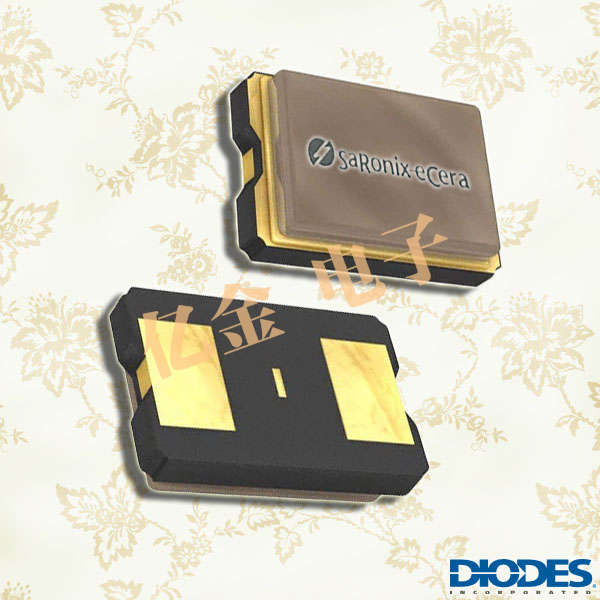

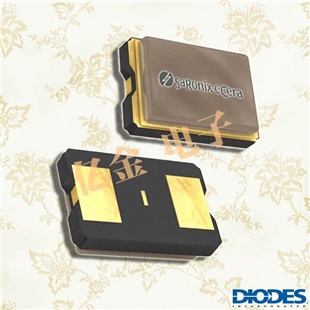

F91200084-12MHz-20PPM-18PF-5032-DIODES

  • 频率:12MHz
  • 尺寸:5032
  • 应 用: F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES,台湾Diodes晶振,坚固的AT-cut晶体结构微型5.0x3.2mm陶瓷包装,可卷带12mm胶带,1000个单位FY:无铅和RoHS/绿色兼容F9:RoHS兼容*(*根据#5,指令2002/05/EC附件)...
  • RoHS RoHS2

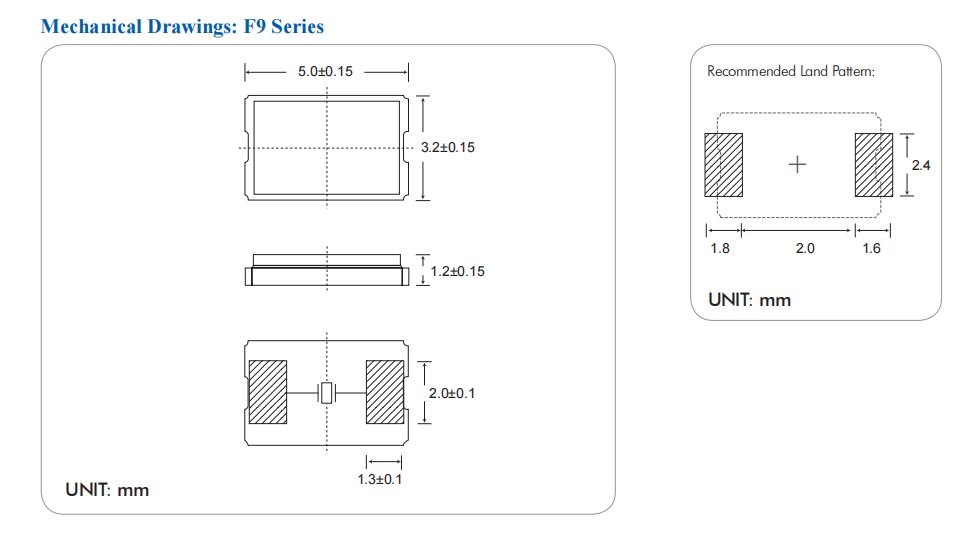

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES,台湾Diodes晶振坚固的AT-cut晶体结构微型5.0 x 3.2mm陶瓷包装,可卷带12mm胶带,1000个单位FY:无铅和RoHS/绿色兼容F9: RoHS兼容*(*根据#5,指令2002/05/EC附件),2垫F9系列玻璃密封和4垫FY系列接缝密封装置采用标准的5.0 x 3.2mm封装封装。这些协议用于PCB应用中的表面安装,PCMCIA卡,便携式/手持式个人电脑,笔记本电脑,无线局域网,便携式多媒体设备,GPS,硬盘,蓝牙,USB适配器

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

Parameters Minimum Typical Maximum Units
频率 8.000   50.000 MHz
操作模式 Fundamental
工作温度 - 10   +50 ºC
储存温度 --40   +85 ºC
频率容差 @+25°C --50   +50 ppm
工作温度下的频率稳定性 ( ref. to +25°C) --50   +50 ppm
并联电容 (C0)     5 pF
   负载电容 (CL)
8 to 32
pF
驱动电平   10 100 µW
老化 --5   +5 ppm

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

DIODES原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 工作温度
FY2500117 Diodes晶振 FY 25MHz ±20ppm ±20ppm 18pF -40°C ~ 85°C
FY2500117 Diodes晶振 FY 25MHz ±20ppm ±20ppm 18pF -40°C ~ 85°C
FY2500117 Diodes晶振 FY 25MHz ±20ppm ±20ppm 18pF -40°C ~ 85°C
FY0800018 Diodes晶振 FY 8MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
FY0800018 Diodes晶振 FY 8MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
FY0800018 Diodes晶振 FY 8MHz ±30ppm ±30ppm 18pF -40°C ~ 85°C
FY1000009 Diodes晶振 FY 10MHz ±30ppm ±30ppm 20pF -40°C ~ 85°C
FY1000009 Diodes晶振 FY 10MHz ±30ppm ±30ppm 20pF -40°C ~ 85°C
FY1000009 Diodes晶振 FY 10MHz ±30ppm ±30ppm 20pF -40°C ~ 85°C
F90800018Q Diodes晶振 F9 8MHz ±50ppm ±50ppm 8pF -40°C ~ 125°C
F90800018Q Diodes晶振 F9 8MHz ±50ppm ±50ppm 8pF -40°C ~ 125°C
F90800018Q Diodes晶振 F9 8MHz ±50ppm ±50ppm 8pF -40°C ~ 125°C
FY2400053 Diodes晶振 FY 24MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
FY2400053 Diodes晶振 FY 24MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
FY2400053 Diodes晶振 FY 24MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
FY2500016 Diodes晶振 FY 25MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
FY2500016 Diodes晶振 FY 25MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
FY2500016 Diodes晶振 FY 25MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
F92400054 Diodes晶振 F9 24MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
F92400054 Diodes晶振 F9 24MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
F92400054 Diodes晶振 F9 24MHz ±30ppm ±30ppm 18pF -20°C ~ 70°C
F92500042 Diodes晶振 F9 25MHz ±50ppm ±20ppm 18pF -20°C ~ 70°C
F92500042 Diodes晶振 F9 25MHz ±50ppm ±20ppm 18pF -20°C ~ 70°C
F92500042 Diodes晶振 F9 25MHz ±50ppm ±20ppm 18pF -20°C ~ 70°C
FY2500068 Diodes晶振 FY 25MHz ±10ppm ±10ppm 10pF -10°C ~ 70°C
FY2500068 Diodes晶振 FY 25MHz ±10ppm ±10ppm 10pF -10°C ~ 70°C
FY2500068 Diodes晶振 FY 25MHz ±10ppm ±10ppm 10pF -10°C ~ 70°C
FY2500115 Diodes晶振 FY 25MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
FY2500115 Diodes晶振 FY 25MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
FY2500115 Diodes晶振 FY 25MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
F90800021 Diodes晶振 F9 8MHz ±30ppm ±20ppm 18pF -40°C ~ 85°C
F90800021 Diodes晶振 F9 8MHz ±30ppm ±20ppm 18pF -40°C ~ 85°C
F90800021 Diodes晶振 F9 8MHz ±30ppm ±20ppm 18pF -40°C ~ 85°C
F91200084 Diodes晶振 F9 12MHz ±30ppm ±20ppm 18pF -20°C ~ 70°C
F91200084 Diodes晶振 F9 12MHz ±30ppm ±20ppm 18pF -20°C ~ 70°C
F91200084 Diodes晶振 F9 12MHz ±30ppm ±20ppm 18pF -20°C ~ 70°C
FY1000020 Diodes晶振 FY 10MHz ±10ppm ±10ppm 10pF -20°C ~ 70°C
FY1000020 Diodes晶振 FY 10MHz ±10ppm ±10ppm 10pF -20°C ~ 70°C
FY1000020 Diodes晶振 FY 10MHz ±10ppm ±10ppm 10pF -20°C ~ 70°C
FY1200011 Diodes晶振 FY 12MHz ±30ppm ±20ppm 18pF -20°C ~ 70°C
FY1200011 Diodes晶振 FY 12MHz ±30ppm ±20ppm 18pF -20°C ~ 70°C
FY1200011 Diodes晶振 FY 12MHz ±30ppm ±20ppm 18pF -20°C ~ 70°C
FY0800027 Diodes晶振 FY 8MHz ±20ppm ±20ppm 18pF -20°C ~ 70°C
FY0800027 Diodes晶振 FY 8MHz ±20ppm ±20ppm 18pF -20°C ~ 70°C
FY0800027 Diodes晶振 FY 8MHz ±20ppm ±20ppm 18pF -20°C ~ 70°C
