首页进口晶振百利通亚陶晶振FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES

FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES

频率：40MHz
尺寸：2016
应　用： FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES，台湾百利通亚陶晶振，产品特点是，坚固的at切割晶体结构，微型2.0x1.6毫米陶瓷封装，可在胶带和卷轴；8毫米胶带，3000单位每卷，无铅和RoHS/绿色兼容，产品描述，...

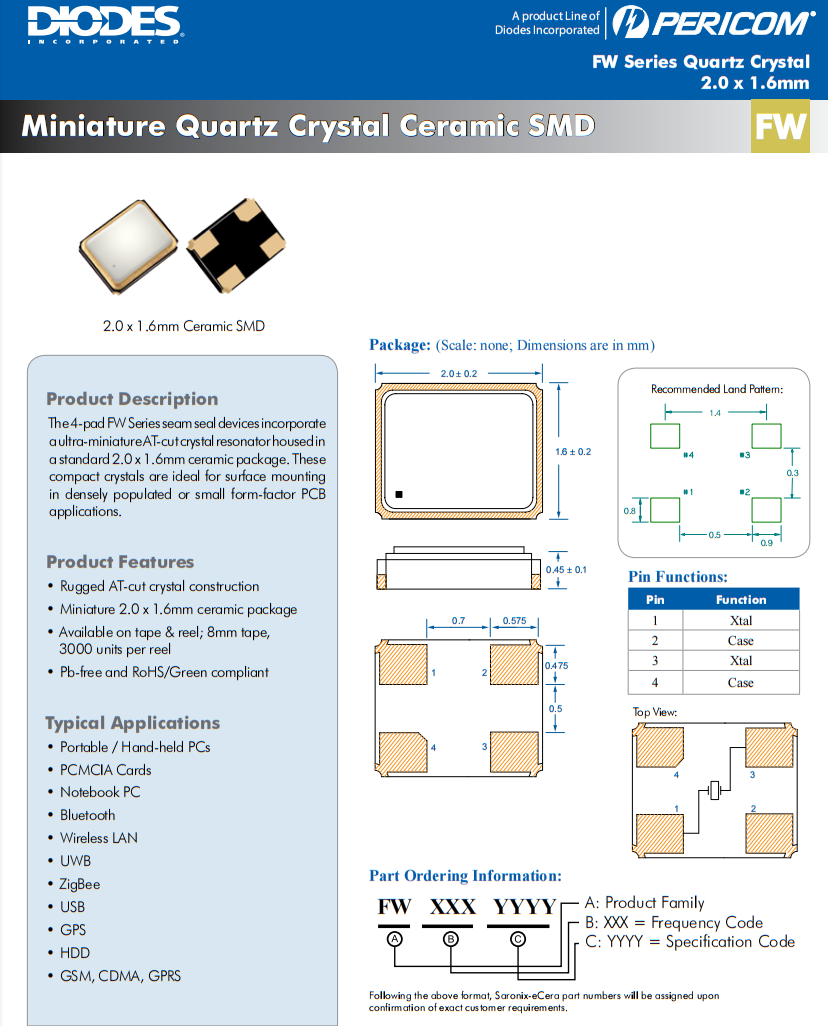

FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES，台湾百利通亚陶晶振，产品特点是，坚固的at切割晶体结构，微型2.0x1.6毫米陶瓷封装，可在胶带和卷轴；8毫米胶带，3000单位每卷，无铅和RoHS/绿色兼容，产品描述，4垫FW系列，接缝密封装置，包括一个超微型at切割晶体谐振器，封装在一个标准的2.0x1.6毫米陶瓷封装。这些紧凑的晶体，是理想的表面安装在密集的人口或小尺寸的PCB应用。典型应用，智能手机，便携式/手持式电脑，PCMCIA卡，笔记本，电脑，蓝牙，无线局域网，SIPRF-SIM笔，驱动器，SD模块。

FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES

型号	FW
频率范围	20.000~66.000MHZ
振动方式	Fundamental
电容	9pFtoSeries
精确度	15ppm,50ppm(At25)
电阻	100max.80max.50max.70max.
精度	20ppm,50ppm(Referto25)
工作温度	-20℃~+70℃,-30℃~+85℃
存储温度	-55℃~+125℃
分路电容	12.5pFmax.
包装	3000pcs/reel

FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES

Diodes零件编号	制造商	系列	频率	频率稳定性	频率容差	负载电容
FW520WFMT1	Diodes晶振	FW	52 MHz	±17ppm	±7ppm	12pF
FW2500025Z	Diodes晶振	FW	25 MHz	±30ppm	±30ppm	20pF
FW2400063Q	Diodes晶振	FW	24 MHz	±50ppm	±15ppm	18pF
FW4000044Q	Diodes晶振	FW	40 MHz	±50ppm	±10ppm	8pF
FW2500039Q	Diodes晶振	FW	25 MHz	±30ppm	±30ppm	18pF
FW4000025Q	Diodes晶振	FW	40 MHz	±50ppm	±10ppm	10pF
FW1600010	Diodes晶振	FW	16 MHz	±20ppm	±10ppm	8pF
FW4000015Q	Diodes晶振	FW	40 MHz	±15ppm	±10ppm	8pF
FW400WFMT1	Diodes晶振	FW	40 MHz	±17ppm	±7ppm	12pF
FW384WFIN1	Diodes晶振	FW	38.4 MHz	±12ppm	±10ppm	7pF
FW260WFMR1	Diodes晶振	FW	26 MHz	±10ppm	±10ppm	9pF
FW374WFBR2	Diodes晶振	FW	37.4 MHz	±10ppm	±10ppm	16pF
FW2700019Z	Diodes晶振	FW	27 MHz	±30ppm	±30ppm	20pF
FW4000001	Diodes晶振	FW	40 MHz	±15ppm	±10ppm	18pF
FW4800010Z	Diodes晶振	FW	48 MHz	±20ppm	±10ppm	10pF
FW2600055Q	Diodes晶振	FW	26 MHz	±30ppm	±10ppm	10pF
FW1920009Q	Diodes晶振	FW	19.2 MHz	±50ppm	±30ppm	10pF
FW1600029Q	Diodes晶振	FW	16 MHz	±60ppm	±10ppm	8pF
FW2000016Q	Diodes晶振	FW	20 MHz	±50ppm	±15ppm	10pF
FW6000006Q	Diodes晶振	FW	60 MHz	±20ppm	±20ppm	8pF
FW400WFQA1	Diodes晶振	FW	40 MHz	±10ppm	±10ppm	7pF
FW2400001	Diodes晶振	FW	24 MHz	±50ppm	±50ppm	20pF
FW3840001	Diodes晶振	FW	38.4 MHz	±10ppm	±10ppm	9pF
FW374WFBR1	Diodes晶振	FW	37.4 MHz	±10ppm	±10ppm	12pF
FW3740001Z	Diodes晶振	FW	37.4 MHz	±10ppm	±10ppm	18pF
FW400WFMR1	Diodes晶振	FW	40 MHz	±10ppm	±10ppm	10pF
FW2500022Q	Diodes晶振	FW	25 MHz	±25ppm	±15ppm	20pF
FW5000008Q	Diodes晶振	FW	50 MHz	±15ppm	±10ppm	10pF
FW374WFMR1	Diodes晶振	FW	37.4 MHz	±10ppm	±10ppm	8pF
FW260WFMT1	Diodes晶振	FW	26 MHz	±17ppm	±7ppm	12pF
FW2000008	Diodes晶振	FW	20 MHz	±10ppm	±10ppm	12pF
FW1600008	Diodes晶振	FW	16 MHz	±20ppm	±10ppm	12pF
FW1920007	Diodes晶振	FW	19.2 MHz	-	-	-
FW2500071	Diodes晶振	FW	25 MHz	±30ppm	±30ppm	16pF
FW2500072	Diodes晶振	FW	25 MHz	±50ppm	±15ppm	10pF
FW2600008	Diodes晶振	FW	26 MHz	±10ppm	±10ppm	8pF
FW2700008	Diodes晶振	FW	27 MHz	±20ppm	±10ppm	15pF
FW2710004	Diodes晶振	FW	27.12 MHz	±20ppm	±15ppm	8pF
FW3000023	Diodes晶振	FW	30 MHz	±40ppm	±30ppm	6pF
FW3200004	Diodes晶振	FW	32 MHz	±10ppm	±10ppm	8pF
FW3200022	Diodes晶振	FW	32 MHz	±10ppm	±10ppm	8pF
FW3200033	Diodes晶振	FW	32 MHz	±15ppm	±15ppm	8pF
FW3840015	Diodes晶振	FW	38.4 MHz	±15ppm	±10ppm	7pF
FW4090001	Diodes晶振	FW	40.96 MHz	±50ppm	±10ppm	6pF
FW2500051	Diodes晶振	FW	25 MHz	±20ppm	±20ppm	12pF
FW3740009	Diodes晶振	FW	37.4 MHz	±15ppm	±10ppm	11pF
FW1920001	Diodes晶振	FW	19.2 MHz	±20ppm	±10ppm	8pF
FW2600018	Diodes晶振	FW	26 MHz	±10ppm	±10ppm	9pF
FW3000010	Diodes晶振	FW	30 MHz	±30ppm	±30ppm	10pF
FW1600001	Diodes晶振	FW	16 MHz	±30ppm	±30ppm	8pF
FW1600006	Diodes晶振	FW	16 MHz	±50ppm	±50ppm	18pF
FW1600009	Diodes晶振	FW	16 MHz	±10ppm	±10ppm	9pF
FW1600015	Diodes晶振	FW	16 MHz	±20ppm	±10ppm	8pF
FW2000011	Diodes晶振	FW	20 MHz	±15ppm	±10ppm	10pF
FW2000012	Diodes晶振	FW	20 MHz	±20ppm	±10ppm	12pF
FW2400007	Diodes晶振	FW	24 MHz	±30ppm	±30ppm	15pF
FW2400011	Diodes晶振	FW	24 MHz	±10ppm	±10ppm	8pF
FW2400014	Diodes晶振	FW	24 MHz	±50ppm	±30ppm	20pF
FW2400015	Diodes晶振	FW	24 MHz	±15ppm	±15ppm	8pF
FW2400016	Diodes晶振	FW	24 MHz	±30ppm	±30ppm	18pF
FW2400022	Diodes晶振	FW	24 MHz	±40ppm	±30ppm	6pF
FW2400023	Diodes晶振	FW	24 MHz	±15ppm	±15ppm	10pF
FW2400030	Diodes晶振	FW	24 MHz	±50ppm	±50ppm	8pF
FW2400031	Diodes晶振	FW	24 MHz	±10ppm	±10ppm	12pF
FW2400033	Diodes晶振	FW	24 MHz	±15ppm	±20ppm	7pF
FW2400039	Diodes晶振	FW	24 MHz	±10ppm	±10ppm	15pF
FW2450002	Diodes晶振	FW	24.576 MHz	±30ppm	±30ppm	12pF
FW2500001	Diodes晶振	FW	25 MHz	±30ppm	±30ppm	18pF
FW2500003	Diodes晶振	FW	25 MHz	±15ppm	±15ppm	12pF
FW2500012	Diodes晶振	FW	25 MHz	±20ppm	±20ppm	18pF
FW2500016	Diodes晶振	FW	25 MHz	±40ppm	±30ppm	6pF
FW2500018	Diodes晶振	FW	25 MHz	±30ppm	±30ppm	10pF
FW2500019	Diodes晶振	FW	-	-	-	-
