首页欧美晶振拉隆晶振AS-13.560-20-SMD-TR|HC-49S贴片|6G室内路由器晶振

AS-13.560-20-SMD-TR|HC-49S贴片|6G室内路由器晶振

频率：13.56MHz
尺寸：12.0×4.8mm
应　用： 美国拉隆晶振,AS-SMD无源晶振,AS-13.560-20-SMD-TR晶振,石英晶体谐振器,进口贴片晶振,频率13.56MHz,负载20pF,频率稳定性30ppm,工作温度-10~70°C,耐高温晶振,低老化晶振,6G室内路由器晶振,蓝牙音响晶振,家用电视机顶盒...

AS-13.560-20-SMD-TR|HC-49S贴片|6G室内路由器晶振,美国拉隆晶振,AS-SMD无源晶振,AS-13.560-20-SMD-TR晶振,石英晶体谐振器,进口贴片晶振,频率13.56MHz,负载20pF,频率稳定性30ppm,工作温度-10~70°C,耐高温晶振,低老化晶振,6G室内路由器晶振,蓝牙音响晶振,家用电视机顶盒晶振,时钟钟表晶振.
AS-13.560-20-SMD-TR|HC-49S贴片|6G室内路由器晶振特点：
•卓越的时钟信号发生器，用于CPU
•可扩展温度范围
•低轮廓表面安装

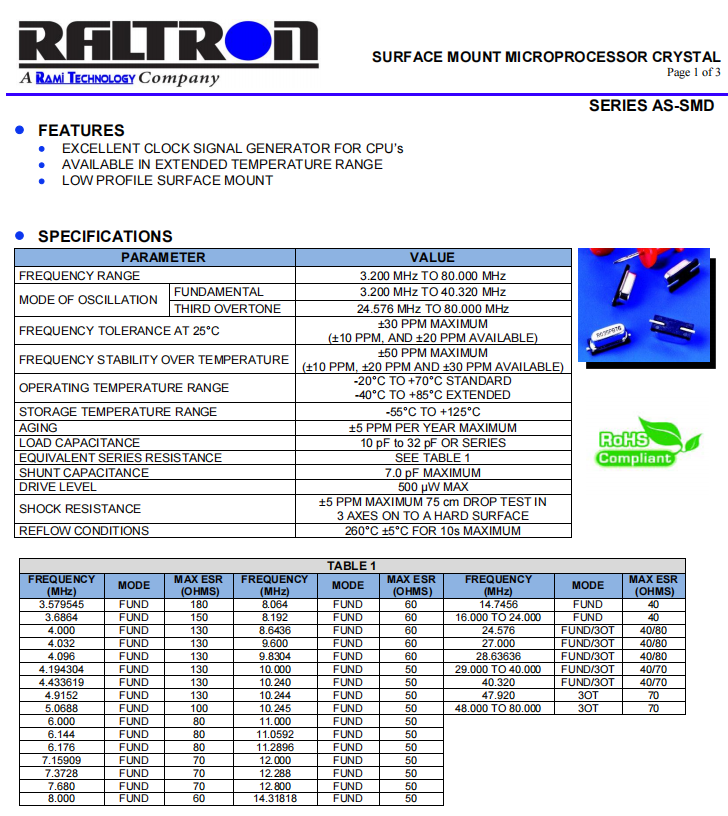

AS-13.560-20-SMD-TR|HC-49S贴片|6G室内路由器晶振规格表

参数	数值
标准频率	13.56MHz
频率容差	30ppm
频率稳定性	50ppm
工作温度	−10~+70°C
储存温度	−55~+125°C
老化	±5ppm
负载	20pF
并联电容	7pF Max
激励功率	500 µW MAX
抗震性	±5ppm Max 75 cm DROP TEST IN 3 AXES ON TO A HARD SURFACE
抗震性	±5ppm Max 75 cm DROP TEST IN 3 AXES ON TO A HARD SURFACE
回流焊条件	260°C ±5°C FOR 10s Max

AS-13.560-20-SMD-TR|HC-49S贴片|6G室内路由器晶振尺寸图

Raltron原厂编码	型号	频率	尺寸	频率偏差	频率稳定度	负载	工作温度
AS-4.000-18-SMD-TR	AS-SMD	4.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-4.9152-18-EXT-SMD-TR	AS-SMD	4.9152MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-5.000-18-EXT-SMD-TR	AS-SMD	5.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-6.000-12-2020-EXT-SMD-TR	AS-SMD	6.000MHz	13.50 x 4.80mm	± 20 ppm	± 20 ppm	12 pF	-40°C~+85°C
AS-7.3728-20-EXT-SMD-TR	AS-SMD	7.3728MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-40°C~+85°C
AS-7.3728-18-SMD-TR	AS-SMD	7.3728MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-8.000-20-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-8.000-18-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-8.000-30-3030-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	30 pF	-20°C~+70°C
AS-9.8304-18-SMD-TR	AS-SMD	9.8304MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-10.000-20-3030-SMD-TR	AS-SMD	10.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	20 pF	-20°C~+70°C
AS-11.0592-18-SMD-TR	AS-SMD	11.0592MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-12.000-18-SMD-TR	AS-SMD	12.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-13.560-20-SMD-TR	AS-SMD	13.560MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-10°C~+70°C
AS-14.31818-20-SMD-TR	AS-SMD	14.31818MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-14.7456-20-SMD-TR	AS-SMD	14.7456MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-14.7456-18-EXT-SMD-TR	AS-SMD	14.7456MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-16.000-18-SMD-TR	AS-SMD	16.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-16.000-20-SMD-TR	AS-SMD	16.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-18.432-20-SMD-TR	AS-SMD	18.432MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-18.432-18-SMD-TR	AS-SMD	18.432MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-19.6608-20-SMD-TR	AS-SMD	19.6608MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-10°C~+70°C
AS-20.000-16-SMD-TR	AS-SMD	20.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	16 pF	-20°C~+70°C
AS-20.000-20-SMD-TR	AS-SMD	20.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-24.000-18-SMD-TR	AS-SMD	24.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-24.576-18-F-SMD-TR	AS-SMD	24.576MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-25.000-18-F-SMD-TR	AS-SMD	25.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-26.000-20-F-SMD-TR	AS-SMD	26.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-27.000-20-F-3030-SMD-TR	AS-SMD	27.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	20 pF	-10°C~+60°C
AS-30.000-10-F-2020-EXT-SMD-TR	AS-SMD	30.000MHz	13.50 x 4.80mm	± 20 ppm	± 20 ppm	10 pF	-40°C~+85°C
AS-30.000-10-F-2020-EXT-SMD-TR	AS-SMD	32.000MHz	13.50 x 4.80mm	± 10 ppm	± 20 ppm	10 pF	-20°C~+70°C
AS-40.000-18-F-EXT-SMD-TR	AS-SMD	40.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
