首页进口晶振Renesas瑞萨晶振瑞萨差分晶振,XUL735125.000000X,6G通信设备晶振

瑞萨差分晶振,XUL735125.000000X,6G通信设备晶振

  • 频率:125MHz
  • 尺寸:7.0×5.0mm
  • 应 用: 瑞萨差分晶振,XU进口有源晶振,XUL735125.000000X晶振,LVDS晶振,7050mm晶振,石英贴片晶振,频率125MHz,电压3.3V,频率稳定性50ppm,工作温度-20~70°C,低抖动晶振,耐高温晶振,6G通信设备晶振,智能家居晶振,全球定位系统晶...
  • RoHS RoHS2

瑞萨差分晶振,XUL735125.000000X,6G通信设备晶振,瑞萨差分晶振,XU进口有源晶振,XUL735125.000000X晶振,LVDS晶振,7050mm晶振
,石英贴片晶振,频率125MHz,电压3.3V,频率稳定性50ppm,工作温度-20~70°C,低抖动晶振,耐高温晶振,6G通信设备晶振,智能家居晶振,全球定位系统晶振,无线网络晶振.
瑞萨差分晶振,XUL735125.000000X,6G通信设备晶振特点:
•频率范围:0.016MHz至1500MHz[1]
输出类型:LVDS, LVPECL, HCSL, LVCMOS
供电电压选项:1.8V, 2.5V,或3.3V
相位抖动(1.875MHz至20MHz): 100fs典型
相位抖动(12kHz至20MHz): 300fs典型
包装选项:
•5.0 × 3.2 × 1.2毫米
•7.0 × 5.0 × 1.3 mm
工作温度:-20℃~ +70℃
•频率稳定性选项:±20,±25,±50,或±100 ppm
工作温度:-40°C至+85°C
•频率稳定性选项:±25,±50,或±100 ppm
工作温度:-40°C至+105°C
•频率稳定性选项:±50或±100 ppm


瑞萨差分晶振,XUL735125.000000X,6G通信设备晶振规格表

项目 符号 规格说明 条件
额定频率 f_nom 125MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V±0.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -20℃~ +70℃
频率公差(标准) f_tol ±50ppm  +25℃,超出标准的规格说明请联系我们以便获取相关信息
供电电流 IDD 97mA Max   LVDS
差分输出电压 VOD 0.5V Max VDD = 3.3V ±5%.
对称性 SYM 45%~55%

输出负载   100Ω  LVDS Differential.
输入电压 VIH 70%VDD Min  LVDS
VIL 30%VDD Max
上升下降时间 tr/tf 380ps Max  LVDS  20% to 80% Vpk-pk.
起始时间 t str 10ms Max VDD达到最小指定水平后输出有效时间
相位抖动 tpj 400 fs Typ 12KHZ~20MHz
老化 f_aging ±1ppm/year  +25℃,第一年

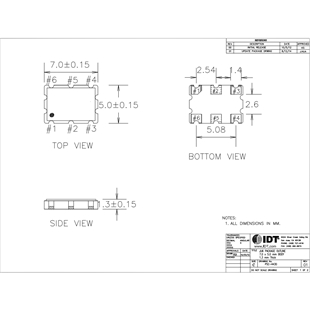

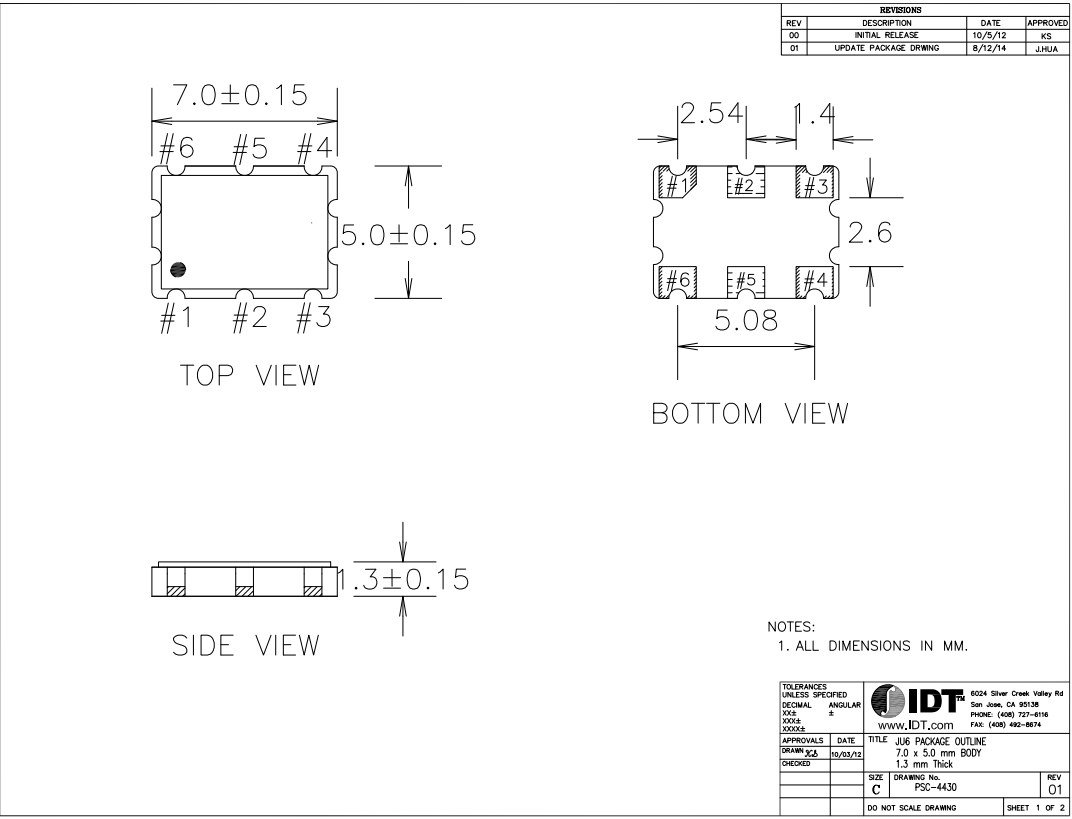

瑞萨差分晶振,XUL735125.000000X,6G通信设备晶振尺寸图



原厂编码 品牌 型号 频率 输出 电压
XUL535100.000000I Renesas Electronics America Inc XU 100 MHz LVDS 3.3V
XUL516100.000000I Renesas Electronics America Inc XU 100 MHz LVDS 1.8V
XUN535100.000000I Renesas Electronics America Inc XU 100 MHz HCSL 3.3V
XUL536100.000000I Renesas Electronics America Inc XU 100 MHz LVDS 3.3V
XUL536125.000000I Renesas Electronics America Inc XU 125 MHz LVDS 3.3V
XUL736100.000000I Renesas Electronics America Inc XU 100 MHz LVDS 3.3V
XUL536156.250000I Renesas Electronics America Inc XU 156.25 MHz LVDS 3.3V
XUL736150.000000I Renesas Electronics America Inc XU 150 MHz LVDS 3.3V
XUH518027.120000X Renesas Electronics America Inc XU 27.12 MHz HCMOS 1.8V
XUH538024.576000X Renesas Electronics America Inc XU 24.576 MHz HCMOS 3.3V
XUH738016.125000X Renesas Electronics America Inc XU 16.125 MHz HCMOS 3.3V
XUH738044.736000X Renesas Electronics America Inc XU 44.736 MHz HCMOS 3.3V
XUH518033.333333X Renesas Electronics America Inc XU 33.333333 MHz HCMOS 1.8V
XUH738025.000000X Renesas Electronics America Inc XU 25 MHz HCMOS 3.3V
XUH738072.000000X Renesas Electronics America Inc XU 72 MHz HCMOS 3.3V
XUH738022.579200X Renesas Electronics America Inc XU 22.5792 MHz HCMOS 3.3V
XUH538027.000000X Renesas Electronics America Inc XU 27 MHz HCMOS 3.3V
XUH538022.579200X Renesas Electronics America Inc XU 22.5792 MHz HCMOS 3.3V
XUH728025.000000X Renesas Electronics America Inc XU 25 MHz HCMOS 2.5V
XUH728020.000000X Renesas Electronics America Inc XU 20 MHz HCMOS 2.5V
XUH538013.000000X Renesas Electronics America Inc XU 13 MHz HCMOS 3.3V
XUH728016.125000X Renesas Electronics America Inc XU 16.125 MHz HCMOS 2.5V
XUH538067.108864X Renesas Electronics America Inc XU 67.108864 MHz HCMOS 3.3V
XUH538125.000000X Renesas Electronics America Inc XU 125 MHz HCMOS 3.3V
XUH535004.000000X Renesas Electronics America Inc XU 4 MHz LVCMOS 3.3V
XUH735033.333000X Renesas Electronics America Inc XU 33.333 MHz LVCMOS 3.3V
XUH730060.000000X Renesas Electronics America Inc XU 60 MHz LVCMOS 3.3V
XUH730080.000000I Renesas Electronics America Inc XU 80 MHz LVCMOS 3.3V
XUH736030.720000X Renesas Electronics America Inc XU 30.72 MHz LVCMOS 3.3V
XUH515045.125000I Renesas Electronics America Inc XU 45.125 MHz LVCMOS 1.8V
XUH525125.000000I Renesas Electronics America Inc XU 125 MHz LVCMOS 2.5V
XUH715066.600000I Renesas Electronics America Inc XU 66.6 MHz LVCMOS 1.8V
XUH715040.000000X Renesas Electronics America Inc XU 40 MHz LVCMOS 1.8V
XUH736033.000000I Renesas Electronics America Inc XU 33 MHz LVCMOS 3.3V
XUH716050.000000I Renesas Electronics America Inc XU 50 MHz LVCMOS 1.8V
XUH516033.333300I Renesas Electronics America Inc XU 33.3333 MHz LVCMOS 1.8V
XUH536090.000000I Renesas Electronics America Inc XU 90 MHz LVCMOS 3.3V
XUX735080.000000X Renesas Electronics America Inc XU 80 MHz HCMOS 3.3V
XUH536005.000000I8 Renesas Electronics America Inc XU 5 MHz LVCMOS 3.3V
XUJ730080.000000X Renesas Electronics America Inc XU 80 MHz LVCMOS 3.3V
XUL530039.000000X Renesas Electronics America Inc XU 39 MHz LVDS 3.3V
XUH516012.000000I Renesas Electronics America Inc XU 12 MHz LVCMOS 1.8V
XUH515100.000000K Renesas Electronics America Inc XU 100 MHz LVCMOS 1.8V
XUH715024.000000K Renesas Electronics America Inc XU 24 MHz LVCMOS 1.8V
XUH535008.000000K Renesas Electronics America Inc XU 8 MHz LVCMOS 3.3V
XUH535025.000000K Renesas Electronics America Inc XU 25 MHz LVCMOS 3.3V
XUL515644.530000I Renesas Electronics America Inc XU 644.53 MHz LVDS 1.8V
XUL526644.530000I Renesas Electronics America Inc XU 644.53 MHz LVDS 2.5V
XUH738020.000000X Renesas Electronics America Inc XU 20 MHz HCMOS 3.3V
XUH538010.000000X Renesas Electronics America Inc XU 10 MHz HCMOS 3.3V
XUH538020.000000X Renesas Electronics America Inc XU 20 MHz HCMOS 3.3V
XUH538040.000000X Renesas Electronics America Inc XU 40 MHz HCMOS 3.3V
XUH535003.686000I Renesas Electronics America Inc XU 3.686 MHz LVCMOS 3.3V
XUH510100.000000X Renesas Electronics America Inc XU 100 MHz HCMOS 1.8V
XUH535000.127700K Renesas Electronics America Inc XU 127.7 kHz HCMOS 3.3V
XUH535000.050000X Renesas Electronics America Inc XU 50 kHz HCMOS 3.3V
XUH515020.000000K Renesas Electronics America Inc XU 20 MHz HCMOS 1.8V
XUH535025.000000X Renesas Electronics America Inc XU 25 MHz HCMOS 3.3V
XUH735027.115000X Renesas Electronics America Inc XU 27.115 MHz HCMOS 3.3V
XUH535100.000000X Renesas Electronics America Inc XU 100 MHz HCMOS 3.3V
XUH735027.000000X Renesas Electronics America Inc XU 27 MHz HCMOS 3.3V
XUH535000.192000X Renesas Electronics America Inc XU 192 kHz HCMOS 3.3V
XUH735048.000000X Renesas Electronics America Inc XU 48 MHz HCMOS 3.3V
XUH735050.000000X Renesas Electronics America Inc XU 50 MHz HCMOS 3.3V
XUH730049.700000X Renesas Electronics America Inc XU 49.7 MHz HCMOS 3.3V
XUL535644.531250I Renesas Electronics America Inc XU 644.53125 MHz LVDS 3.3V
XUH535017.177600X Renesas Electronics America Inc XU 17.1776 MHz HCMOS 3.3V
XUH535048.000000X Renesas Electronics America Inc XU 48 MHz HCMOS 3.3V
XUH730004.800000X Renesas Electronics America Inc XU 4.8 MHz HCMOS 3.3V
XUH510133.333000X Renesas Electronics America Inc XU 133.333 MHz HCMOS 1.8V
XUH535000.042000X Renesas Electronics America Inc XU 42 kHz HCMOS 3.3V
XUH535024.000000X Renesas Electronics America Inc XU 24 MHz HCMOS 3.3V
XUH535012.000000X Renesas Electronics America Inc XU 12 MHz HCMOS 3.3V
XUH525010.000000X Renesas Electronics America Inc XU 10 MHz HCMOS 2.5V
XUH535000.044000X Renesas Electronics America Inc XU 44 kHz HCMOS 3.3V
XUH535000.096000X Renesas Electronics America Inc XU 96 kHz HCMOS 3.3V
XUH525024.000000X Renesas Electronics America Inc XU 24 MHz HCMOS 2.5V
XUH530000.460800X Renesas Electronics America Inc XU 460.8 kHz HCMOS 3.3V
XUH715125.000000X Renesas Electronics America Inc XU 125 MHz LVCMOS 1.8V
XUH530000.032768X Renesas Electronics America Inc XU 32.768 kHz LVCMOS 3.3V
XUJ715033.000000I Renesas Electronics America Inc XU 33 MHz LVCMOS 1.8V
XUX730080.000000I Renesas Electronics America Inc XU 80 MHz HCMOS 3.3V
XUJ735100.000000I Renesas Electronics America Inc XU 100 MHz LVCMOS 3.3V
XUH518090.000000X Renesas Electronics America Inc XU 90 MHz LVCMOS 1.8V
XUL735100.016000I Renesas Electronics America Inc XU 100.016 MHz LVDS 3.3V
XUL535075.000000I Renesas Electronics America Inc XU 75 MHz LVDS 3.3V
XUH518033.000000X Renesas Electronics America Inc XU 33 MHz LVCMOS 1.8V
XUL715033.330000I Renesas Electronics America Inc XU 33.33 MHz LVDS 1.8V
XUH518124.000000X Renesas Electronics America Inc XU 124 MHz LVCMOS 1.8V
XUP736050.000000X Renesas Electronics America Inc XU 50 MHz LVPECL 3.3V
XUH716066.666000I Renesas Electronics America Inc XU 66.666 MHz HCMOS 1.8V
XUN535100.000000X Renesas Electronics America Inc XU 100 MHz HCSL 3.3V
XUH516125.000000I Renesas Electronics America Inc XU 125 MHz HCMOS 1.8V
XUM520125.000000X Renesas Electronics America Inc XU 125 MHz LVDS 2.5V
XUP535024.576000X Renesas Electronics America Inc XU 24.576 MHz LVPECL 3.3V
XUH526024.000000I Renesas Electronics America Inc XU 24 MHz HCMOS 2.5V
XUP735114.866667X Renesas Electronics America Inc XU 114.866667 MHz LVPECL 3.3V
XUL730100.000000X Renesas Electronics America Inc XU 100 MHz LVDS 3.3V
XUP735025.000000X Renesas Electronics America Inc XU 25 MHz LVPECL 3.3V
XUP535100.000000X Renesas Electronics America Inc XU 100 MHz LVPECL 3.3V
XUH715133.333333I Renesas Electronics America Inc XU 133.333333 MHz HCMOS 1.8V
XUL525100.000000X Renesas Electronics America Inc XU 100 MHz LVDS 2.5V
XUH526016.384000I Renesas Electronics America Inc XU 16.384 MHz HCMOS 2.5V
XUL735125.000000X Renesas Electronics America Inc XU 125 MHz LVDS 3.3V
XUP735125.000000X Renesas Electronics America Inc XU 125 MHz LVPECL 3.3V
XUH536100.000000I Renesas Electronics America Inc XU 100 MHz HCMOS 3.3V
XUP535075.000000X Renesas Electronics America Inc XU 75 MHz LVPECL 3.3V
XUO535027.000000X Renesas Electronics America Inc XU 27 MHz HCSL 3.3V
XUH516033.333333I Renesas Electronics America Inc XU 33.333333 MHz HCMOS 1.8V
XUH516024.000000I Renesas Electronics America Inc XU 24 MHz LVCMOS 1.8V
XUH516026.000000I Renesas Electronics America Inc XU 26 MHz LVCMOS 1.8V
XUH716019.440000I Renesas Electronics America Inc XU 19.44 MHz LVCMOS 1.8V
XUH516031.250000I Renesas Electronics America Inc XU 31.25 MHz LVCMOS 1.8V
XUH535133.300000I Renesas Electronics America Inc XU 133.3 MHz LVCMOS 3.3V
XUH516000.032768I Renesas Electronics America Inc XU 32.768 kHz LVCMOS 1.8V
XUL535156.250000I Renesas Electronics America Inc XU 156.25 MHz LVDS 3.3V
XUH735054.000000K Renesas Electronics America Inc XU 54 MHz LVCMOS 3.3V
XUH515033.000000K Renesas Electronics America Inc XU 33 MHz LVCMOS 1.8V
XUH510025.000000K Renesas Electronics America Inc XU 25 MHz LVCMOS 1.8V
XUQ736341.796875I Renesas Electronics America Inc XU 341.796875 MHz LVPECL 3.3V
XUQ736328.125000I Renesas Electronics America Inc XU 328.125 MHz LVPECL 3.3V
XUH736100.000000I Renesas Electronics America Inc XU 100 MHz HCMOS 3.3V
XUM736400.000000I Renesas Electronics America Inc XU 400 MHz LVDS 3.3V
XUL736380.000000I Renesas Electronics America Inc XU 380 MHz LVDS 3.3V
XUL538750.000000X Renesas Electronics America Inc XU 750 MHz LVDS 3.3V
XUL735208.125000K Renesas Electronics America Inc XU 208.125 MHz LVDS 3.3V
XUH738050.000000X Renesas Electronics America Inc XU 50 MHz LVCMOS 3.3V
XUL736019.440000X Renesas Electronics America Inc XU 19.44 MHz LVDS 3.3V
XUL730004.000000I Renesas Electronics America Inc XU 4 MHz LVDS 3.3V
XUL510125.000000I Renesas Electronics America Inc XU 125 MHz LVDS 1.8V
XUQ735125.000000I Renesas Electronics America Inc XU 125 MHz LVPECL 3.3V
XUJ720010.000000I Renesas Electronics America Inc XU 10 MHz LVCMOS 2.5V
XUJ726110.000000X Renesas Electronics America Inc XU 110 MHz LVCMOS 2.5V
XUP735133.330000X Renesas Electronics America Inc XU 133.33 MHz LVPECL 3.3V
XUL725050.000000I Renesas Electronics America Inc XU 50 MHz LVDS 2.5V
XUH538033.000000X Renesas Electronics America Inc XU 33 MHz LVCMOS 3.3V
XUH738045.158400X Renesas Electronics America Inc XU 45.1584 MHz LVCMOS 3.3V
XUH518001.843200X Renesas Electronics America Inc XU 1.8432 MHz LVCMOS 1.8V
XUX515024.000000I Renesas Electronics America Inc XU 24 MHz HCMOS, LVCMOS 1.8V
XUL538098.304000X Renesas Electronics America Inc XU 98.304 MHz LVDS 3.3V
XUH518031.250000X Renesas Electronics America Inc XU 31.25 MHz LVCMOS 1.8V
XUH536025.000000I Renesas Electronics America Inc XU 25 MHz HCMOS 3.3V
XUH536033.333330I Renesas Electronics America Inc XU 33.33333 MHz HCMOS 3.3V
XUH735140.000000I Renesas Electronics America Inc XU 140 MHz HCMOS 3.3V
XUH536030.000000I Renesas Electronics America Inc XU 30 MHz HCMOS 3.3V
XUH536025.001250I Renesas Electronics America Inc XU 25.00125 MHz HCMOS 3.3V
XUH735148.500000I Renesas Electronics America Inc XU 148.5 MHz HCMOS 3.3V
XUH516100.000000I Renesas Electronics America Inc XU 100 MHz HCMOS 1.8V
XUH536025.600000I Renesas Electronics America Inc XU 25.6 MHz HCMOS 3.3V
XUH526000.828000I Renesas Electronics America Inc XU 828 kHz HCMOS 2.5V
XUH736025.000000I Renesas Electronics America Inc XU 25 MHz HCMOS 3.3V
XUH536033.333300I Renesas Electronics America Inc XU 33.3333 MHz HCMOS 3.3V
XUH736125.000000I Renesas Electronics America Inc XU 125 MHz HCMOS 3.3V
XUH516030.000000I Renesas Electronics America Inc XU 30 MHz HCMOS 1.8V
XUH536125.000000I Renesas Electronics America Inc XU 125 MHz HCMOS 3.3V
XUH536050.000000I Renesas Electronics America Inc XU 50 MHz HCMOS 3.3V
XUH715133.330000I Renesas Electronics America Inc XU 133.33 MHz HCMOS 1.8V
XUH716125.000000I Renesas Electronics America Inc XU 125 MHz HCMOS 1.8V
XUH536000.032768I Renesas Electronics America Inc XU 32.768 kHz HCMOS 3.3V
XUH536000.050000I Renesas Electronics America Inc XU 50 kHz HCMOS 3.3V
XUH536010.000000I Renesas Electronics America Inc XU 10 MHz HCMOS 3.3V
XUH515160.000000I Renesas Electronics America Inc XU 160 MHz HCMOS 1.8V
XUH535156.250000I Renesas Electronics America Inc XU 156.25 MHz HCMOS 3.3V
XUH516026.214400I Renesas Electronics America Inc XU 26.2144 MHz HCMOS 1.8V
公司:深圳市亿金电子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话:0755-27876565
手机:18924600166
QQ:857950243
邮箱:yijindz@163.com
网站:http://www.yijindz.com
地址:广东省深圳市宝安区新安107国道旁

相关产品

诚征下列地区 晶振 | 石英晶振 | 圆柱晶振 | 贴片晶振 | 陶瓷晶振 | 石英晶体谐振器 | 频率元件 的合作伙伴:
深圳市 广州市 北京 上海 东莞 佛山 中山 顺德 珠海 杭州 温州 武汉 长沙 南京 大连 长春 西安 郑州 澳门 沈阳 南宁 昆明 济南 重庆 成都
kf
kf
close
kf 亿金微信号
