SUNTSU|SXT11410BA17-27.120M|1612|27.12MHz|10PF|30PPM
- 频率：27.12MHz
- 尺寸：1612mm
- 应 用： SUNTSTU|SXT11410BA17-27.120M|1612|27.12MHz|10PF|30PPM，石英贴片晶振，10ppm/10ppm（公差/稳定性），可用的超微型包装切割，基本磁带和卷轴，蓝牙，无线局域网，高密度应用程序。SUNTSTU|SXT11410BA17-27.120M|161...
-
-
.jpg)
SUNTSTU|SXT11410BA17-27.120M|1612|27.12MHz|10PF|30PPM，石英贴片晶振，±10ppm/±10ppm（公差/稳定性），可用的超微型包装切割，基本磁带和卷轴，蓝牙，无线局域网，高密度应用程序。

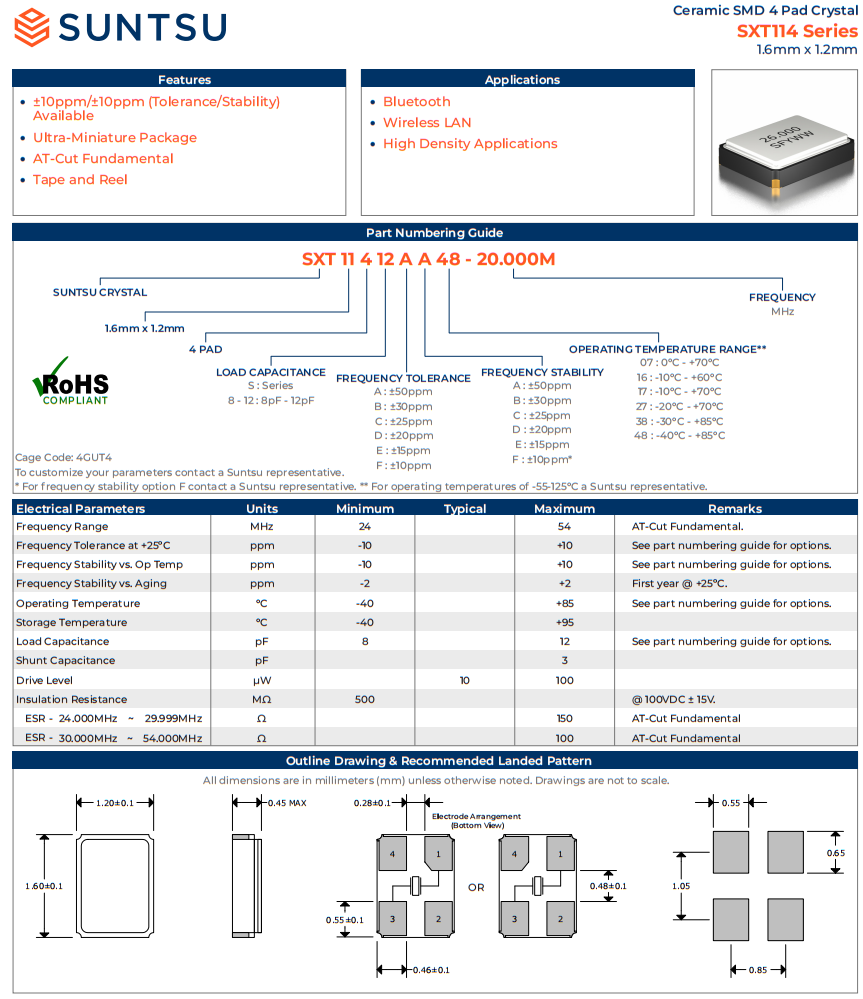

SUNTSTU|SXT11410BA17-27.120M|1612|27.12MHz|10PF|30PPM
| 电气参数 | 单位 | 最小值 | 典型的 | 最大值 | 注意 | |||
| 频率范围 | MHz | 24 | 54 | AT-Cut Fundamental. | ||||
| 频率公差 at +25ºC | ppm | --10 | +10 | See part numbering guide for options. | ||||
| 工作温度下的频率稳定度 | ppm | --10 | +10 | See part numbering guide for options. | ||||
| 老化 | ppm | --2 | +2 | First year @ +25ºC. | ||||
| 工作温度 | °C | --40 | +85 | See part numbering guide for options. | ||||
| 储存温度 | °C | --40 | +95 | |||||
| 负载电容 | pF | 8 | 12 | See part numbering guide for options. | ||||
| 并联电容 | pF | 3 | ||||||
| 驱动电平 | µW | 10 | 100 | |||||
| 绝缘电阻 | M? | 500 | @ 100VDC ± 15V. | |||||
| ESR - 24.000MHz ~ 29.999MHz | ? | 150 | AT-Cut Fundamental | |||||
| ESR - 30.000MHz ~ 54.000MHz | ? | 100 | AT-Cut Fundamental | |||||
.jpg)

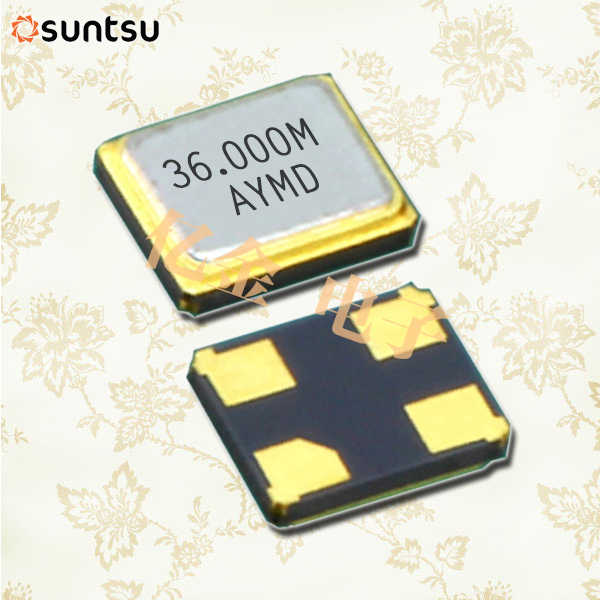

SUNTSTU|SXT11410BA17-27.120M|1612|27.12MHz|10PF|30PPM
| SUNTSU原厂编码 | 封装尺寸 | 负载电荷 | 频率偏差度 | 频率 |
| SXT11410AA07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT11410AA07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT11410AA07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT11410AA07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT11410AA07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT11410AA07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT11410AA07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT11410AA07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT11410AA07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT11410AA16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT11410AA16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT11410AA16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT11410AA16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT11410AA16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT11410AA16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT11410AA16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT11410AA16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT11410AA16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT11410AA17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT11410AA17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT11410AA17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT11410AA17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT11410AA17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT11410AA17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT11410AA17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT11410AA17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT11410AA17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT11410AA27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT11410AA27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT11410AA27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT11410AA27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT11410AA27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT11410AA27-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT11410AA27-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT11410AA27-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT11410AA27-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT11410AA38-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT11410AA38-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT11410AA38-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT11410AA38-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT11410AA38-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT11410AA38-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT11410AA38-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT11410AA38-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT11410AA38-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT11410AA48-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT11410AA48-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT11410AA48-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT11410AA48-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT11410AA48-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT11410AA48-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT11410AA48-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT11410AA48-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT11410AA48-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT11410BA07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 24.000M |
| SXT11410BA07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 25.000M |
| SXT11410BA07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 26.000M |
| SXT11410BA07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.000M |
| SXT11410BA07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.120M |
| SXT11410BA07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 30.000M |
| SXT11410BA07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 32.000M |
| SXT11410BA07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 38.400M |
| SXT11410BA07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 40.000M |
| SXT11410BA16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 24.000M |
| SXT11410BA16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 25.000M |
| SXT11410BA16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 26.000M |
| SXT11410BA16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.000M |
| SXT11410BA16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.120M |
| SXT11410BA16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 30.000M |
| SXT11410BA16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 32.000M |
| SXT11410BA16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 38.400M |
| SXT11410BA16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 40.000M |
| SXT11410BA17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 24.000M |
| SXT11410BA17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 25.000M |
| SXT11410BA17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 26.000M |
| SXT11410BA17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.000M |
| SXT11410BA17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.120M |
| SXT11410BA17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 30.000M |
| SXT11410BA17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 32.000M |
| SXT11410BA17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 38.400M |
| SXT11410BA17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 40.000M |
| SXT11410BA27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 24.000M |
| SXT11410BA27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 25.000M |
| SXT11410BA27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 26.000M |
| SXT11410BA27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.000M |
| SXT11410BA27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 27.120M |
| SXT11410BA27-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 30.000M |
| SXT11410BA27-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 32.000M |
| SXT11410BA27-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 38.400M |
| SXT11410BA27-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 40.000M |
| SXT11410BA38-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 24.000M |
| SXT11410BA38-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 25.000M |
| SXT11410BA38-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | 26.000M |
