首页欧美晶振 SKYWORKS晶振500DCAE25M0000ACFR,Si500D,Skyworks光纤通信晶振

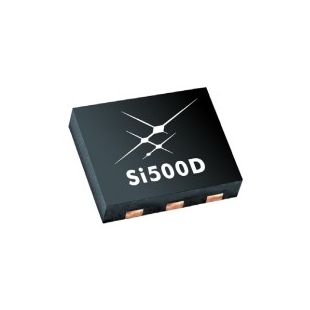

500DCAE25M0000ACFR,Si500D,Skyworks光纤通信晶振

频率：25MHz
尺寸：4.0x3.2mm
应　用： 500DCAE25M0000ACFR,Si500D,Skyworks光纤通信晶振,LVDS输出差分振荡器，Skyworks晶振，思佳讯晶振，美国进口晶振，型号：Si500D，编码为：500DCAE25M0000ACFR，频率为：25MHz，电压3.3V，频率稳定性：100ppm，小体积晶...

500DCAE25M0000ACFR,Si500D,Skyworks光纤通信晶振,LVDS输出差分振荡器，Skyworks晶振，思佳讯晶振，美国进口晶振，型号：Si500D，编码为：500DCAE25M0000ACFR，频率为：25 MHz，电压3.3V，频率稳定性：±100ppm，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，石英晶振，有源晶振，LVDS输出差分振荡器，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，优异的温度稳定性（±20 ppm），高度可靠的启动和运行，高度抗冲击和振动，低抖动：＜1.5 ps rms，差分晶振，被广泛用于：通讯设备，无线网络，蓝牙模块，物联网，GPS定位，汽车电子，医疗设备，数码电子等应用。

500DCAE25M0000ACFR,Si500D,Skyworks光纤通信晶振,LVDS输出差分振荡器,规格表

Parameters	Condition	Min	Typ	Max	Units
Frequency Range			25		MHz
Frequency Stability	Temperature stability, 0 to +70 °C	—	±10	—	ppm
	Temperature stability, 0 to +85 °C	—	±20	—	ppm
	Total stability, 0 to +70 °C operation1	—	—	±150	ppm
	Total stability, 0 to +85 °C operation2	—	—	±250	ppm
Operating Temperature	Commercial	0	—	70	°C
Operating Temperature	Extended commercial	0	—	85	°C
Storage Temperature		–55	—	+125	°C
Supply Voltage	1.8 V option	1.71		1.98	V
	2.5 V option	2.25	—	2.75	V
	3.3 V option	2.97	—	3.63	V

500DCAE25M0000ACFR,Si500D,Skyworks光纤通信晶振,LVDS输出差分振荡器,尺寸图

编码	品牌	系列	频率	输出
500DLAA200M000ACF	Skyworks晶振	Si500D	200 MHz	LVDS
500DTBE200M000ACH	Skyworks晶振	Si500D	200 MHz	HCSL
500DCAE25M0000ACFR	Skyworks晶振	Si500D	25 MHz	LVDS
500DCAA40M0790ACF	Skyworks晶振	Si500D	40.079 MHz	LVDS
500DCAE25M0000ACF	Skyworks晶振	Si500D	25 MHz	LVDS
500DCAB120M000ACF	Skyworks晶振	Si500D	120 MHz	LVDS
500DEAA11M2896ACF	Skyworks晶振	Si500D	11.2896 MHz	CMOS
500DEAA18M4320ACFR	Skyworks晶振	Si500D	18.432 MHz	CMOS
500DEAA11M2896ACFR	Skyworks晶振	Si500D	11.2896 MHz	CMOS
500DCAA40M0790ACFR	有源晶振	Si500D	40.079 MHz	LVDS
500DCAE40M0790ACF	Skyworks晶振	Si500D	40.079 MHz	LVDS
500DCAB120M000ACFR	Skyworks晶振	Si500D	120 MHz	LVDS
500DABB156M250ACHR	Skyworks晶振	Si500D	156.25 MHz	LVPECL
500DCAB70M0000ACFR	Skyworks晶振	Si500D	70 MHz	LVDS
500DEAA18M4320ACF	Skyworks晶振	Si500D	18.432 MHz	CMOS
500DCAE40M0790ACFR	Skyworks晶振	Si500D	40.079 MHz	LVDS
500DCAB70M0000ACF	Skyworks晶振	Si500D	70 MHz	LVDS
500DABB156M250ACH	Skyworks晶振	Si500D	156.25 MHz	LVPECL
500DTBE200M000ACHR	Skyworks晶振	Si500D	200 MHz	HCSL
500DMAD135M000ACFR	Skyworks晶振	Si500D	135 MHz	HCSL
500DLAA61M4400ACF	Skyworks晶振	Si500D	61.44 MHz	LVDS
500DLAA61M4400ACFR	Skyworks晶振	Si500D	61.44 MHz	LVDS
500DMAD135M000ACF	Skyworks晶振	Si500D	135 MHz	HCSL
500DSBB25M0000ACH	Skyworks晶振	Si500D	25 MHz	LVDS
500DABA62M5000ACH	Skyworks晶振	Si500D	62.5 MHz	LVPECL
500DABE10M0000ACH	Skyworks晶振	Si500D	10 MHz	LVPECL
500DBBA62M5000ACH	Skyworks晶振	Si500D	62.5 MHz	LVPECL
500DCBE135M000ACH	Skyworks晶振	Si500D	135 MHz	LVDS
500DEAA72M0000ACF	Skyworks晶振	Si500D	72 MHz	CMOS
500DLBB65M0000ACH	Skyworks晶振	Si500D	65 MHz	LVDS
