首页进口晶振泰艺晶振XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

频率：24.576MHz

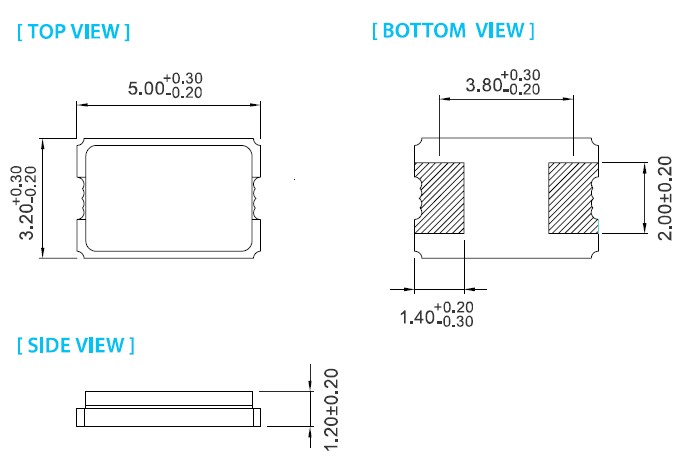

尺寸：5032mm
应　用： XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF，台产泰艺晶振，典型的5.0x3.2x1.2mm全陶瓷SMD包装。12mm宽的胶带和卷轴线圈包装，用于自动组装。汽车，笔记本电脑，电脑外设，硬盘-MP3播放器，视听设备XSCGGCNA...

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF，台产泰艺晶振，典型的5.0x3.2x1.2mm全陶瓷SMD包装。12 mm宽的胶带和卷轴线圈包装，用于自动组装。汽车，笔记本电脑，电脑外设，硬盘-MP3播放器，视听设备

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

参数	最小值	典型的	最大值	单位
储存温度	--55	-	125	℃
驱动电平	-	10	300	µw
并联电容	-	-	7.0	pF
绝缘电阻	500 M?@ DC100V	-	-
老化	±3			ppm / year

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

TAITIEN原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容
XSCEECNANF-8.000000	TAITIEN晶振	XS	8MHz	±30ppm	±30ppm	10pF
XSCEGCNANF-10.000000	TAITIEN晶振	XS	10MHz	±50ppm	±30ppm	10pF
XSCGGCNANF-24.576000	TAITIEN晶振	XS	24.576MHz	±50ppm	±50ppm	10pF
XSDEECNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	12pF
XSDEELNANF-12.000000	TAITIEN晶振	XS	12MHz	±30ppm	±30ppm	12pF
XSDEELNANF-13.560000	TAITIEN晶振	XS	13.56MHz	±30ppm	±30ppm	12pF
XSDEELNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	12pF
XSDEGCNANF-16.000000	TAITIEN晶振	XS	16MHz	±50ppm	±30ppm	12pF
XSFGGLNANF-20.000000	TAITIEN晶振	XS	20MHz	±50ppm	±50ppm	16pF
XSGEECNANF-16.000000	TAITIEN晶振	XS	16MHz	±30ppm	±30ppm	18pF
XSGEELNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	18pF
XSGEGLNANF-13.000000	TAITIEN晶振	XS	13MHz	±50ppm	±30ppm	18pF
XSHEECNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSHEELNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSHGGLNANF-11.059200	TAITIEN晶振	XS	11.0592MHz	±50ppm	±50ppm	20pF
XSHGGLNANF-12.000000	TAITIEN晶振	XS	12MHz	±50ppm	±50ppm	20pF
XSHGGLNANF-16.000000	TAITIEN晶振	XS	16MHz	±50ppm	±50ppm	20pF
XSHGGLNANF-24.000000	TAITIEN晶振	XS	24MHz	±50ppm	±50ppm	20pF
XSDEELAANF-12.000000	TAITIEN晶振	XS	12MHz	±30ppm	±30ppm	12pF
XSDEELAANF-13.560000	TAITIEN晶振	XS	13.56MHz	±30ppm	±30ppm	12pF
XSGEECAANF-16.000000	TAITIEN晶振	XS	16MHz	±30ppm	±30ppm	18pF
XSGEELAANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	18pF
XSHEECAANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSHEELAANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSGCCLNANF-25.000000	TAITIEN晶振	XS	25MHz	±20ppm	±20ppm	18pF
XSGCECNANF-8.000000	TAITIEN晶振	XS	8MHz	±30ppm	±20ppm	18pF
XSGCELNANF-8.000000	TAITIEN晶振	XS	8MHz	±30ppm	±20ppm	18pF
XSHCCLNANF-25.000000	TAITIEN晶振	XS	25MHz	±20ppm	±20ppm	20pF
XSCDDCAANF-24.000000	TAITIEN晶振	XS	24MHz	±25ppm	±25ppm	10pF
XSGCCLAANF-25.000000	TAITIEN晶振	XS	25MHz	±20ppm	±20ppm	18pF
XSFPPCNANF-50.000000	TAITIEN晶振	XS	50MHz	±15ppm	±15ppm	16pF
XSDEELNANF-37.050000	TAITIEN晶振	XS	37.05MHz	±30ppm	±30ppm	12pF
XSCDDCNANF-24.000000	TAITIEN晶振	XS	24MHz	±25ppm	±25ppm	10pF
