首页进口晶振泰艺晶振XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

频率：32MHz

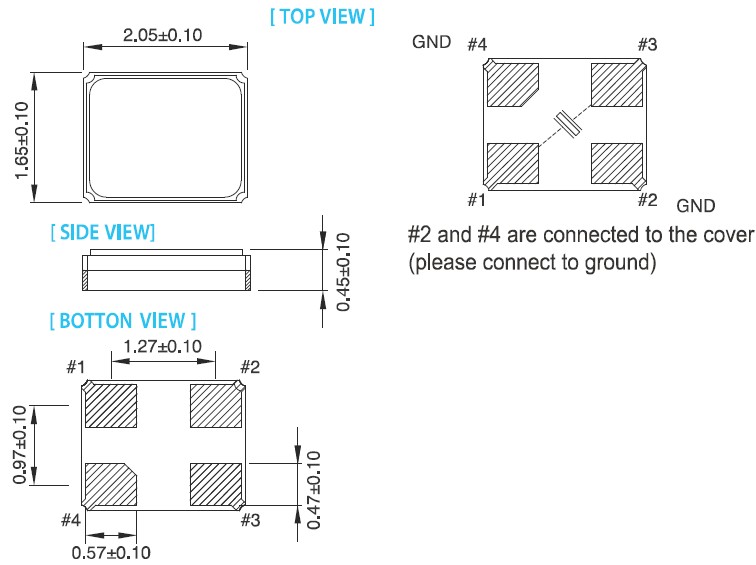

尺寸：2.05*1.65mm
应　用： XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN,台湾泰艺石英晶振,XZ型2.0x1.6mmSMD晶体,典型的2.05x1.65x0.45mm超薄陶瓷包装。-8mm宽的胶带和卷轴包装，用于自动组装。紧密公差10ppm可用,蓝牙，移动电话，...

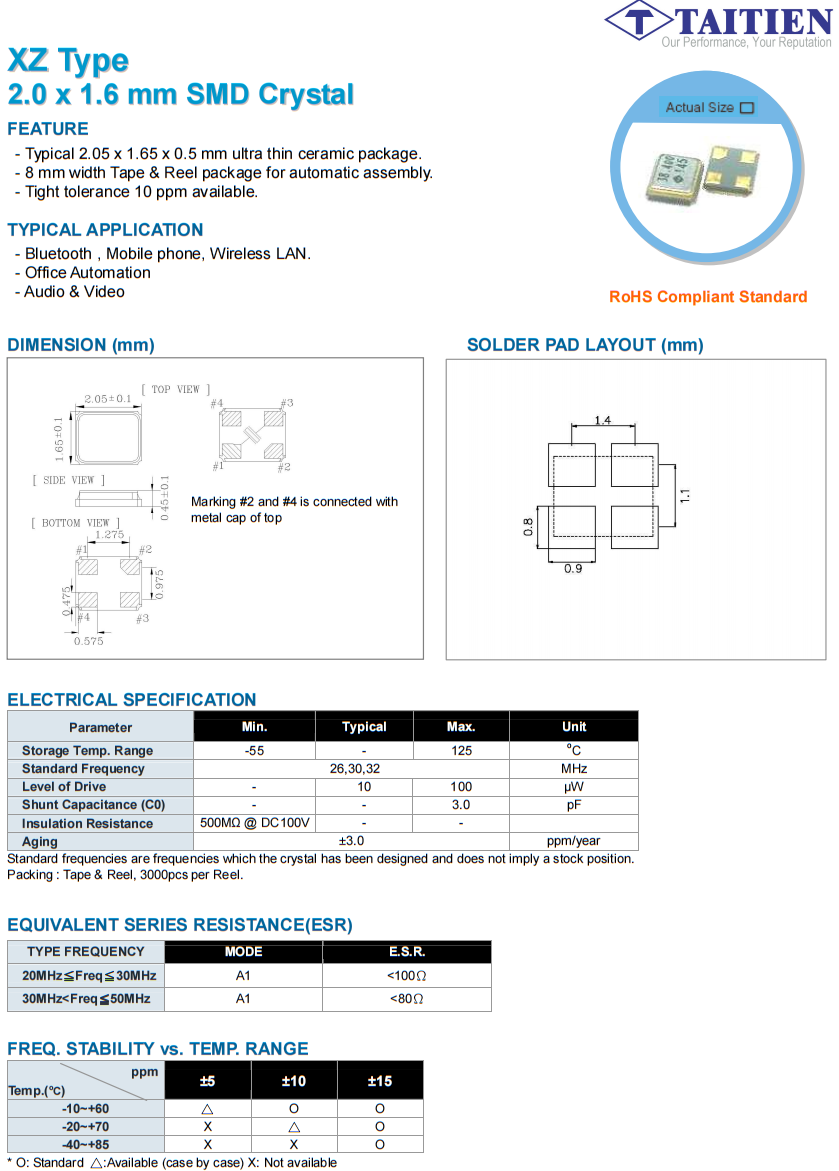

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN,台湾泰艺石英晶振,XZ型2.0 x 1.6 mm SMD晶体,典型的2.05 x 1.65 x 0.45 mm超薄陶瓷包装。- 8 mm宽的胶带和卷轴包装，用于自动组装。紧密公差10 ppm可用,蓝牙，移动电话，无线局域网。办公室自动化,音频和视频.

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

参数	最小值	典型的	最大值	单位
储存温度	--55	-	125	℃
标称频率	26 , 30, 32, 40			MHz
驱动电平	-	10	200	µw
并联电容	-	-	3.0	pF
绝缘电阻	500 M?@ DC100V	-	-
老化	±1.0 to ±3.0			ppm / year

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

TAITIEN原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	6pF
XZLEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	6pF
XZLEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	6pF
XZLEECNANF-50.000000	Taitien	XZ	50MHz	±30ppm	±30ppm	6pF
