首页进口晶振 TXC晶振7A18470001-18.432MHz-30PPM--20~70℃-5032

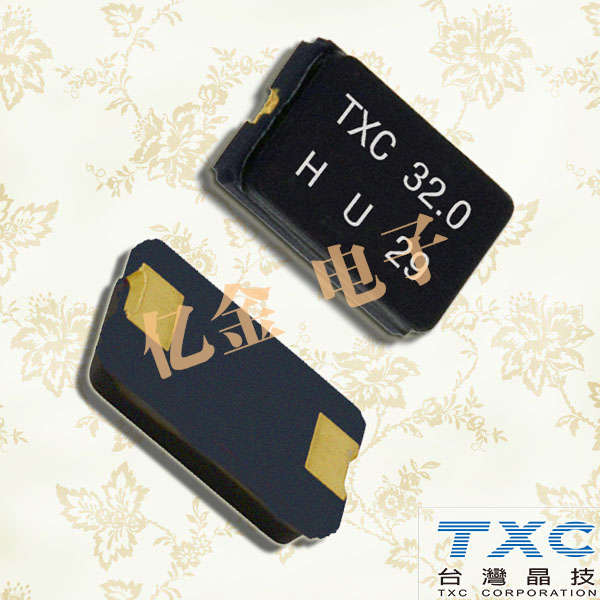

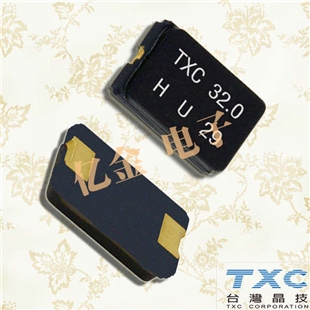

7A18470001-18.432MHz-30PPM--20~70℃-5032

频率：18.432MHz
尺寸：5032
应　用： 7A18470001-18.432MHz-30PPM--20~70℃-5032，2个垫片SMD玻璃密封晶体单元。高可靠的环境性能,有紧密的公差和稳定性部件。设计用于自动安装和回流焊。成本合理，交货性能好。便携式PC、PDA、DSC、USB接口卡的最佳选择。...

7A18470001-18.432MHz-30PPM--20~70℃-5032，TXC晶振，2个垫片SMD玻璃密封晶体单元。高可靠的环境性能,有紧密的公差和稳定性部件。设计用于自动安装和回流焊。成本合理，交货性能好。便携式PC、PDA、DSC、USB接口卡的最佳选择。在被RoHS指令豁免的密封玻璃中含有铅。

7A18470001-18.432MHz-30PPM--20~70℃-5032

Item / Type				7A
Frequency Range				18.432MHz
Frequency Tolerance (at 25 ℃)				± 30 ppm, or specify
Frequency Stability Over Operating Temperature Range				± 30 ppm, or specify
Operating Temperature Range				-10 ~ +70 ℃, or specify
Shunt Capacitance (C0)				5 pF Max.
Drive Level				1 ~ 200 μW (100 μW typical)
Load Capacitance				Series, 6 pF, 10 pF, 16 pF, 20 pF, or specify
Aging (at 25 ℃)				± 3 ppm / year Max.
Storage Temperature Range				- 40 ~ + 85 ℃

7A18470001-18.432MHz-30PPM--20~70℃-5032

TXC原厂编码	生产厂家	型号	频率	频率稳定度
7A-27.120MAAE-T	TXC CORPORATION	7A	27.12MHz	±30ppm
7A-27.120MAAE-T	TXC CORPORATION	7A	27.12MHz	±30ppm
7A-27.120MAAE-T	TXC CORPORATION	7A	27.12MHz	±30ppm
7A-24.000MAAJ-T	TXC CORPORATION	7A	24MHz	±30ppm
7A-24.000MAAJ-T	TXC CORPORATION	7A	24MHz	±30ppm
7A-24.000MAAJ-T	TXC CORPORATION	7A	24MHz	±30ppm
7A-16.000MAAJ-T	TXC CORPORATION	7A	16MHz	±30ppm
7A-16.000MAAJ-T	TXC CORPORATION	7A	16MHz	±30ppm
7A-16.000MAAJ-T	TXC CORPORATION	7A	16MHz	±30ppm
7A-8.000MAAJ-T	TXC CORPORATION	7A	8MHz	±30ppm
7A-8.000MAAJ-T	TXC CORPORATION	7A	8MHz	±30ppm
7A-8.000MAAJ-T	TXC CORPORATION	7A	8MHz	±30ppm
7A-12.000MAAJ-T	TXC CORPORATION	7A	12MHz	±30ppm
7A-12.000MAAJ-T	TXC CORPORATION	7A	12MHz	±30ppm
7A-12.000MAAJ-T	TXC CORPORATION	7A	12MHz	±30ppm
7A-25.000MAAJ-T	TXC CORPORATION	7A	25MHz	±30ppm
7A-25.000MAAJ-T	TXC CORPORATION	7A	25MHz	±30ppm
7A-25.000MAAJ-T	TXC CORPORATION	7A	25MHz	±30ppm
7A-27.120MAAJ-T	TXC CORPORATION	7A	27.12MHz	±30ppm
7A-27.120MAAJ-T	TXC CORPORATION	7A	27.12MHz	±30ppm
7A-27.120MAAJ-T	TXC CORPORATION	7A	27.12MHz	±30ppm
7A-24.000MAHE-T	TXC CORPORATION	7A	24MHz	±30ppm
7A-24.000MAHE-T	TXC CORPORATION	7A	24MHz	±30ppm
7A-24.000MAHE-T	TXC CORPORATION	7A	24MHz	±30ppm
7A-10.000MAAJ-T	TXC CORPORATION	7A	10MHz	±30ppm
