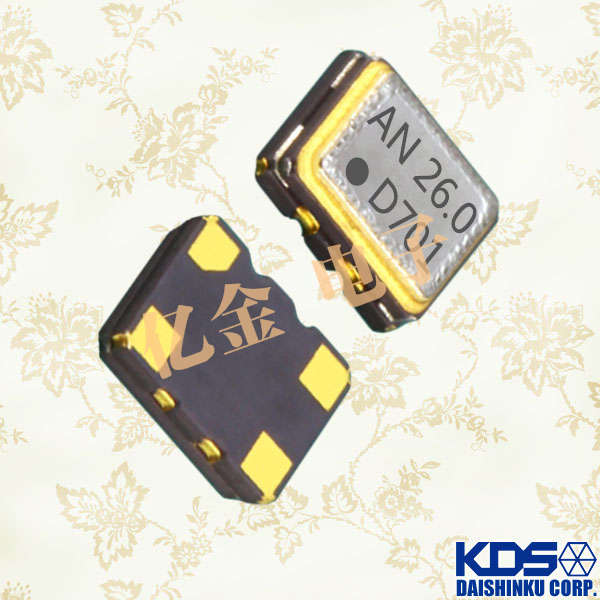

1XTW26000MAA,KDS大真空温补晶振,DSB321SDN晶振
- 频率：26MHz
- 尺寸：3225
- 应 用： 1XTW26000MAA,KDS大真空温补晶振,DSB321SDN晶振超小贴片封装(尺寸仅3.2mm×2.5mm×0.7mm),兼容全自动SMT贴装工艺,可大幅节省PCB板空间,适配智能手机,物联网模组,便携式检测设备等高密度布局场景.
-
.png)
.png)
1XTW26000MAA,KDS大真空温补晶振,DSB321SDN晶振
1XTW26000MAA是KDS(大真空晶振)推出的高精度温补晶体振荡器(TCXO),采用DSB321SDN贴片封装,谐振频率精准设定为26MHz,专为对频率稳定性要求严苛的电子系统设计.该型号具备卓越的温度补偿性能,在-40℃~+85℃工业级温区内,频率稳定度可控制在±0.1ppm以内,远超普通无源晶振,同时拥有低等效串联电阻与低相位噪声特性,能为通信,导航,测量仪器等设备提供高纯净度的时钟信号,是精密电子系统的核心频率控制元件.
.png)
.png)

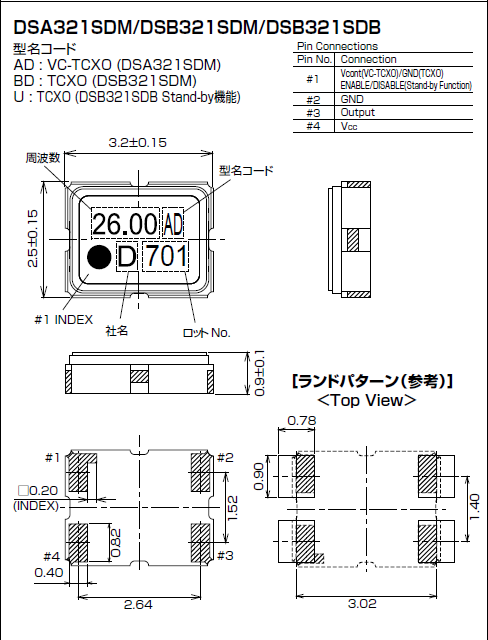

1XTW26000MAA,KDS大真空温补晶振,DSB321SDN晶振
| 原厂型号 Originalmodel： | 1XTW26000MAA | 品牌brand： | KDS有源温补晶振 |
| Manufacturer品牌 | KDS | OperatingTemperature温度 | -30℃~+85℃ |
| Series型号 | DSB321SDN | Current-Supply(Max) | - |
| Type类型 | TCXO | PackageHeight高度 | 0.9mm |
| Frequency频率 | 26M | Termination 脚位 | 4-pad |
| 输出方式 Output： | 削峰正弦波 | PackageType 封装类型 | 4-Smd |
| Voltage-Supply电压 | 1.7V~3.6V | Packaging 包装 | TapeandReel |
| FrequencyStability频率稳定度 | 500ppb | 安装方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225mm | 最小包装数MPQ： | 3000 |
.png)
.png)
1XTW26000MAA,KDS大真空温补晶振,DSB321SDN晶振
.png)
1XTW26000MAA,KDS大真空温补晶振,DSB321SDN晶振
| 7XZ-32.768KBE-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm |
| 7Z-38.400MBG-T | TXC CORPORATION | 7Z | TCXO | 38.4 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Z-26.000MBG-T | TXC CORPORATION | 7Z | TCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| CX-100.000MBE-T | TXC CORPORATION | CX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm |
| 7X-50.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| 7C-25.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| 7C-40.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm |
| 8W-24.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| 7C-25.000MCB-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 2.5V | ±50ppm |
| 7C-26.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7C-28.63636MBB-T | TXC CORPORATION | 7C | XO (Standard) | 28.63636 MHz | CMOS | 3.3V | ±50ppm |
| 7X-19.200MBA-T | TXC CORPORATION | 7X | XO (Standard) | 19.2 MHz | CMOS | 3.3V | ±25ppm |
| 8WE-33.333MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 7X-26.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm |
| 8WE-24.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 7X-26.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7X-48.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| AU-12.288MBE-T | TXC CORPORATION | AU | XO (Standard) | 12.288 MHz | CMOS | 3.3V | ±50ppm |
| AU-24.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| AU-50.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| 7C-26.000MBA-T | TXC CORPORATION | 7C | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm |
| 7C-25.000MBA-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| BX-100.000MBE-T | TXC CORPORATION | BX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm |
| 7N-20.000MBP-T | TXC CORPORATION | 7N | TCXO | 20 MHz | CMOS | 3.3V | ±280ppb |
| 7N-12.800MBP-T | TXC CORPORATION | 7N | TCXO | 12.8 MHz | CMOS | 3.3V | ±280ppb |
| 7X-25.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| 7C-4.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 4 MHz | CMOS | 3.3V | ±50ppm |
| 8WE-25.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-38.400MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-25.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-24.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| AU-25.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| AU-26.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7Z-26.000MDS-T | TXC CORPORATION | 7Z | VCTCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±2ppm |
| 7Z-26.000MDG-T | TXC CORPORATION | 7Z | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb |
| BR-61.4400MBE-T | TXC CORPORATION | BR | VCXO | 61.44 MHz | CMOS | 3.3V | ±50ppm |
| 8WE-33.333MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-24.576MDM-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-30.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-24.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-27.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| TD-7.3728MBD-T | TXC CORPORATION | TD | XO (Standard) | 7.3728 MHz | CMOS | 3.3V | ±25ppm |
| 7XZ-32.768KBA-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm |
| 7XZ-32.768KDA-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±25ppm |
| 7W-36.000MBB-T | TXC CORPORATION | 7W | XO (Standard) | 36 MHz | CMOS | 3.3V | ±50ppm |
| 8NE-25.000MDM-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 7X-38.400MBE-T | TXC CORPORATION | 7X | XO (Standard) | 38.4 MHz | CMOS | 3.3V | ±50ppm |
| 7W-10.000MBE-T | TXC CORPORATION | 7W | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm |
| 7X-30.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm |
| 7X-26.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7C-50.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| 8W-26.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 8W-13.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 13 MHz | CMOS | 3.3V | ±50ppm |
| 7X-30.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm |
| 8W-20.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm |
| 7C-40.000MCB-T | TXC CORPORATION | 7C | XO (Standard) | 40 MHz | CMOS | 2.5V | ±50ppm |
| 7C-24.576MBA-T | TXC CORPORATION | 7C | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±25ppm |
| 8NE-24.576MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-20.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-27.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
