首页进口晶振KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振

KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振

频率：50.000MHZ

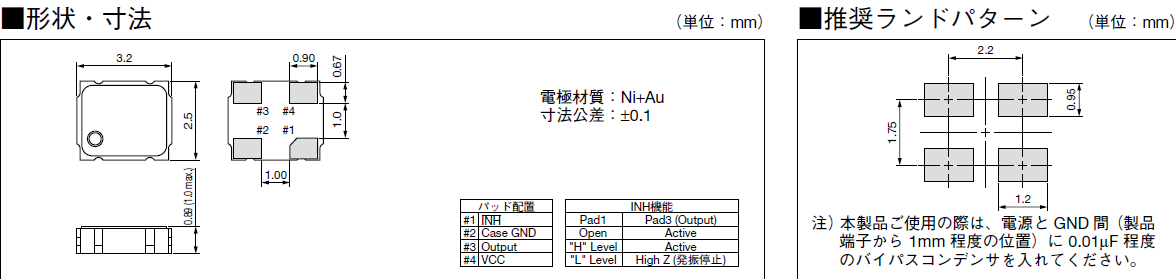

尺寸：3225
应　用： KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振,凭借高精度,宽温域,小型化,强抗干扰的综合优势,广泛应用于多领域高端电子设备.在消费电子领域,可作为智能手机射频芯片,平板电脑处理器,智能手表主控单元的时钟...

KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振

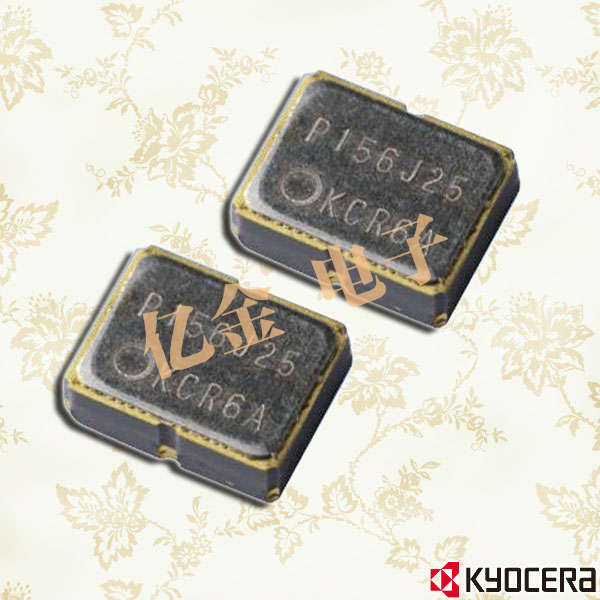

KC3225A50.0000C3GE00是日本京瓷(Kyocera)品牌推出的高性能进口晶振,核心频率精准设定为50.0000MHz,为电子设备提供稳定且高精度的时钟信号,是设备时序控制的核心组件.该型号采用标准3225贴片进口晶振封装规格,尺寸为长3.2mm×宽2.5mm,超薄的封装设计(厚度通常控制在0.7mm以内),能灵活适配智能手机,智能穿戴设备,物联网模块等对元器件体积要求严苛的小型化产品.工作温度范围覆盖-40℃至+85℃,可在高低温交替的复杂环境中保持稳定运行,同时具备低功耗特性,有效降低设备整体能耗,延长便携式电子设备的续航时间,满足多场景下的使用需求.

KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振

原厂型号 Originalmodel：	KC3225A50.0000C3GE00	品牌brand：	京瓷Kyocera
Manufacturer品牌	日本京瓷晶振	OperatingTemperature温度	-40+85℃
Series型号	KC3225A	Current-Supply(Max)	-
Type类型	XO	PackageHeight高度	0.89mm
Frequency频率	50M	Termination 脚位	4-pad
输出方式 Output：	CMOS	PackageType 封装类型	4-Smd
Voltage-Supply电压	3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	50PP	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	3225mm	最小包装数MPQ：	3000

KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振

KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本进口晶振

CX2520DB40000D0FLJCC	日产京瓷晶振	CX2520DB	40 MHz	±15ppm	±10ppm	8pF	50 Ohms
CX2520DB16000D0GEJCC	日产京瓷晶振	CX2520DB	16 MHz	±15ppm	±15ppm	8pF	80 Ohms
CX2520DB24000D0GEJCC	日产京瓷晶振	CX2520DB	24 MHz	±15ppm	±15ppm	8pF	80 Ohms
CX2520DB24576D0GEJCC	日产京瓷晶振	CX2520DB	24.576 MHz	±15ppm	±15ppm	8pF	80 Ohms
CX2520DB32000D0GEJCC	日产京瓷晶振	CX2520DB	32 MHz	±15ppm	±15ppm	8pF	50 Ohms
CX2520DB48000D0GEJCC	日产京瓷晶振	CX2520DB	48 MHz	±15ppm	±15ppm	8pF	50 Ohms
CX2520SB13560D0GEJCC	日产京瓷晶振	CX2520SB	13.56 MHz	±15ppm	±15ppm	8pF	150 Ohms
ST3215SB32768E0HPWBB	日产京瓷晶振	ST3215SB	32.768 kHz	±200ppm	±20ppm	9pF	70 kOhms
ST2012SB32768Z0HPWB4	日产京瓷晶振	ST2012SB	32.768 kHz	-	±20ppm	4pF	75 kOhms
ST2012SB32768C0HPWBB	日产京瓷晶振	ST2012SB	32.768 kHz	-	±20ppm	7pF	80 kOhms
ST2012SB32768E0HPWBB	日产京瓷晶振	ST2012SB	32.768 kHz	-	±20ppm	9pF	80 kOhms
ST3215SB32768Z0HPWBB	日产京瓷晶振	ST3215SB	32.768 kHz	-	±20ppm	4pF	70 kOhms
CX2016DB16000D0FLJCC	日产京瓷晶振	CX2016DB	16 MHz	±15ppm	±10ppm	8pF	200 Ohms
CX5032GB08000H0HPQZ1	日产京瓷晶振	CX5032GB	8 MHz	±30ppm	±20ppm	12pF	300 Ohms
CX5032GB10000H0HPQZ1	日产京瓷晶振	CX5032GB	10 MHz	±30ppm	±20ppm	12pF	150 Ohms
CX5032GB12000H0HPQZ1	日产京瓷晶振	CX5032GB	12 MHz	±30ppm	±20ppm	12pF	150 Ohms
CX5032GB16000H0HPQZ1	日产京瓷晶振	CX5032GB	16 MHz	±30ppm	±20ppm	12pF	100 Ohms
CT2520DB26000C0FZZA1	日产京瓷晶振	CT2520DB	26 MHz	±10ppm	±10ppm	7pF	30 Ohms
CX2520DB12000C0WLSC1	日产京瓷晶振	CX2520DB	12 MHz	±50ppm	±50ppm	7pF	100 Ohms
CX2520DB38400D0FZGC1	日产京瓷晶振	CX2520DB	38.4 MHz	±11ppm	±10ppm	8pF	80 Ohms
CX3225SB48000D0FPJC2	日产京瓷晶振	CX3225SB	48 MHz	±15ppm	±10ppm	8pF	50 Ohms
CX3225SB48000D0WPSC2	日产京瓷晶振	CX3225SB	48 MHz	±30ppm	±15ppm	8pF	50 Ohms
CX3225SB54000D0FPJC2	日产京瓷晶振	CX3225SB	54 MHz	±15ppm	±10ppm	8pF	50 Ohms
CX3225SB54000D0WPSC2	日产京瓷晶振	CX3225SB	54 MHz	±30ppm	±15ppm	8pF	50 Ohms
ST3215SB32768B0HSZA1	日产京瓷晶振	ST3215SB	32.768 kHz	-	±20ppm	6pF	70 kOhms
ST3215SB32768C0HSZA1	日产京瓷晶振	ST3215SB	32.768 kHz	-	±20ppm	7pF	70 kOhms
ST3215SB32768E0HSZB1	日产京瓷晶振	ST3215SB	32.768 kHz	-	±20ppm	9pF	70 kOhms
ST3215SB32768H5HSZA1	日产京瓷晶振	ST3215SB	32.768 kHz	-	±20ppm	12.5pF	70 kOhms
CX2520DB16000D0WZRC1	日产京瓷晶振	CX2520DB	16 MHz	±50ppm	±25ppm	8pF	80 Ohms
CX2520DB32000D0WZRC1	日产京瓷晶振	CX2520DB	32 MHz	±50ppm	±25ppm	8pF	50 Ohms
ST2012SB32768H5WZZAP	日产京瓷晶振	ST2012SB	32.768 kHz	-	±250ppm	12.5pF	75 kOhms
ST3215SB32768H5WZZAP	日产京瓷晶振	ST3215SB	32.768 kHz	±250ppm	-	12.5pF	70 kOhms
CX5032GA08000H0PST02	日产京瓷晶振	CX5032GA	8 MHz	±100ppm	±50ppm	12pF	200 Ohms
CX8045GA04000H0PST03	日产京瓷晶振	CX8045GA	4 MHz	±100ppm	±50ppm	12pF	300 Ohms
CX2016DB16000H0FLJC1	日产京瓷晶振	CX2016DB	16 MHz	±15ppm	±10ppm	12pF	200 Ohms
CX2520DB12000D0FLJC1	日产京瓷晶振	CX2520DB	12 MHz	±15ppm	±10ppm	8pF	150 Ohms
CX2520DB12000H0FLJC1	日产京瓷晶振	CX2520DB	12 MHz	±15ppm	±10ppm	12pF	150 Ohms
CX2520DB13560D0FLJC2	日产京瓷晶振	CX2520DB	13.56 MHz	±15ppm	±10ppm	8pF	150 Ohms
CX2520DB13560H0FLJC1	日产京瓷晶振	CX2520DB	13.56 MHz	±15ppm	±10ppm	12pF	150 Ohms
CX2520DB16000H0FLJC1	日产京瓷晶振	CX2520DB	16 MHz	±15ppm	±10ppm	12pF	80 Ohms
CX2520DB16000D0GPSC1	日产京瓷晶振	CX2520DB	16 MHz	±50ppm	±15ppm	8pF	80 Ohms
CX2520DB19200D0FLJC2	日产京瓷晶振	CX2520DB	19.2 MHz	±15ppm	±10ppm	8pF	80 Ohms
CX2520DB19200H0FLJC1	日产京瓷晶振	CX2520DB	19.2 MHz	±15ppm	±10ppm	12pF	80 Ohms
CX2520DB24000D0FLJCC	日产京瓷晶振	CX2520DB	24 MHz	±15ppm	±10ppm	8pF	80 Ohms
CX2520DB24000H0FLJC1	日产京瓷晶振	CX2520DB	24 MHz	±15ppm	±10ppm	12pF	80 Ohms
CX2520DB25000D0FLJC1	日产京瓷晶振	CX2520DB	25 MHz	±15ppm	±10ppm	8pF	80 Ohms
CX2520DB25000H0FLJC1	日产京瓷晶振	CX2520DB	25 MHz	±15ppm	±10ppm	12pF	80 Ohms
CX2520DB27000H0FLJC1	日产京瓷晶振	CX2520DB	27 MHz	±15ppm	±10ppm	12pF	60 Ohms
CX2520DB32000H0FLJC1	日产京瓷晶振	CX2520DB	32 MHz	±15ppm	±10ppm	12pF	50 Ohms
CX2520DB40000D0GPSC1	日产京瓷晶振	CX2520DB	40 MHz	±50ppm	±15ppm	8pF	50 Ohms
CX2520DB12000D0GPSC1	日产京瓷晶振	CX2520DB	12 MHz	±50ppm	±15ppm	8pF	150 Ohms
CX2520DB13560D0GPSC1	日产京瓷晶振	CX2520DB	13.56 MHz	±50ppm	±15ppm	8pF	150 Ohms
CX2520DB19200D0GPSC1	日产京瓷晶振	CX2520DB	19.2 MHz	±50ppm	±15ppm	8pF	80 Ohms
CX2520DB20000H0FLJC1	日产京瓷晶振	CX2520DB	20 MHz	±15ppm	±10ppm	12pF	80 Ohms
CX2520DB20000D0GPSC1	日产京瓷晶振	CX2520DB	20 MHz	±50ppm	±15ppm	8pF	80 Ohms
CX2520DB24000D0GPSC1	日产京瓷晶振	CX2520DB	24 MHz	±50ppm	±15ppm	8pF	80 Ohms
CX2520DB24576D0FLJC1	日产京瓷晶振	CX2520DB	24.576 MHz	±15ppm	±10ppm	8pF	80 Ohms
CX2520DB24576H0FLJC1	日产京瓷晶振	CX2520DB	24.576 MHz	±15ppm	±10ppm	12pF	80 Ohms
CX2520DB24576D0GPSC1	日产京瓷晶振	CX2520DB	24.576 MHz	±50ppm	±15ppm	8pF	80 Ohms
CX2520DB25000D0GPSC1	日产京瓷晶振	CX2520DB	25 MHz	±50ppm	±15ppm	8pF	80 Ohms
