首页进口晶振SG3225VAN200.000000M-KEGA3,3225差分晶振,200MHz晶振

SG3225VAN200.000000M-KEGA3,3225差分晶振,200MHz晶振

频率：200MHz
尺寸：3225mm
应　用： SG3225VAN200.000000M-KEGA3,3225差分晶振,200MHz晶振,LVDS差分信号输出方式大幅提升长走线时序稳定性,降低串扰损耗.支持宽电压2.5-3.3V输入,是高速通信与工业控制主流时钟选型.

SG3225VAN200.000000M-KEGA3,3225差分晶振,200MHz晶振

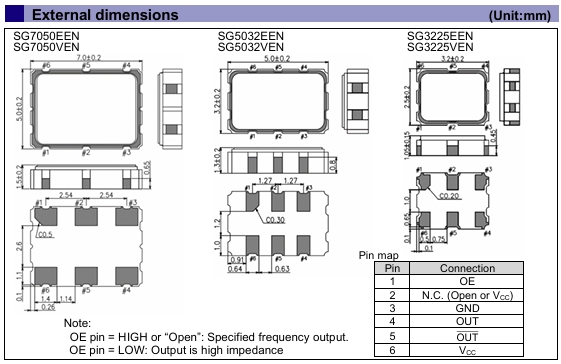

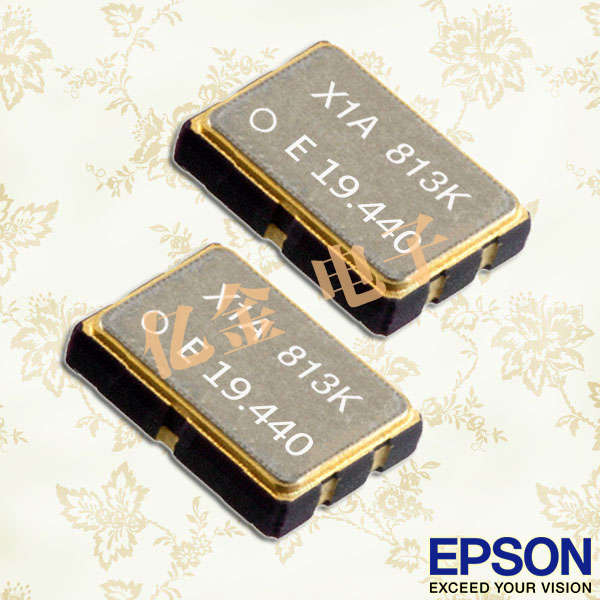

SG3225VAN200.000000M-KEGA3为爱普生3225封装LVDS差分晶振,标准200MHz基准频率,尺寸3.2×2.5×1.05mm,适配高密度PCB小型化布局.采用AT切石英搭配内置PLL架构,全温-40℃~+85℃频稳±30ppm,相位抖动低至0.6ps,差分输出有效抑制电磁干扰,高速信号眼图完整稳定.供电兼容2.5V/3.3V,最大工作电流30mA,搭载OE输出使能引脚,可按需关断时钟降低整机功耗.无铅环保符合RoHS规范,编带SMT封装适配自动化贴片产线,广泛用于千兆光模块,工业FPGA,5G通信板卡,高速数据采集设备,为高速差分总线提供纯净稳定时钟基准.

SG3225VAN200.000000M-KEGA3,3225差分晶振,200MHz晶振

原厂型号 Originalmodel：	SG3225VAN200.000000M-KEGA3	品牌brand：	EPSON
Manufacturer品牌	EPSON高精度晶振	OperatingTemperature温度	-40+85℃
Series型号	SG3225VAN	Current-Supply(Max)	-
Type类型	XO	PackageHeight高度	1.05MM
Frequency频率	200M	Termination 脚位	6-pad
输出方式 Output：	LVDS	PackageType 封装类型	6-smd
Voltage-Supply电压	2.5-3.3V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±30PPm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	3225mm	最小包装数MPQ：	3000

SG3225VAN200.000000M-KEGA3,3225差分晶振,200MHz晶振

SG-8018CG 19.843750M-TJHPA0	EPSON	SG-8018	XO	19.84375 MHz
SG-8018CG 148.4258M-TJHPA0	EPSON	SG-8018	XO	148.4258 MHz
SG-8018CG 19.6608M-TJHPA0	EPSON	SG-8018	XO	19.6608 MHz
SG-8018CG 12.9876M-TJHSA0	EPSON	SG-8018	XO	12.9876 MHz
SG-8018CG 16.3960M-TJHPA0	EPSON	SG-8018	XO	16.396 MHz
SG-8018CG 4.8250M-TJHPA0	EPSON	SG-8018	XO	4.825 MHz
SG-8018CG 26.9900M-TJHPA0	EPSON	SG-8018	XO	26.99 MHz
SG-8018CG 19.692307M-TJHPA0	EPSON	SG-8018	XO	19.692307 MHz
SG-8018CG 98.7650M-TJHPA0	EPSON	SG-8018	XO	98.765 MHz
SG-8018CG 98.3040M-TJHPA0	EPSON	SG-8018	XO	98.304 MHz
SG-8018CG 32.5710M-TJHPA0	EPSON	SG-8018	XO	32.571 MHz
SG-8018CG 33.2300M-TJHPA0	EPSON	SG-8018	XO	33.23 MHz
SG-8018CG 38.9100M-TJHSA0	EPSON	SG-8018	XO	38.91 MHz
SG-8018CG 32.507937M-TJHPA0	EPSON	SG-8018	XO	32.507937 MHz
SG-8018CG 4.9150M-TJHPA0	EPSON	SG-8018	XO	4.915 MHz
SG-8018CG 135.0000M-TJHPA0	EPSON	SG-8018	XO	135 MHz
SG-8018CG 73.3337M-TJHPA0	EPSON	SG-8018	XO	73.3337 MHz
SG-8018CG 12.3540M-TJHPA0	EPSON	SG-8018	XO	12.354 MHz
SG-8018CG 102.4000M-TJHSA0	EPSON	SG-8018	XO	102.4 MHz
SG-8018CG 4.5160M-TJHSA0	EPSON	SG-8018	XO	4.516 MHz
SG-8018CG 148.0000M-TJHPA0	EPSON	SG-8018	XO	148 MHz
SG-8018CG 16.6000M-TJHSA0	EPSON	SG-8018	XO	16.6 MHz
SG-8018CG 56.0580M-TJHSA0	EPSON	SG-8018	XO	56.058 MHz
SG-8018CG 122.2000M-TJHSA0	EPSON	SG-8018	XO	122.2 MHz
SG-8018CG 99.1440M-TJHPA0	EPSON	SG-8018	XO	99.144 MHz
SG-8018CG 4.9600M-TJHSA0	EPSON	SG-8018	XO	4.96 MHz
SG-8018CG 134.7840M-TJHPA0	EPSON	SG-8018	XO	134.784 MHz
SG-8018CG 16.5800M-TJHPA0	EPSON	SG-8018	XO	16.58 MHz
SG-8018CG 99.751230M-TJHSA0	EPSON	SG-8018	XO	99.75123 MHz
SG-8018CG 22.597240M-TJHSA0	EPSON	SG-8018	XO	22.59724 MHz
SG-8018CG 101.2656M-TJHPA0	EPSON	SG-8018	XO	101.2656 MHz
SG-8018CG 32.7680M-TJHSA0	EPSON	SG-8018	XO	32.768 MHz
SG-8018CG 4.433619M-TJHPA0	EPSON	SG-8018	XO	4.433619 MHz
SG-8018CG 4.7500M-TJHSA0	EPSON	SG-8018	XO	4.75 MHz
EG-2121CA 200.0000M-PHPAL3	EPSON	EG-2121CA	SO SAW	200 MHz
EG-2121CA 200.0000M-PHPAB	EPSON	EG-2121CA	SO SAW	200 MHz
EG-2121CA 156.2500M-LHPAB	EPSON	EG-2121CA	SO SAW	156.25 MHz
EG-2102CB 156.2500M-LGPAL3	EPSON	EG-2102CB	SO SAW	156.25 MHz
SG3225EEN 156.250000M-DJGA3	EPSON	SG3225EEN	XO	156.25 MHz
SG3225VEN 156.250000M-CJGA3	EPSON	SG3225VEN	XO	156.25 MHz
SG7050EEN 156.2500M-CJGA3	EPSON	SG7050EEN	XO	156.25 MHz
SG7050EEN 156.2500M-CDGA3	EPSON	SG7050EEN	XO	156.25 MHz
EG-2121CA 250.0000M-LGPAB	EPSON	EG-2121CA	SO SAW	250 MHz
TG2520SMN 27.6000M-ECGNNM3	EPSON	TG2520SMN	TCXO	27.6 MHz
VG-4231CE 12.2880M-CSCM3	EPSON	VG-4231CE	VCXO	12.288 MHz
XG-2102CA 250.0000M-PGPAL3	EPSON	XG-2102CA	SO SAW	250 MHz
SG3225HBN 212.500000M-CJGA3	EPSON	SG3225HBN	XO	212.5 MHz
EG-2121CA 125.0000M-LHPAL3	EPSON	EG-2121CA	SO SAW	125 MHz
SG3225VEN 125.000000M-CJGA3	EPSON	SG3225VEN	XO	125 MHz
SG3225EEN 100.000000M-CJGA3	EPSON	SG3225EEN	XO	100 MHz
SG3225EEN 25.000000M-CDGA3	EPSON	SG3225EEN	XO	25 MHz
SG-210STF 27.0000ML0	EPSON	SG-210STF	XO	27 MHz
SG3225CAN 50.0000M-TJGA6	EPSON	SG3225CAN	XO	50 MHz
SG3225CAN 48.0000M-TJGA6	EPSON	SG3225CAN	XO	48 MHz
SG7050CCN 16.000000M-HJGA0	EPSON	SG7050CCN	XO	16 MHz
SG-210STF 27.0000ML3	EPSON	SG-210STF	XO	27 MHz
SG-210STF 24.5760MS3	EPSON	SG-210STF	XO	24.576 MHz
SG-210STF 12.2880MS3	EPSON	SG-210STF	XO	12.288 MHz
TG2016SMN 19.2000M-MCGNNM0	EPSON	TG2016SMN	TCXO	19.2 MHz
TG2016SMN 38.4000M-ECGNNM0	EPSON	TG2016SMN	TCXO	38.4 MHz
