首页晶振行业动态 FA-238贴片晶振Q22FA2380014700用于通讯模块应用

FA-238贴片晶振Q22FA2380014700用于通讯模块应用

来源:http://www.yijindz.com 作者:亿金电子 2022年10月18
石英晶体谐振器,简称石英晶体或晶振,是利用石英晶体(又称水晶)的压电效应,用来产生高精度振荡频率的一种电子元件,属于被动元件。该元件主要由石英晶片、基座、外壳、银胶、银等成分组成。

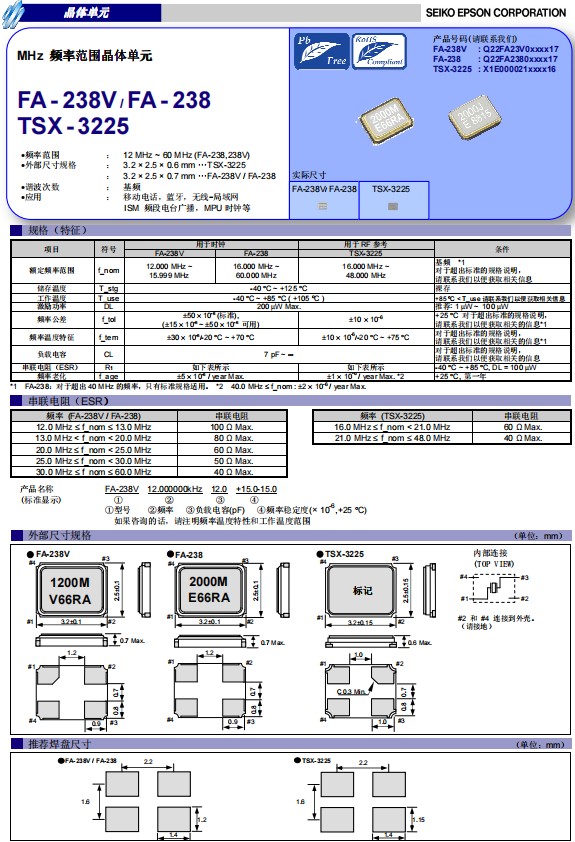

日本进口爱普生晶振FA-238和FA-238V,是一款小体积晶振尺寸3.2x2.5mm四脚贴片晶振,无源晶振,石英晶体谐振器,频率范围:12MHz至15.9999MHz可以选择FA-238V晶振,而频率范围:16MHz至60MHz之间的频率可以选型FA-238系列。
该产品工作温度都是-40℃至+85℃(+105℃),都具有超小型,轻薄型,耐热及耐环境特点,特别适用于小型便捷设备,通讯模块,可穿戴设备,智能手机,平板电脑,便捷式电子仪器,汽车电子,智能家居等。
FA-238贴片晶振Q22FA2380014700用于通讯模块应用,Q22FA2380017000,3225mm晶振

爱普生晶振 尺寸 型号 频率 负载 精度 频率公差 工作温度
Q22FA2380009500 3.2x2.5x0.7mm FA-238 25.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380009800 3.2x2.5x0.7mm FA-238 30.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380010300 3.2x2.5x0.7mm FA-238 27.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380011400 3.2x2.5x0.7mm FA-238 24.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012000 3.2x2.5x0.7mm FA-238 24.576000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012700 3.2x2.5x0.7mm FA-238 18.432000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012800 3.2x2.5x0.7mm FA-238 18.432000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380012900 3.2x2.5x0.7mm FA-238 22.579200MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380013300 3.2x2.5x0.7mm FA-238 16.000000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380013700 3.2x2.5x0.7mm FA-238 40.000000MHz 18pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380013800 3.2x2.5x0.7mm FA-238 27.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014000 3.2x2.5x0.7mm FA-238 48.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014100 3.2x2.5x0.7mm FA-238 32.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014600 3.2x2.5x0.7mm FA-238 26.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014700 3.2x2.5x0.7mm FA-238 26.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380014800 3.2x2.5x0.7mm FA-238 48.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380014900 3.2x2.5x0.7mm FA-238 18.432000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380015600 3.2x2.5x0.7mm FA-238 24.576000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380016500 3.2x2.5x0.7mm FA-238 25.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380017000 3.2x2.5x0.7mm FA-238 20.000000MHz 20pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380017900 3.2x2.5x0.7mm FA-238 16.000000MHz 12.5pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380019000 3.2x2.5x0.7mm FA-238 24.576000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380019800 3.2x2.5x0.7mm FA-238 24.576000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380020500 3.2x2.5x0.7mm FA-238 19.200000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380021600 3.2x2.5x0.7mm FA-238 16.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380047800 3.2x2.5x0.7mm FA-238 25.000000MHz 18pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380048000 3.2x2.5x0.7mm FA-238 27.000000MHz 10pF +/-30ppm +/-30ppm -20to+70°C

Q22FA2380048300 3.2x2.5x0.7mm FA-238 16.000000MHz 10pF +/-20ppm +/-30ppm -40to+85°C
Q22FA2380048900 3.2x2.5x0.7mm FA-238 27.000000MHz 10pF +/-20ppm +/-30ppm -40to+85°C
Q22FA2380054700 3.2x2.5x0.7mm FA-238 25.000000MHz 16pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380055300 3.2x2.5x0.7mm FA-238 30.000000MHz 16pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380057300 3.2x2.5x0.7mm FA-238 48.000000MHz 10pF +/-50ppm +/-50ppm -20to+70°C
Q22FA2380059100 3.2x2.5x0.7mm FA-238 24.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380059400 3.2x2.5x0.7mm FA-238 48.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380059900 3.2x2.5x0.7mm FA-238 27.000000MHz 16pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380060800 3.2x2.5x0.7mm FA-238 48.000000MHz 7pF +/-50ppm +/-50ppm -20to+70°C
Q22FA2380061200 3.2x2.5x0.7mm FA-238 44.000000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380062000 3.2x2.5x0.7mm FA-238 16.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380065300 3.2x2.5x0.7mm FA-238 25.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380066600 3.2x2.5x0.7mm FA-238 18.432000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380067800 3.2x2.5x0.7mm FA-238 25.000000MHz 20pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380068300 3.2x2.5x0.7mm FA-238 24.545454MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380069900 3.2x2.5x0.7mm FA-238 33.330000MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380070200 3.2x2.5x0.7mm FA-238 16.000000MHz 15pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380070600 3.2x2.5x0.7mm FA-238 27.000000MHz 8pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380071600 3.2x2.5x0.7mm FA-238 30.000000MHz 8pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380072900 3.2x2.5x0.7mm FA-238 20.000000MHz 7pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380074500 3.2x2.5x0.7mm FA-238 25.000000MHz 9pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380074700 3.2x2.5x0.7mm FA-238 19.200000MHz 10pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380075200 3.2x2.5x0.7mm FA-238 30.000000MHz 12pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380075300 3.2x2.5x0.7mm FA-238 33.333300MHz 10pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380075500 3.2x2.5x0.7mm FA-238 19.200000MHz 12pF +/-50ppm +/-30ppm -20to+70°C
Q22FA2380075900 3.2x2.5x0.7mm FA-238 27.000000MHz 9pF +/-30ppm +/-30ppm -20to+70°C
Q22FA2380077500 3.2x2.5x0.7mm FA-238 24.000000MHz 8pF +/-50ppm +/-50ppm -20to+70°C
FA-238贴片晶振Q22FA2380014700用于通讯模块应用,Q22FA2380017000,3225mm晶振
小型贴片石英晶振主要采用了,先进的晶片的抛光工艺技术,是晶体行业中石英晶片研磨技术中表面处理的最高技术,最终使晶片表面更光洁,平行度及平面度更好,大大的降低谐振电阻,使精度得到了很大的提升。改变了传统的生产工艺,使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
