首页晶振行业动态 有源晶振X1G005961000715专用于道路交通灯控制器

有源晶振X1G005961000715专用于道路交通灯控制器

来源:http://www.yijindz.com 作者:亿金电子 2022年10月17
爱普生晶振公司1942年成立以来一直活跃在晶振领域,注重自主品牌的建设,掌握自主研制,定制,实现全套的晶振工艺技术流程,拥有石英晶体振荡器技术的自主技术专利和产品线,能够为客户提供全国产化晶振解决方案。

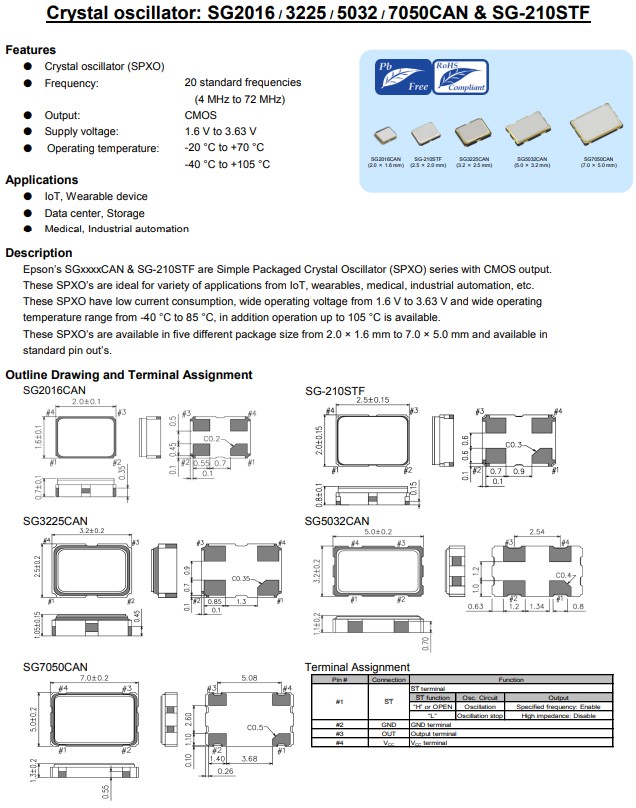

日本爱普生晶振SG3225CAN是一款支持CMOS输出石英晶体振荡器(SPXO)系列,小体积晶振尺寸3.2x2.5mm有源晶振,四脚贴片晶振,具有超小型,轻薄型,低功耗,低电流消耗特点,1.6V至3.63V的宽工作电压和宽工作温度范围从-40℃到+105℃,这些SPXO提供从2.0x1.6mm到7.0x5.0mm的五种不同封装尺寸,并提供标准引脚排列。非常适合物联网、蓝牙模块,便捷式设备,可穿戴设备、医疗、工业自动化等各种应用。

有源晶振X1G005961000715专用于道路交通灯控制器,X1G005961002715,石英晶体振荡器
爱普生晶振 型号 频率 尺寸 输出波 电源电压 工作温度
X1G005961000115 SG3225CAN 24.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000215 SG3225CAN 25.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000315 SG3225CAN 48.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000415 SG3225CAN 8.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000515 SG3225CAN 10.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000615 SG3225CAN 12.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000715 SG3225CAN 20.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000815 SG3225CAN 24.576000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961000915 SG3225CAN 40.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001015 SG3225CAN 50.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001115 SG3225CAN 4.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001215 SG3225CAN 4.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001315 SG3225CAN 8.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001415 SG3225CAN 10.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001515 SG3225CAN 12.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961001615 SG3225CAN 12.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961001715 SG3225CAN 12.288000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961001815 SG3225CAN 12.288000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961001915 SG3225CAN 12.288000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002015 SG3225CAN 14.745600MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961002115 SG3225CAN 14.745600MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002215 SG3225CAN 16.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961002315 SG3225CAN 16.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002415 SG3225CAN 20.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C

X1G005961002515 SG3225CAN 20.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002615 SG3225CAN 24.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961002715 SG3225CAN 24.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002815 SG3225CAN 24.576000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961002915 SG3225CAN 25.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961003015 SG3225CAN 25.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003115 SG3225CAN 26.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003215 SG3225CAN 26.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003315 SG3225CAN 27.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003415 SG3225CAN 27.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003515 SG3225CAN 32.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003615 SG3225CAN 32.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003715 SG3225CAN 33.330000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961003815 SG3225CAN 33.330000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961003915 SG3225CAN 33.333300MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005961004015 SG3225CAN 33.333300MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004115 SG3225CAN 40.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004215 SG3225CAN 48.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961004315 SG3225CAN 48.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004415 SG3225CAN 50.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G005961004515 SG3225CAN 50.000000MHz 3.20x2.50x1.05mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005961004615 SG3225CAN 72.000000MHz 3.20x2.50x1.05mm CMOS 1.710 to 3.630 V -20 to 70 °C
X1G005961004715 SG3225CAN 72.000000MHz 3.20x2.50x1.05mm CMOS 1.710 to 3.630 V -40 to 85 °C
X1G005961004815 SG3225CAN 72.000000MHz 3.20x2.50x1.05mm CMOS 2.250 to 3.630 V -40 to 105 °C
有源晶振X1G005961000715专用于道路交通灯控制器,X1G005961002715,石英晶体振荡器
石英晶体振荡器优点:
1、石英钟走时准、耗电省、经久耐用为其最大优点。不论是老式石英钟或是新式多功能石英钟都是以石英晶体振荡器为核心电路,其频率精度决定了电子钟表的走时精度。
2、随着电视技术的发展,近来彩电多采用500kHz或503kHz的晶体振荡器作为行、场电路的振荡源,经1/3的分频得到15625Hz的行频,其稳定性和可靠性大为提高。而且晶振价格便宜,更换容易。
3、在通信系统产品中,石英晶体振荡器的价值得到了更广泛的体现,同时也得到了更快的发展。许多高性能的石英晶振主要应用于通信网络、无线数据传输、高速数字数据传输等。
