SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统

来源：http://www.yijindz.com 作者：亿金电子 2022年10月14

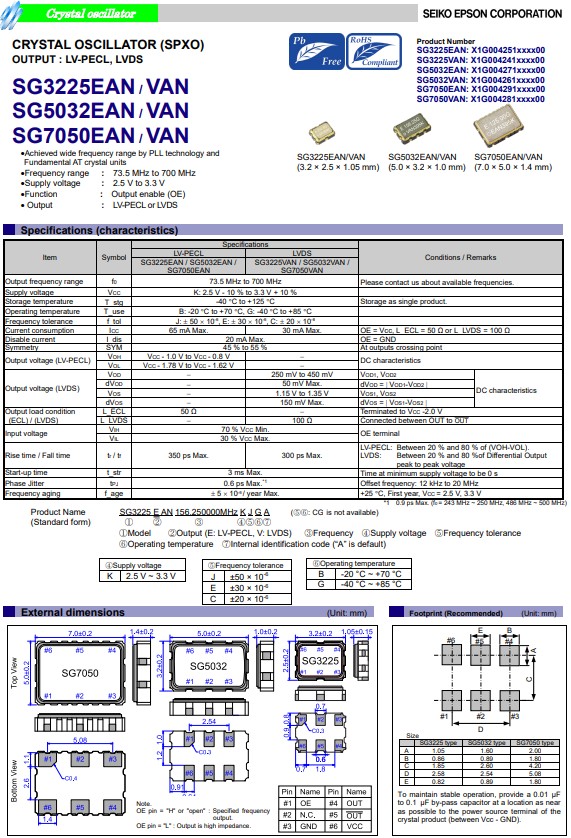

近年来，对小型化、多功能网络设备的需求不断增加，爱普生推出SG3225VAN晶振是一款小体积尺寸3.2x2.5mm晶体振荡器，差分晶振，电源电压为2.5V至3.3V，输出频率73.5MHz至700MHz，具有低电源电压，低功耗，低抖动，低耗能，低损耗，小型化，高稳定性等优点，在手持携带设备、可穿戴式设备以及物联网等网络设备中具有广阔的市场前景，可有效延长设备使用寿命、缩短产品开发周期。目前市场主流差分晶振都是6脚贴片晶振封装，频率比普通晶振相比较高，常用的频率有:74.25MHz,100MHz,125MHz,148.5MHz,150MHz,200MHz等。适用于10GbE、40GbE、100GbE超宽频以太网络，医疗、测试测量、消费电子、工业自动化等领域。
SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统,X1G004241001000,低耗能晶振

产品编码	型号	频率	石英晶振	输出波	电源电压	工作温度
X1G004241000100	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000400	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000500	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000600	SG3225VAN	400.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241000800	SG3225VAN	212.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001000	SG3225VAN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001200	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241001400	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002000	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002300	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002400	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002500	SG3225VAN	400.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002600	SG3225VAN	106.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002800	SG3225VAN	74.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241002900	SG3225VAN	148.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003100	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003200	SG3225VAN	155.520000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003300	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241003400	SG3225VAN	312.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C

X1G004241003900	SG3225VAN	125.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241004200	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241005200	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006100	SG3225VAN	100.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006200	SG3225VAN	200.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006500	SG3225VAN	212.500000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241006900	SG3225VAN	150.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241007100	SG3225VAN	156.250000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241010000	SG3225VAN	133.333333MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241010300	SG3225VAN	250.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241010500	SG3225VAN	80.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241010800	SG3225VAN	297.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241010900	SG3225VAN	133.330000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241011300	SG3225VAN	125.003125MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241011700	SG3225VAN	126.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012000	SG3225VAN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012300	SG3225VAN	90.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241012400	SG3225VAN	135.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012500	SG3225VAN	76.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012600	SG3225VAN	360.000000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C
X1G004241012700	SG3225VAN	644.531250MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241012900	SG3225VAN	322.265625MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-20 to 70°C
X1G004241013000	SG3225VAN	115.200000MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630V	-40 to 85°C

SG3225VAN差分晶振X1G004241002600适用于工业自动化控制系统,X1G004241001000,低耗能晶振
爱普生SG3225VAN晶振结合低抖动PLL技术和内置AT晶体单元，可产生稳定的输出信号；频率偏移误差*低±20ppm，*大相位抖动不超过0.6ps，非常适合对时钟信号完整性有严格要求的系统。考虑元件老化的影响，其频率老化率仅为±5ppm/年，大大提高了元件的使用寿命。SG3225VAN石英晶体振荡器支持LVDS标准差分信号，增强了输出信号的抗干扰能力，可作为标准模块在电路中直接应用。
