SG-210SCBA车载专用晶振X1G004591A02000特别适用于遥控无匙门禁
来源:http://www.yijindz.com 作者:亿金电子 2022年10月09
针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求,爱普生可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。

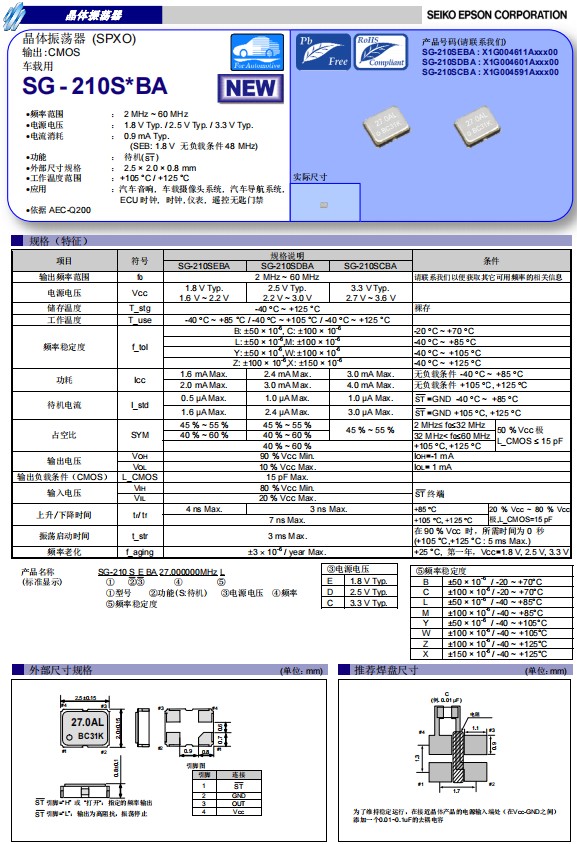

日本爱普生推出车载专用晶振SG-210SCBA,是一款CMOS输出石英晶体振荡器,频率范围:2MHz至60MHz,电源电压(典型值):1.8V/2.5V/3.3V可选,工作温度范围:-40℃至+85℃/+105℃/+125℃,小体积尺寸:2.5x2.0x0.9mm,四脚贴片晶振,紧凑的结构和小体积使产品适用于微空间的电路设计。SG-210SCBA有源晶振具有超小型,轻薄型,耐高温,耐热、耐振、耐冲击等优良的耐环境特性。应用于:汽车音响,车载摄像头系统,汽车导航系统,汽车空调系统,ECU时钟,时钟,仪表,遥控无匙门禁等,符合AEC-Q200标准,是汽车电子应用中的理想选择。
SG-210SCBA车载专用晶振X1G004591A02000特别适用于遥控无匙门禁,X1G004591A08200,有源晶振
SG-210SCBA车载专用晶振X1G004591A02000特别适用于遥控无匙门禁,X1G004591A08200,有源晶振
汽车电子最重要的作用是提高汽车的安全性,舒适性,经济性和娱乐性。用传感器,微处理器MPU,执行器,数十甚至上百个电子元器件及其零部件组成的电控系统。车载晶振,在汽车方面使用到了大大小小的各种石英晶振,各种类型以及封装尺寸,无一不在给各项汽车产品带去性能。我们首先知道的是在使用到汽车上面的贴片晶振都是需要具备高性能,耐高温等各项要求,才能保证能正常发挥性能。
日本爱普生推出车载专用晶振SG-210SCBA,是一款CMOS输出石英晶体振荡器,频率范围:2MHz至60MHz,电源电压(典型值):1.8V/2.5V/3.3V可选,工作温度范围:-40℃至+85℃/+105℃/+125℃,小体积尺寸:2.5x2.0x0.9mm,四脚贴片晶振,紧凑的结构和小体积使产品适用于微空间的电路设计。SG-210SCBA有源晶振具有超小型,轻薄型,耐高温,耐热、耐振、耐冲击等优良的耐环境特性。应用于:汽车音响,车载摄像头系统,汽车导航系统,汽车空调系统,ECU时钟,时钟,仪表,遥控无匙门禁等,符合AEC-Q200标准,是汽车电子应用中的理想选择。
SG-210SCBA车载专用晶振X1G004591A02000特别适用于遥控无匙门禁,X1G004591A08200,有源晶振
产品编码 | 型号 | 频率 | 尺寸 | 输出波 | 电源电压 | 工作温度 |
X1G004591A00100 | SG-210SCBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A00200 | SG-210SCBA | 49.090000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A00300 | SG-210SCBA | 40.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A00400 | SG-210SCBA | 8.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A00600 | SG-210SCBA | 37.007000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A00700 | SG-210SCBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A00900 | SG-210SCBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A01000 | SG-210SCBA | 33.333000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A01300 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A01700 | SG-210SCBA | 4.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A02000 | SG-210SCBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A02100 | SG-210SCBA | 33.333300MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A02300 | SG-210SCBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A02400 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A02500 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A02700 | SG-210SCBA | 33.300000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A02800 | SG-210SCBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A03100 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A03300 | SG-210SCBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A03600 | SG-210SCBA | 33.333300MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A03700 | SG-210SCBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A03800 | SG-210SCBA | 37.007000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A04000 | SG-210SCBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A04100 | SG-210SCBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A04900 | SG-210SCBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A05000 | SG-210SCBA | 22.579200MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A05100 | SG-210SCBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A05200 | SG-210SCBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A05800 | SG-210SCBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A05900 | SG-210SCBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A06700 | SG-210SCBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A06800 | SG-210SCBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A07200 | SG-210SCBA | 8.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A07300 | SG-210SCBA | 30.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A07700 | SG-210SCBA | 7.904000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A07800 | SG-210SCBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A08100 | SG-210SCBA | 40.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A08200 | SG-210SCBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A08400 | SG-210SCBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A08500 | SG-210SCBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A08600 | SG-210SCBA | 19.200000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A08700 | SG-210SCBA | 12.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A08800 | SG-210SCBA | 45.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A08900 | SG-210SCBA | 40.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A09000 | SG-210SCBA | 13.333000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A09100 | SG-210SCBA | 11.289600MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A09200 | SG-210SCBA | 12.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A09400 | SG-210SCBA | 6.780000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A09500 | SG-210SCBA | 24.545452MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A09700 | SG-210SCBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A09800 | SG-210SCBA | 11.250000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A09900 | SG-210SCBA | 12.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A10000 | SG-210SCBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A10100 | SG-210SCBA | 33.330000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A10200 | SG-210SCBA | 10.240000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A10400 | SG-210SCBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A10500 | SG-210SCBA | 33.333000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A10600 | SG-210SCBA | 11.289600MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A10900 | SG-210SCBA | 6.144000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 85°C |
X1G004591A11000 | SG-210SCBA | 3.579000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A11100 | SG-210SCBA | 49.500000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A11400 | SG-210SCBA | 26.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A11500 | SG-210SCBA | 33.330000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
X1G004591A11800 | SG-210SCBA | 6.144000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 105°C |
X1G004591A11900 | SG-210SCBA | 4.000000MHz | 2.50x2.00x0.90mm | CMOS | 2.700 to 3.600V | -40 to 125°C |
汽车电子最重要的作用是提高汽车的安全性,舒适性,经济性和娱乐性。用传感器,微处理器MPU,执行器,数十甚至上百个电子元器件及其零部件组成的电控系统。车载晶振,在汽车方面使用到了大大小小的各种石英晶振,各种类型以及封装尺寸,无一不在给各项汽车产品带去性能。我们首先知道的是在使用到汽车上面的贴片晶振都是需要具备高性能,耐高温等各项要求,才能保证能正常发挥性能。
