X1E000251015300特别适用于小型化要求的电子数码产品
来源:http://www.yijindz.com 作者:亿金电子 2022年10月08
随着高科技产品的随身携带且使用方便让电路板中的各路元器件都使出浑身解数,力求越来越小的同时还要越来越精密,因此小型化的贴片尺寸成了很多厂家的需要考虑条件。

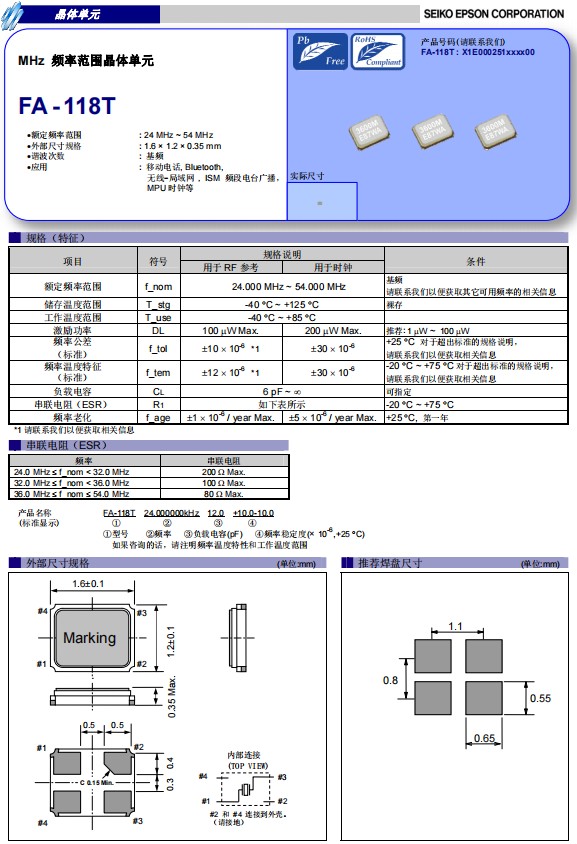

超小型1612mm贴片晶振FA-118T是目前爱普生石英晶体谐振器MHz级别外部尺寸最小的一款无源晶振,因此晶振本体上没有印字,而是空白的,频率范围:24MHz至54MHz,四脚贴片晶振,工作温度范围-40℃至+85℃,FA-118T晶振体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域。因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动电话,移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求。
X1E000251015300特别适用于小型化要求的电子数码产品,X1E000251021500,无源晶振
X1E000251015300特别适用于小型化要求的电子数码产品,X1E000251021500,无源晶振
1612mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品.
超小型1612mm贴片晶振FA-118T是目前爱普生石英晶体谐振器MHz级别外部尺寸最小的一款无源晶振,因此晶振本体上没有印字,而是空白的,频率范围:24MHz至54MHz,四脚贴片晶振,工作温度范围-40℃至+85℃,FA-118T晶振体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域。因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动电话,移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求。
X1E000251015300特别适用于小型化要求的电子数码产品,X1E000251021500,无源晶振
产品编码 | 石英晶振 | 型号 | 频率 | 负载电容 | 频率 | 频率公差 | 工作温度 |
X1E000251000900 | 1.6x1.2x0.35mm | FA-118T | 27.120000MHz | 10pF | +/-30ppm | +/-50ppm | -20to+75°C |
X1E000251001100 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251001400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
X1E000251001600 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+85°C |
X1E000251003100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-7ppm | +/-10ppm | -30to+85°C |
X1E000251003200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251003300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251003400 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251003500 | 1.6x1.2x0.35mm | FA-118T | 30.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
X1E000251004600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251005000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
X1E000251005600 | 1.6x1.2x0.35mm | FA-118T | 52.000000MHz | 9pF | +/-15ppm | +/-12ppm | -20to+75°C |
X1E000251005700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251005900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251006000 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251006400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+75°C |
X1E000251006500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-12ppm | -20to+75°C |
X1E000251006800 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251006900 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251007100 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-8ppm | +/-10ppm | -30to+85°C |
X1E000251007500 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
X1E000251007700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251007800 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251007900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251008000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-12ppm | -20to+75°C |
X1E000251008600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
X1E000251009900 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251010200 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+85°C |
X1E000251010400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
X1E000251011100 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
X1E000251011300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 8pF | +/-10ppm | +/-15ppm | -30to+85°C |
X1E000251012100 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
X1E000251012600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251013400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-12ppm | -20to+85°C |
X1E000251013800 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-15ppm | -20to+70°C |
X1E000251014100 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -40to+85°C |
X1E000251014400 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251015000 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 20pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251015200 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
X1E000251015300 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
X1E000251015500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
X1E000251015800 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 12pF | +/-10ppm | +/-15ppm | -40to+85°C |
X1E000251016100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
X1E000251016600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -30to+85°C |
X1E000251019000 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-10ppm | +/-10ppm | -30to+85°C |
X1E000251019700 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
X1E000251020100 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
X1E000251021200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 6pF | +/-10ppm | +/-20ppm | -40to+85°C |
X1E000251021500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-20ppm | +/-20ppm | -40to+85°C |
X1E000251021900 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
1612mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接(产品无铅对应),为无铅产品.
