3225mm石英晶体谐振器Q22FA2380026400特别适用于小型便捷式移动通讯
来源:http://www.yijindz.com 作者:亿金电子 2022年09月30
石英晶体谐振器,简称石英晶体或晶振,是利用石英晶体(又称水晶)的压电效应,用来产生高精度振荡频率的一种电子元件,属于被动元件。该元件主要由石英晶片、基座、外壳、银胶、银等成分组成。

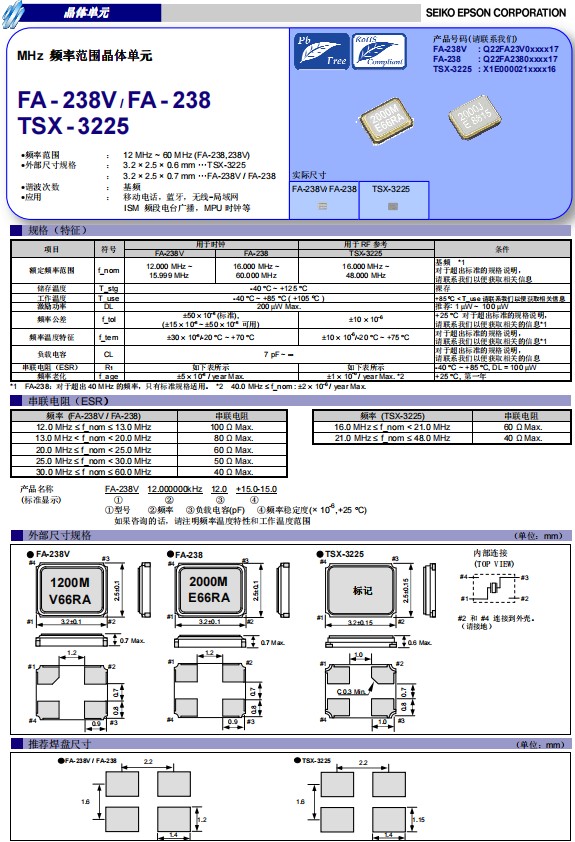

爱普生晶振FA-238是一款小体积尺寸3.2x2.5mm无源晶振,石英晶体谐振器,四脚贴片晶振,频率范围16MHz至60MHz,工作温度-40℃至+85℃(+105℃),具有超小型,轻薄型,耐热及耐环境特点,特别适用于小型便捷式移动通讯,可穿戴设备,智能手机,平板电脑,便捷式电子仪器,汽车电子,智能家居等。
3225mm石英晶体谐振器Q22FA2380026400特别适用于小型便捷式移动通讯,Q22FA2380042100,无源晶振
3225mm石英晶体谐振器Q22FA2380026400特别适用于小型便捷式移动通讯,Q22FA2380042100,无源晶振
精工爱普生公司是国际贴片晶体振荡器、谐振器制造商;爱普生晶振以32.768KHZ晶振称霸晶振行业。主要消费在手机,PCB等电子产品。同时爱普生以提供原子钟的精准振荡器知名业界。在kHZ、MHz音叉晶体谐振器和贴片晶振常规领域中非常有优势。
爱普生晶振FA-238是一款小体积尺寸3.2x2.5mm无源晶振,石英晶体谐振器,四脚贴片晶振,频率范围16MHz至60MHz,工作温度-40℃至+85℃(+105℃),具有超小型,轻薄型,耐热及耐环境特点,特别适用于小型便捷式移动通讯,可穿戴设备,智能手机,平板电脑,便捷式电子仪器,汽车电子,智能家居等。
3225mm石英晶体谐振器Q22FA2380026400特别适用于小型便捷式移动通讯,Q22FA2380042100,无源晶振
产品编码 | 贴片晶振 | 型号 | 频率 | 负载电容 | 精度 | 频率公差 | 工作温度 |
Q22FA2380000100 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380000200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380001100 | 3.2x2.5x0.7mm | FA-238 | 16.934400MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380001300 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380002200 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380002800 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380003500 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380004100 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380004400 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380004700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380004800 | 3.2x2.5x0.7mm | FA-238 | 49.152000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380006300 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380006500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380007500 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380007600 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380007800 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380007900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380008500 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380008800 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 12pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380008900 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380009100 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380009200 | 3.2x2.5x0.7mm | FA-238 | 25.000000MHz | 20pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380009300 | 3.2x2.5x0.7mm | FA-238 | 18.432000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380023800 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380024000 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 30pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380024400 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380024500 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 30pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380025100 | 3.2x2.5x0.7mm | FA-238 | 36.864000MHz | 8pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380026300 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 9pF | +/-15ppm | +/-30ppm | -20to+70°C |
Q22FA2380026400 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380026900 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 9pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380029100 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380030500 | 3.2x2.5x0.7mm | FA-238 | 24.576000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380031200 | 3.2x2.5x0.7mm | FA-238 | 28.636360MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380032200 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 12.5pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380032900 | 3.2x2.5x0.7mm | FA-238 | 32.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380033800 | 3.2x2.5x0.7mm | FA-238 | 24.000000MHz | 18pF | +/-15ppm | +/-30ppm | -20to+70°C |
Q22FA2380035000 | 3.2x2.5x0.7mm | FA-238 | 20.000000MHz | 16pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380035300 | 3.2x2.5x0.7mm | FA-238 | 33.330000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380035500 | 3.2x2.5x0.7mm | FA-238 | 27.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380035600 | 3.2x2.5x0.7mm | FA-238 | 45.000000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380036400 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380036700 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380040500 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 10pF | +/-50ppm | +/-50ppm | -20to+70°C |
Q22FA2380041500 | 3.2x2.5x0.7mm | FA-238 | 27.120000MHz | 12pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380041900 | 3.2x2.5x0.7mm | FA-238 | 40.000000MHz | 7pF | +/-50ppm | +/-50ppm | -20to+70°C |
Q22FA2380042100 | 3.2x2.5x0.7mm | FA-238 | 16.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380042300 | 3.2x2.5x0.7mm | FA-238 | 30.000000MHz | 18pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380043200 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380044700 | 3.2x2.5x0.7mm | FA-238 | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+70°C |
Q22FA2380044800 | 3.2x2.5x0.7mm | FA-238 | 50.000000MHz | 7pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380045800 | 3.2x2.5x0.7mm | FA-238 | 16.384000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
Q22FA2380046400 | 3.2x2.5x0.7mm | FA-238 | 33.333000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+70°C |
精工爱普生公司是国际贴片晶体振荡器、谐振器制造商;爱普生晶振以32.768KHZ晶振称霸晶振行业。主要消费在手机,PCB等电子产品。同时爱普生以提供原子钟的精准振荡器知名业界。在kHZ、MHz音叉晶体谐振器和贴片晶振常规领域中非常有优势。
