SG2016CAN有源晶振X1G004801005800非常适合5G前传光模块应用

来源:http://www.yijindz.com 作者:亿金电子 2022年09月29

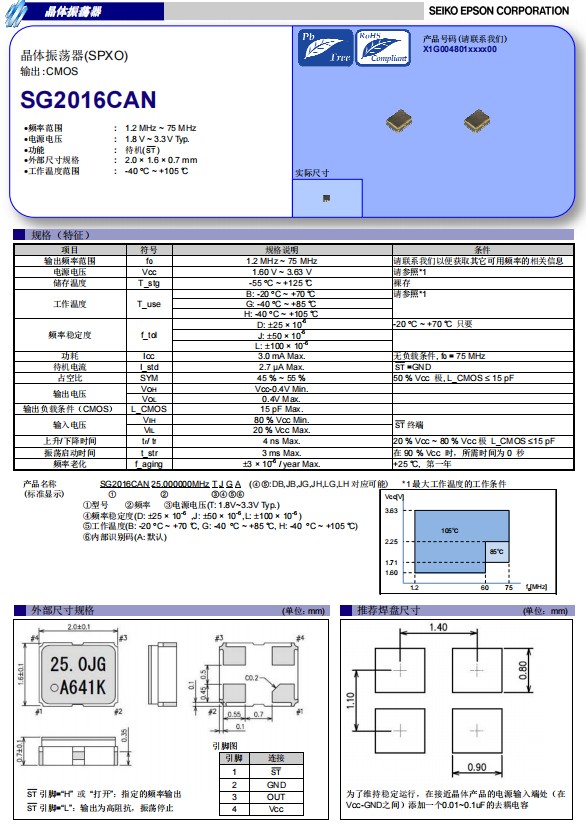

日本爱普生晶振SG2016CAN,是一款小体积晶振尺寸2.0x1.6mm石英晶体振荡器(SPXO),支持CMOS输出电平,四脚贴片晶振,有源晶振,1.8V至3.3V的宽工作电压和宽工作温度范围从-40℃到+85℃(+105℃)。 SG2016CAN有源晶振还具有超低功耗的优点。响应时间仅为3ms,上升/下降延迟时间为4ns。在工作频率为20MHz,无负载情况时,工作电流可达1.8mA,待机状态下的电流可达2.7μA。所以,在5G前传光模块方案中,如果需要MCU主频更稳定,外置高温、稳定性好的5G晶振时,EPSON公司推出的SG2016CAN晶振是较理想的选择。常用有源晶振型号SG2016CAN编码X1G004801005800,频率20.000MHz,工作温度-40℃至85℃.具有超小型,轻薄型,低抖动,低功耗,低损耗,低耗能,低电流消耗等特点,非常适合5G模块,物联网、可穿戴设备、医疗设备、工业自动化等各种应用。
SG2016CAN有源晶振X1G004801005800非常适合5G前传光模块应用,X1G004801006800,低功耗晶振

产品编码 型号 频率 爱普生晶振 输出波 电源电压 工作温度
X1G004801000200 SG2016CAN 24.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801000300 SG2016CAN 26.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801000700 SG2016CAN 12.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801001200 SG2016CAN 25.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801001300 SG2016CAN 50.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801001400 SG2016CAN 16.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801001800 SG2016CAN 20.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801002000 SG2016CAN 48.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801002100 SG2016CAN 27.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801002400 SG2016CAN 25.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801002600 SG2016CAN 33.333300MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801002700 SG2016CAN 10.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801002800 SG2016CAN 50.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801002900 SG2016CAN 10.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801003000 SG2016CAN 4.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801003100 SG2016CAN 24.576000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801003500 SG2016CAN 25.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801003600 SG2016CAN 40.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801003900 SG2016CAN 26.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801004000 SG2016CAN 24.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801004400 SG2016CAN 12.288000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801004500 SG2016CAN 8.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801004600 SG2016CAN 8.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801004900 SG2016CAN 4.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801005000 SG2016CAN 12.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801005100 SG2016CAN 12.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801005200 SG2016CAN 12.288000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801005300 SG2016CAN 12.288000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C

X1G004801005400 SG2016CAN 14.745600MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801005500 SG2016CAN 14.745600MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801005600 SG2016CAN 16.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801005700 SG2016CAN 20.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801005800 SG2016CAN 20.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801005900 SG2016CAN 24.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801006000 SG2016CAN 24.576000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801006100 SG2016CAN 27.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801006200 SG2016CAN 32.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801006300 SG2016CAN 32.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801006400 SG2016CAN 33.330000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801006500 SG2016CAN 33.330000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801006600 SG2016CAN 33.333300MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801006700 SG2016CAN 40.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 85°C
X1G004801006800 SG2016CAN 48.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801006900 SG2016CAN 48.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G004801007000 SG2016CAN 50.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801007100 SG2016CAN 72.000000MHz 2.00x1.60x0.70mm CMOS 1.710 to 3.630V -20 to 70°C
X1G004801007200 SG2016CAN 72.000000MHz 2.00x1.60x0.70mm CMOS 1.710 to 3.630V -40 to 85°C
X1G004801007300 SG2016CAN 72.000000MHz 2.00x1.60x0.70mm CMOS 2.250 to 3.630V -40 to 105°C
X1G004801007600 SG2016CAN 32.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
X1G004801007700 SG2016CAN 26.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -20 to 70°C
SG2016CAN有源晶振X1G004801005800非常适合5G前传光模块应用,X1G004801006800,低功耗晶振
晶振的功能是为系统提供基本的时钟信号,通常一个系统共用一个晶振,便于各部分保持同步。有些通讯系统的基频和射频使用不同的晶振,不同的规格封装延伸很多的频点等不同的参数,而通过电子调整频率的方法保持同步,在我们日常生活中也离不开晶振。
