SG-210SEBA车载晶振X1G004611A00100是汽车电子应用中的理想选择

来源：http://www.yijindz.com 作者：亿金电子 2022年09月28

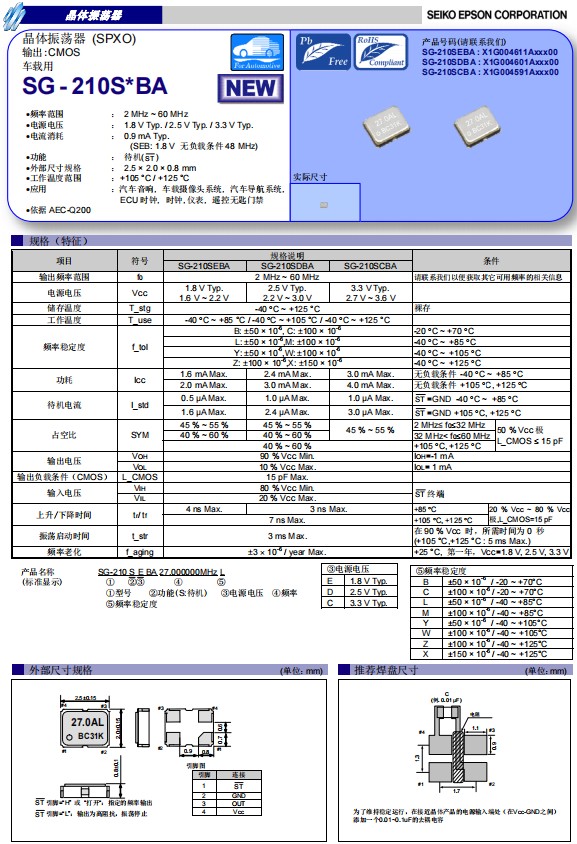

爱普生晶振推出车载电子专用晶振SG-210SEBA，是一款CMOS输出石英晶体振荡器(SPXO)，小体积晶振尺寸2.5x2.0mm四脚贴片晶振，有源晶振，电源电压1.8V至3.3V，频率范围2MHz至60MHz，宽工作温度可达到-40℃至+85℃/+105℃/+125℃，该产品具有超小型，轻薄型，低抖动，低功耗，耐高温，耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。SG-210SEBA有源晶振非常适用于汽车电子应用，汽车音响控制器，车载摄像头系统，汽车导航系统，时钟，仪表等。是汽车电子应用中的理想选择。
SG-210SEBA车载晶振X1G004611A00100是汽车电子应用中的理想选择,X1G004611A03400,耐高温晶振

产品编码	型号	频率	贴片晶振	输出波	电源电压	工作温度
X1G004611A00100	SG-210SEBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A00300	SG-210SEBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A00400	SG-210SEBA	20.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A00500	SG-210SEBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01200	SG-210SEBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01300	SG-210SEBA	33.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A01400	SG-210SEBA	16.666600MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A01600	SG-210SEBA	14.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01700	SG-210SEBA	37.125000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01900	SG-210SEBA	13.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A02000	SG-210SEBA	10.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02100	SG-210SEBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A02200	SG-210SEBA	16.660000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02400	SG-210SEBA	14.745600MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02500	SG-210SEBA	16.640000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02600	SG-210SEBA	24.576000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02700	SG-210SEBA	12.288000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C

X1G004611A02800	SG-210SEBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03000	SG-210SEBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A03100	SG-210SEBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A03300	SG-210SEBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A03400	SG-210SEBA	20.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03500	SG-210SEBA	41.250000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03600	SG-210SEBA	16.640000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03700	SG-210SEBA	16.510000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03800	SG-210SEBA	9.600000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04100	SG-210SEBA	16.666600MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04200	SG-210SEBA	33.300000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04300	SG-210SEBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A04400	SG-210SEBA	33.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04500	SG-210SEBA	49.500000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C

SG-210SEBA车载晶振X1G004611A00100是汽车电子应用中的理想选择,X1G004611A03400,耐高温晶振
针对各种车载电子设备对石英晶振在高温、抗振动等方面的更高要求，爱普生可以提供全面的符合AEC-Q200/100技术标准的汽车用车规晶振。
汽车的应用场景包括导航、远程呼叫、紧急救援、防盗跟踪、道路救援、电话、资讯娱乐、下载应用，自动驾驶等等，为了实现人与汽车系统自由的交互，并提供实时的信息互动、支付、交通、天气等功能，汽车对车规级晶振的依赖只会越来越强。
